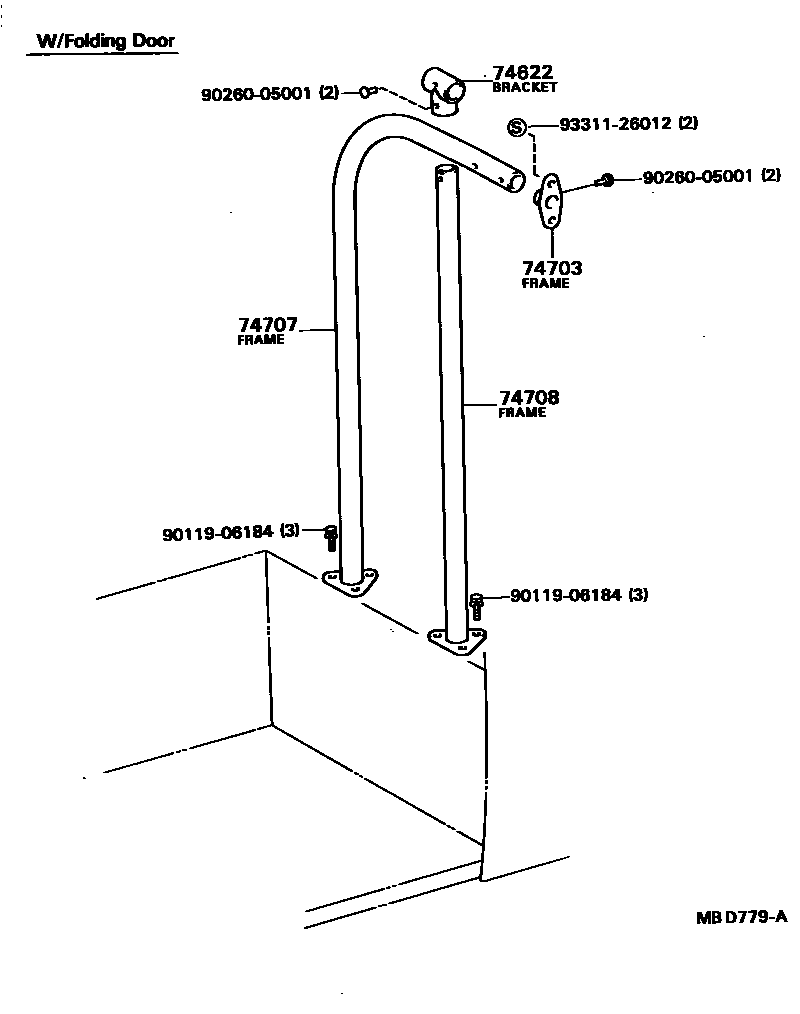

Toyota COASTER — PROTECTOR PIPE, ROLL BAR & HANDRAIL

74622BRACKET, HAND GRIP

main74622-90500i198205-198710

main74622-90500i198206-198304

W/FOLDING DOOR

main74622-90500i198405-198510

HONG KONG SPEC

main74826-90B00i198710-199301

74703FRAME SUB-ASSY, HAND GRIP SIDE

main74703-90B00i198205-199301

main74703-90B00i198405-198510

HONG KONG SPEC

main74703-90B00i198206-199301

W/FOLDING DOOR

74707FRAME SUB-ASSY, HAND GRIP, NO.1

main74707-90B00i198206-198304

W/FOLDING DOOR

main74707-90B00i198205-198304

main74707-90B01i198205-199301

main74707-90B03i198205-199301

W/GLIDE DOOR

main74707-90B03i199001-199301

main74707-90B09i199001-199301

74708FRAME SUB-ASSY, HAND GRIP, NO.2

main74708-90B00i198205-198304

main74708-90B00i198206-198304

W/FOLDING DOOR

main74708-90B02i198205-199301

W/GLIDE DOOR

main74708-90B05i199012-199301

HONG KONG PACKAGE 2 & W/GLIDING TYPE CENTER DOOR;HONG KONG PACKAGE 3 & W/GLIDING TYPE CENTER DOOR

main74708-90B05i199105-199301

9011906184

main90119-06184

9026005001

main90260-05001

9331126012

main93311-26012

7 parts on this diagram · 5 diagrams in section

PROTECTOR PIPE, ROLL BAR & HANDRAIL for Toyota COASTER

This section contains 22 genuine Toyota parts for the PROTECTOR PIPE, ROLL BAR & HANDRAIL system of the Toyota COASTER. Key components include: FRAME SUB-ASSY, HAND GRIP, FRONT, BRACKET, HAND GRIP, FRAME SUB-ASSY, HAND GRIP SIDE, NET SUB-ASSY, HAND GRIP PROTECTOR, FRAME SUB-ASSY, HAND GRIP, NO.1.
