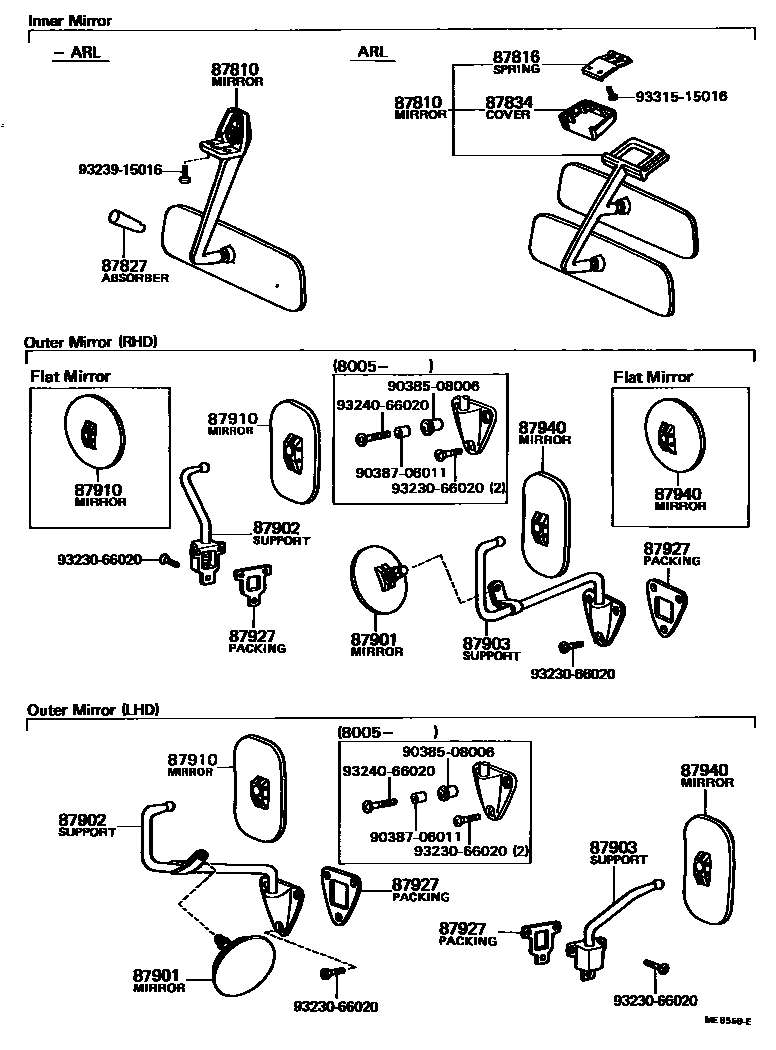

Toyota COASTER — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
L=57.5
L=58.5
L=62
L=65.5
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901MIRROR SUB-ASSY, OUTER UNDER VIEW
87902SUPPORT, REAR VIEW OUTSIDE MIRROR, RH
87903SUPPORT, REAR VIEW OUTSIDE MIRROR, LH
FLAT MIRROR
FLAT MIRROR
87910MIRROR ASSY, OUTER REAR VIEW, RH
FLAT MIRROR
87927PACKING, REAR VIEW OUTSIDE MIRROR STAY
RH
LH
LH
RH
LH
RH
LH
RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
FLAT MIRROR
9038508006
main90385-08006
9038706011
main90387-06011
9323066020
main93230-66020
9323915016
main93239-15016
9324066020
main93240-66020
9331515016
main93315-15016
16 parts on this diagram · 1 diagram in section
MIRROR for Toyota COASTER
This section contains 16 genuine Toyota parts for the MIRROR system of the Toyota COASTER. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER UNDER VIEW.
