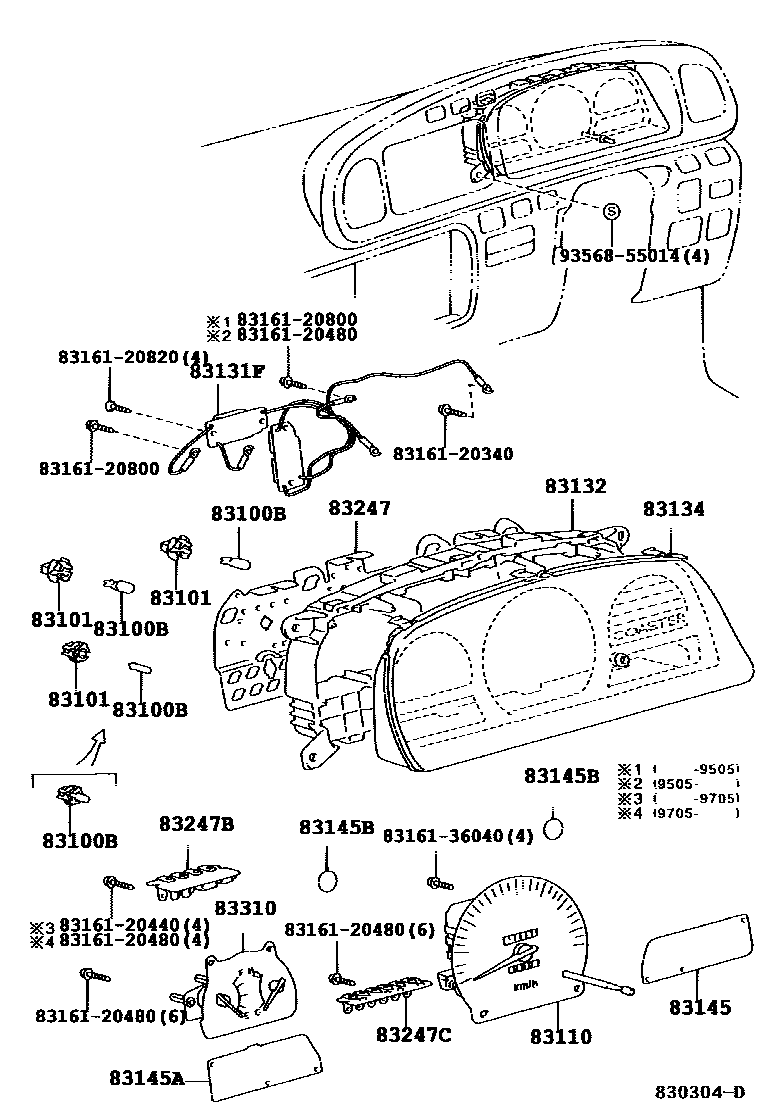

Toyota COASTER — METER

0001 1W/0(TACHOMETER) 0002 1W(TACHOMETER) 0003 1 0004 1CLOCK & SPEED SENSOR 0005 1TACHOGRAPH ASSY

83100METER ASSY, COMBINATION

main83800-36760iTRB50..GCC201209-201501

W(ABS)

main83800-36A00iBB42..GCC200908-201208

main83800-36A01iBB42..GCC201501

main83800-36A10iHZB50..GCC200908-201209

main83800-36A11iHZB50..GCC201501

main83800-36A20iTRB40,50..GCC200908-201208

main83800-36A21iTRB40,50..GCC201209-201501

main83800-36A30iHZB50..LHD..HRF..WC..GEN200908-201209

NIGERIA SPEC,24V

main83800-36A40iTRB40,50..GEN200908-201209

NIGERIA SPEC

main83800-36A50iHZB50..LHD..HRF..WC..GEN200908-201209

main83800-36A51iHZB50..LHD..GEN201501

W(ABS),24V

main83800-36A60iBB42..LHD..HRF200908-201108

24V

main83800-36A61iBB42,HZB50..GEN201501

24V

main83800-36A70iBB42..LHD..HRF200908-201108

W(WIDE WATER TEMPERATURE METER),24V

main83800-36A71iBB42,HZB50..GEN201209-201501

W(WIDE WATER TEMPERATURE METER),24V

main83800-36A80iBB42,HZB50..RHD;HZB50..SRF..WOC200908-201209

SPEEDOMETER = MILE(MAIN) & KM,24V

main83800-36A81iBB42,HZB50..RHD201501

SPEEDOMETER = MILE(MAIN) & KM,24V

main83800-36A90iBB42,HZB50..WOC200908-201209

12V

main83800-36A91iBB42,HZB50..WOC201209-201501

12V

main83800-36B00iBB42,HZB50..WOC200908-201209

W(WIDE WATER TEMPERATURE METER),12V

main83800-36B01iBB42,HZB50..WOC201501

W(WIDE WATER TEMPERATURE METER),12V

main83800-36B10iBB42..RHD..WOC;HZB50..SRF..WOC200908-201209

SPEEDOMETER = MILE(MAIN) & KM,12V

main83800-36B20iTRB40,50..GEN200908-201208

main83800-36B21iTRB40,50..GEN201501

main83800-36B30iTRB40,50..GEN200908-201208

W(WIDE WATER TEMPERATURE METER)

main83800-36B31iTRB40,50..GEN201501

W(WIDE WATER TEMPERATURE METER)

main83800-36B40iBB50200908-201208

main83800-36B41iBB50201209-201501

main83800-36B50iBB50200908-201208

W(WIDE WATER TEMPERATURE METER)

main83800-36B51iBB50201209-201501

W(WIDE WATER TEMPERATURE METER)

main83800-36B60iBZB40,50200908-201108

main83800-36B61iBZB40,50201108-201208

main83800-36B62iBZB40,50201209-201501

main83800-36B70iXZB40,5#..GEN200908-201108

main83800-36B80iXZB50..TAIW200908-201108

main83800-36B81iXZB40,5#..GEN,TAIW201108-201208

main83800-36B82iXZB40,59..HRF;XZB50..(20S,21S)..(GEN,TAIW)201501

W(ABS)

main83800-36B90iXZB50..ARL200908-201208

main83800-36B91iXZB50..ARL201501

main83800-36C00iXZB50..RHD..IV200908-201311

IRELAND SPEC

main83800-36C10iXZB50..RHD..IV200908-201311

main83800-36C20iHZB50..LHD..GEN201209-201501

W(ABS & WIDE WATER TEMPERATURE METER)

main83800-36C30iHZB50..GCC201209-201501

W(ABS)

main83800-36C40iXZB40,50..LHD..GEN201501

83100BBULB, COMBINATION METER, NO.1

main83119-36020iBB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC..GEN;BB50..STD..GEN..CBU..5F..TD;BB42,HZB50..HRF..(26S,30S)..WC.199907-200408

24V 3.0W GREEN CAP

main83119-36040iHZB50..GCC;BB42..GCC,GEN199301-199505

24V 1.8W

main83119-36060iHZB50..WOC200408-200708

12V 3.0W GREEN CAP

main83119-36080iRZB40,50;BB42..WOC199301-199505

12V 2.0W

main83120-36010×11iBB58,59;BB50..5F..TDEFI200408-200608

24V 1.4W,W(SOCKET)

main83120-60020iHZB50..WOC200708-200908

12V 1.4W,W(SOCKET)

main90010-06007iRZB40..WOC..GEN;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)199907-200408

12V 3.4W,W(SOCKET)

main90010-06008×2iBB58,59;BB50..5F..TDEFI200408-200608

24V 3.0W,W(SOCKET)

main90010-06009iBB50..IV..6F199907-200105

24V3.0W,W(GREEN CAP)

main90010-06011iRZB40..WOC..GEN;BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)199907-200408

12V3.4W,W(GREEN CAP)

main90010-06060iXZB50..IV200809-200908

RED

main90010-06061iXZB50..IV200809-200908

BLUE

main90010-06062iTRB40,50200708-200908

YELLOW

main90981-11018iBB42,HZB50..WOC200408-200908

12V 1.2W W/O SOCKET

main90981-11022iBB4#,5#,HZB50,RZB40,50199301-199907

24V 1.4W

main99132-12034iHZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB42..SRF..WOC..GEN199907-200408

12V 3.4W

main99134-12030iBB42;HZB50..GEN200408-200708

24V 3W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iHZB50..WOC200408-200708

BULB:1.4W

main83101-20040iHZB50..WOC200408-200708

BULB:3.0W OR 3.4W

main83101-89101iBB4#,50,HZB50199301-199705

LARGE TYPE(3.0W)

main83101-95020iHZB50..ARL199907-200211

SMALL TYPE(24V 1.2W OR 1.4W OR 1.8W)

83110SPEEDOMETER ASSY

main83110-36320iHZB50..GEN199301-199505

MILE/KM

main83110-36350iHZB50..LHD..TD199301-199605

main83110-36400iBB40199301-199311

main83110-36410iHZB50..ARL,GEN,SCO199311-199505

main83110-36440iBB42,RZB40,50199301-199311

main83110-36450iBB42,RZB40,50..GEN199301-199505

MILE/KM

main83110-36460iHZB50..20S,30S199301-199311

main83110-36470iHZB50..RHD..TD199301-199605

main83220-36010iBZB40,50200108-200401

main83220-36030iBB50..WOC..5F;BB50..EX..GEN;BB42..RHD..HRF..WOC;BB4#,RZB40..(17S,22S)..GEN199907-200108

main83220-36031iBB58,59;BZB50..EX;BB50..RHD..CBU200408-200608

main83220-36040iHZB50..ARL,GEN,SCO199505-199705

main83220-36050iBB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199907-200408

WIDE RANGE WATER TEMPERATURE GAUGE

main83220-36060iBB42..RHD..GEN199505-199907

MILE/KM

main83220-36070iHZB50..RHD..GEN..5F199505-199705

MILE/KM

main83220-36080iHZB50..GCC199505-199705

main83220-36090iBB50,RZB40,50..CHI199907-200211

main83220-36100iBB50..RHD..IV199605-199907

MILE/KM

main83220-36101iBB42..RHD200708-200908

MILE/KM

main83220-36140iHZB50..ARL199907-200211

main83220-36150iHZB50..SRF..WOC;HZB50..RHD..HRF..STD..WC..GEN..5F199907-200408

MILE/KM

main83220-36160iHZB50..SRF..WOC;HZB50..LHD..STD..WC199907-200408

CHINA SPEC OR RUSSIA SPEC

main83220-36170iBB42,50200708-200908

main83220-36180iXZB50..ARL200804-200908

main83220-36190iHZB50200708-200908

main83220-36200iHZB50..RHD;HZB50..SRF..WOC200708-200908

MILE/KM

main83220-36210iXZB50..RHD..IV200809-200908

IRELAND SPEC

main83220-36220iXZB50..RHD..IV200809-200908

83131FDROPER ASSY, METER

main83131-36100iBB50,HZB50..ARL,CHI199907-200211

main83131-36140iBB42..22S;BB42..WOC..GCC;HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

83132CASE, COMBINATION METER

main83132-36020iBB42,50,HZB50..DSL,TD200408-200708

main83841-36420iBB50..WOC..TD200108-200408

W(WIDE WATER TEMPERATURE METER)

main83841-36812iXZB50..IV200809-200908

83134COVER, COMBINATION METER, NO.1

main83134-36040iBB42,RZB40,50;HZB50..GEN,SCO199301-199705

main83134-36080iHZB50..GCC;BB5#,XZB40,5#200408-200908

main83821-36110iHZB50..GEN;BB42,RZB40,50,TRB40,50200408-200908

main83821-36850iBB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#200908-201501

83145LENS, METER, NO.1

main83145-36040iBB42..GEN199301-199505

WIDE RANGE GAUGE

main83145-36060iHZB50..GCC..4FC199301-199505

main83145-36080iBB40,HZB50..ARL199301-199505

main83145-36100iRZB40,50..GEN199309-199505

main83145-36120iRZB40,50..GCC199309-199505

WIDE RANGE GAUGE

main83145-36140iHZB50..GEN,SCO199301-199505

24V

main83145-36160iHZB50..TD199301-199605

main83145-36480iBB42..GEN,SCO;HZB50..RHD..SRF;HZB50..WOC..GEN199301-199505

12V

main83145-36570iHZB50..ARL199907-200211

MARK 9

main83145-36580iBB40,HZB50..ARL199505-199705

main83145-36590iRZB40,50199505-199907

main83831-36040iBB50..EUR199605-199907

main83831-36420iBB50,RZB40,50..CHI199907-200211

main83831-36780iXZB5#200608-200708

main83832-36672iBB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#200708-200908

83145ALENS, METER, NO.2

main83145-36320iBB50..ARL200408-200608

main83145-36340iBB40199301-199505

main83145-36360iHZB50..ARL199301-199505

main83145-36380iRZB40,50199309-199505

main83145-36400iBB42199301-199505

main83145-36420iHZB50..GEN,SCO;HZB50..GCC..4FC199301-199505

24V

main83145-36440iHZB50..TD199301-199605

main83145-36460iHZB50..GCC..5F;HZB50..WOC..GEN;HZB50..RHD..SRF199301-199505

12V

main83145-36500iBB50,RZB40,50..CHI199907-200211

MARK 15

main83145-36520iBB40,HZB50..ARL199505-199907

main83145-36540iBB58,59;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB42,50..HRF..(17S,20S,26S)..WC..(DSL,TDEFI)199907-200408

main83145-36560iBB42..WC..GCC;BB42..SRF..GEN;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC199907-200408

WATER GAGE;WIDE RANGE

main83831-36161iBB42,BZB40,50,HZB50,XZB40,5#200708-200908

main83831-36270iBZB40,50200609-200708

main83831-36650iBB50..ARL200401-200408

main83831-36670iXZB5#200608-200708

main83831-36672iTRB40,50200708-200908

main83831-36701iBB50200708-200908

83145BLENS, METER, NO.3

main83145-89245×2iBB50..ARL200401-200408

main83145-89320×2iBB50..WOC..5F;BB50..CBU..6F199907-200108

83247PLATE, METER CIRCUIT

main83247-36080iBB40199301-199505

main83247-36100iHZB50..ARL199301-199505

main83247-36120iRZB40,50200408-200708

main83247-36140iBB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC199907-200108

24V

main83247-36160iBB42..SRF..WOC..GEN;BB42..LHD..HRF..WOC199907-200408

12V

main83247-36180iHZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC199907-200408

24V

main83247-36200iHZB50..WOC200408-200708

12V

main83247-36220iHZB50..TD199301-199605

main83247-36280iBB50..ARL200211-200304

main83247-36300iHZB50..ARL199505-199907

main83861-36040iBB50..EUR199605-199907

main83861-36161iBB42200708-200908

24V

main83861-36182iBB42..WOC200708-200908

12V

main83861-36241iHZB50..WOC200708-200908

12V

main83861-36270iBB50..TD200408-200708

main83861-36310iBB58;BB50..GEN..IV199705-199907

main83861-36361iHZB50200708-200908

24V

main83861-36370iBB58,59;BB42..LHD..WOC;BB50..5F..TDEFI200408-200701

main83861-36450iBB50..CBU..6F199907-200108

main83861-36480iHZB50..SRF..WOC;HZB50..LHD..STD..WC..GEN199907-200408

RUSSIA SPEC,24V

main83861-36500iBB50..TD200408-200708

W(WIDE WATER TEMPERATURE METER)

main83861-36590iXZB50..ARL;BB50..(EUR,GEN)..6F200408-200708

main83861-36632iBZB40,50200708-200908

12V

main83861-36650iBB50..ARL200211-200312

W(ABS)

main83861-36701iBB50200708-200908

24V

main83861-36790iXZB5#..GEN,TAIW200608-200708

main83861-36791iXZB40,5#..GEN,TAIW200708-200908

main83861-36801iXZB50..ARL200708-200908

main83861-36810iXZB50..IV200608-200708

main83861-36811iXZB50..IV200708-200809

main83861-36812iXZB50..IV200809-200908

main83861-36830iTRB40,50200708-200908

83247BPLATE, METER CIRCUIT, NO.2

main83247-36240iBB50,HZB50..ARL,CHI199907-200211

24V

main83247-36260iRZB40,50;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)199301-199907

12V

main83862-36643iBB42,HZB50..WOC;BZB40,50,TRB40,50200708-200908

12V

main83862-36672iXZB50..IV200708-200809

24V

main83862-36812iXZB50..IV200809-200908

83247CPLATE, MATER CIRCUIT, NO.3

main83861-36420iBB50..IV..6F199907-200105

83310GAGE ASSY, FUEL RECEIVER

main83243-36020iBB4#,5#,HZB50..ARL,EUR,GEN,SCO199301-199907

24V

main83243-36040iHZB50..WOC;BB42..RHD..WOC200408-200908

12V

main83243-36060iHZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB42,RZB40..SRF..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199907-200408

12V, WIDE RANGE GAUGE

main83243-36080iBB42..22S;BB42..WOC..GCC;HZB50..RHD..EX;HZB50..RHD..SRF;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

24V, WIDE RANGE GAUGE

8316120340CASE, COMBINATION METER MIRROR, NO.1

main83161-20340

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

8316120480CASE, COMBINATION METER MIRROR, NO.1

main83161-20480

8316120800CASE, COMBINATION METER MIRROR, NO.1

main83161-20800

8316120820CASE, COMBINATION METER MIRROR, NO.1

main83161-20820

8316136040CASE, COMBINATION METER MIRROR, NO.1

main83161-36040

9356855014

main93568-55014

21 parts on this diagram · 5 diagrams in section
