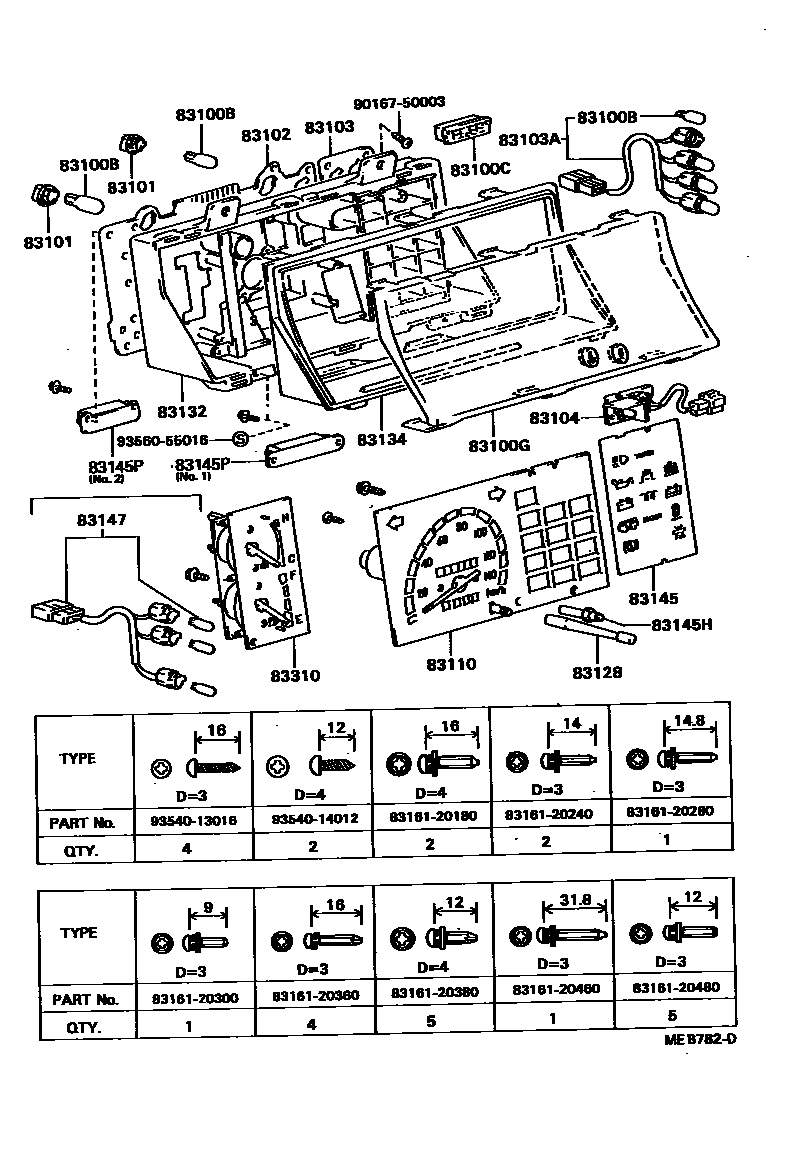

Toyota COASTER — METER

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1 0009 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018iBB20,21,HB30,HZB30..WOC198205-199301

12V 1.2W W/O SOCKET,12V 1.4W

main90981-11022iHB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S198205-199301

24V 1.4W,24V 1.4W

main90981-16010iHDB30,HZB30199001-199301

24V 3W,X

main99132-12034iBB20,21,HB30,HZB30..WOC198205-199301

12V 3.4W,12V 3.4W

main99134-12030iHB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S198510-199301

24V 3W,24V 3W

83100CCONNECTOR, COMBINATION METER

main90980-08208iBB2#,3#,HB3#,HDB30,HZB30198510-199301

MILE & KM,W/*AUD(W/O *OM);MILE & KM,*ME(W/O *AUD)

83100GGLASS, COMBINATION METER

main83138-90000iHDB30,HZB30199001-199301

main83138-90B00iBB2#,3#,FB30,HB3#,RB20198205-199301

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iBB20,21,HB30,HZB30..WOC198205-199301

12V 1.4W

main83101-20040iBB20,21,HB30,HZB30..WOC198205-199301

12V 3.4W

main83101-89101iHB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S198205-199301

24V 3W

main83101-95020iHB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S198205-199301

24V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-90B00iBB20..LHD..SRF..26S..WC198505-198510

12V,*ME,W/SEAT BELT WARNING

main83247-90B01iBB20,RB20..LHD..STD..SRF..26S..5F198308-198408

12V,SAA SPEC

main83247-90B02iBB20..LHD..SRF..26S..WC198308-198408

24V,SSA SPEC

main83247-90B03iRB20;BB20..WOC198205-198510

12V

main83247-90B07iBB20,21,HZB30198510-199301

24V

main83247-90B09iBB20,21..WOC..ME198510-199301

12V

main83247-90B10iBB20,21,HB30,HZB30..(DLX,EXS)..ARL198510-199301

24V

main83247-90B11iBB20,21,HB30,HZB30..WOC..(ARL,GEN)198510-199301

12V

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-90B04iRB20..GEN198408-198510

main83247-90B05iBB2#,32..GEN,ME199008-199301

24V

main83247-90B08iHZB30..WOC199001-199301

12V

83103ALAMP SUB-ASSY, METER

main83103-90B00iBB20..16S198303-198408

main83103-90B01iRB20..(DLX,EXS)..GEN198205-198302

main83103-90B02iBB20..WOC..GEN198205-198302

*ME

main83103-90B03iRB20..DLX,EXS198510-198610

W/*OM

main83103-90B04iFB30,RB20..GEN198610-199301

W/*OM

83104PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3

main83247-90005iHDB30199001-199301

main83247-90B06iHB31198610-199001

83110SPEEDOMETER ASSY

main83110-36290iHZB30..LHD..WC..GEN199106-199301

NIGERIA SPEC

main83110-36300iHDB30..EUR199106-199301

main83110-36310iRB20..LHD..26S..WC..GEN199106-199301

NIGERIA SPEC

main83110-90B02iBB20,RB20..22S,26S198205-198510

KM

main83110-90B03iBB20..LHD..SRF..26S..WC198408-198505

SAA SPEC,24V

main83110-90B04iBB20,RB20..(22S,26S)..GEN198408-198510

MILE & KM

main83110-90B05iBB20,RB20..GEN198205-198510

MILE & KM,W/*AUD,*EB OR *OM

main83110-90B06iRB20..17S198408-198510

*ME,12V,W/SEAT BELT WARNING

main83110-90B09iBB2#,RB20..(DLX,STD)..GEN198510-198610

KM

main83110-90B10iBB32198808-199301

main83110-90B11iBB20,RB20..(22S,26S)..GEN198510-198610

MILE & KM

main83110-90B12iHB30..26S198610-199001

MILE & KM

main83110-90B13iBB20,21,FB30,RB20..ME198510-199301

KM,W/*AUD,*EB OR *OM

main83110-90B14iBB21,RB20..(25S,26S)..ME198808-199301

KM

main83110-90B15iBB20,21,HB30,RB20..ARL198510-199301

main83110-90B18iHZB30..30S199001-199301

MIDDLE EAST SPEC

main83110-90B19iHZB30..WOC..GEN199001-199301

48D26R OR MIDDLE EAST SPEC

main83110-90B20iHDB30199001-199301

KM & MILE,W/SPEEDO SENSOR OR MIDDLE EAST SPEC

main83110-90B21iHZB30..30S199001-199301

KM & MILE

main83110-90B22iHZB30..ME199001-199301

main83110-90B23iHZB30..ARL199001-199301

83128KNOB, TRIP COUNTER

main83128-90B00iBB2#,3#,HB3#,HDB30,HZB30,RB20198205-199301

83132CASE, COMBINATION METER

main83132-90001iHZB30199001-199301

24V

main83132-90004iHDB30199001-199301

main83132-90007iHZB30199001-199301

12V

main83132-90B00iFB30..SRF..GEN199106-199301

main83132-90B02iHB31198610-199001

83134COVER, COMBINATION METER, NO.1

main83134-90B00iBB2#,3#,HB3#,HDB30,HZB30,RB20198205-199301

83145LENS, METER, NO.1

main83131-90002iHZB30..GEN199001-199301

main83131-90003iHZB30..ARL199001-199008

main83131-90004iHZB30..ME199001-199301

main83131-90005iHDB30..GEN199001-199301

main83145-36020iHDB30..EUR199001-199301

main83145-90000iBB21,RB20..ARL199008-199301

main83145-90001iHZB30..WC..ARL199008-199301

main83145-90B00iRB20..GEN198408-198510

main83145-90B01iBB20,RB20..16S,17S,20S198205-198408

main83145-90B02iBB20,RB20..LHD..SRF..26S..WC198308-198408

SAA SPEC

main83145-90B03iRB20..GEN198408-198510

*ME

main83145-90B04iRB20..17S198408-198510

*ME,W/SEAT BELT WARNING

main83145-90B05iBB20,RB20..ARL198408-198510

main83145-90B08iBB20,RB20..ARL198510-198610

main83145-90B09iHB31198610-199001

main83145-90B10iBB21,HB30,RB20..ARL198610-199008

83145HKNOB, COMBINATION METER

main83145-22090iHDB30,HZB30199001-199301

83145PDROPPER, METER

main83340-90B00iHB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#,HB31;BB20..15S,16S,22S,26S198205-199301

NO.1

main83340-90B01iBB20,21,HZB30..IRQ,ME198307-199301

NO.2

main83340-90B02iHB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB21,22,23,3#..ARL,GEN;BB20..(15S,16S,22S,26S)..(ARL,GEN)198307-199301

NO.2

83147LAMP, METER NO.1

main83147-90001iHZB30..WC..ARL199001-199301

W/OK MONITER

main83147-90002iHZB30..WOC..GEN199001-199301

12V,MILE/KM & MIDDLE EAST SPEC

83310GAGE ASSY, FUEL RECEIVER

main83243-90B00iBB20..WC..(ARL,GEN)198205-198307

24V

main83243-90B01iHZB30199001-199301

24V,MIDDLE EAST SPEC

main83243-90B02iBB20,21,HB30,HZB30..WOC..(ARL,GEN)198205-199301

12V

main83243-90B03iBB20,21..WOC..ME198510-199301

main83243-90B04iHDB30199001-199301

24V

8316120180CASE, COMBINATION METER MIRROR, NO.1

main83161-20180

8316120240CASE, COMBINATION METER MIRROR, NO.1

main83161-20240

8316120280CASE, COMBINATION METER MIRROR, NO.1

main83161-20280

8316120300CASE, COMBINATION METER MIRROR, NO.1

main83161-20300

8316120360CASE, COMBINATION METER MIRROR, NO.1

main83161-20360

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120460CASE, COMBINATION METER MIRROR, NO.1

main83161-20460

8316120480CASE, COMBINATION METER MIRROR, NO.1

main83161-20480

9016750003

main90167-50003

9354013016

main93540-13016

9354014012

main93540-14012

9356055016

main93560-55016

29 parts on this diagram · 7 diagrams in section
