Toyota COASTER — METER

0001 1 0002 1

83100METER ASSY, COMBINATION

main83100-36052iRB1#..GEN197708-197911

12V

main83100-36053iRB1#..GEN197911-198204

12V

main83100-36062iBB10..BC..(GEN,IRQ)197911-198204

24V

main83100-36090iRB11..ARL;BB10..STD..ARL197708-197911

12V

main83100-36091iRB1#..ARL;BB10..STD..ARL197911-198204

12V

main83100-36100iBB10..BC..ARL197905-197911

24V

main83100-36101iBB10..BC..ARL197911-198204

24V

main83100-36110iRB1#..ARL;BB10..STD..ARL197911-198204

12V,W/SEDIMENTER WARNING

main83100-36120iBB10..BC..ARL197911-198204

24V,W/SEDIMENTER WARNING

83100BBULB, COMBINATION METER, NO.1

main90981-16010×5iBB10..GEN197708-197905

24V 3W,24V 3W

sub99134-12030

main99132-12034×5iRB11,13;BB10,RB10..DLX,STD197708-198204

12V 3.4W,12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12010×5iBB10,RB1#197708-198204

COMBINATION METER

main83101-36010×2iBB10,RB1#197708-198204

SPEEDOMETER

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-36021iBB10..GEN197708-197905

24V

main83102-36030iRB11,13;BB10,RB10..DLX,STD197708-198204

12V

main83102-36040iRB1#..ARL;BB10..STD..ARL197911-198204

12V,W/SEDIMENTER WARNING

main83102-36050iBB10..BC..ARL197911-198204

24V,W/SEDIMENTER WARNING

83110SPEEDOMETER ASSY

main83110-36033iBB10,RB10..DLX,STD197905-198204

KM,12V

main83110-36043iRB1#..GEN197708-198204

MILE & KM,12V

main83110-36053iBB10..21S,22S,25S,26S197905-198204

KM,24V

main83110-36063iBB10..GEN,IRQ197708-198204

MILE & KM,24V

main83110-36260iRB11,13..ARL197905-198204

KM,12V

83110BBULB, SPEEDOMETER

main90981-16010×2iBB10..GEN197708-197905

24V 3W

sub99134-12030

main99132-12034×2iRB11,13;BB10,RB10..DLX,STD197708-198204

12V 3.4W

83110GGLASS, SPEEDOMETER

main83138-60030iBB10,RB1#197708-198204

83111MECHANISM, SPEEDOMETER

main83112-36042iBB10,RB1#..GEN197708-198204

MILE

main83112-95A02iBB10,RB1#197708-198204

KM

sub83112-95A04

83135POINTER, SPEEDOMETER

main83135-60030iBB10,RB1#197708-198204

83310GAGE ASSY, FUEL RECEIVER

main83310-60031iBB10,RB1#197708-198204

83340RESISTANCE ASSY, FUEL RECEIVER GAGE

main83340-36010iBB10..GEN197708-197905

24V

83360RELAY ASSY, FUEL SENDER

main83360-20011iRB11,13;BB10,RB10..DLX,STD197708-198204

12V

main83360-36010iBB10..GEN197708-197905

24V

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83410-60032iBB10,RB1#197708-198204

83910CLOCK ASSY

main83910-36020iRB1#..GEN197911-198204

12V

main83910-36030iBB10..GEN,IRQ197911-198204

24V

9331215016

main93312-15016

9331915008

main93319-15008

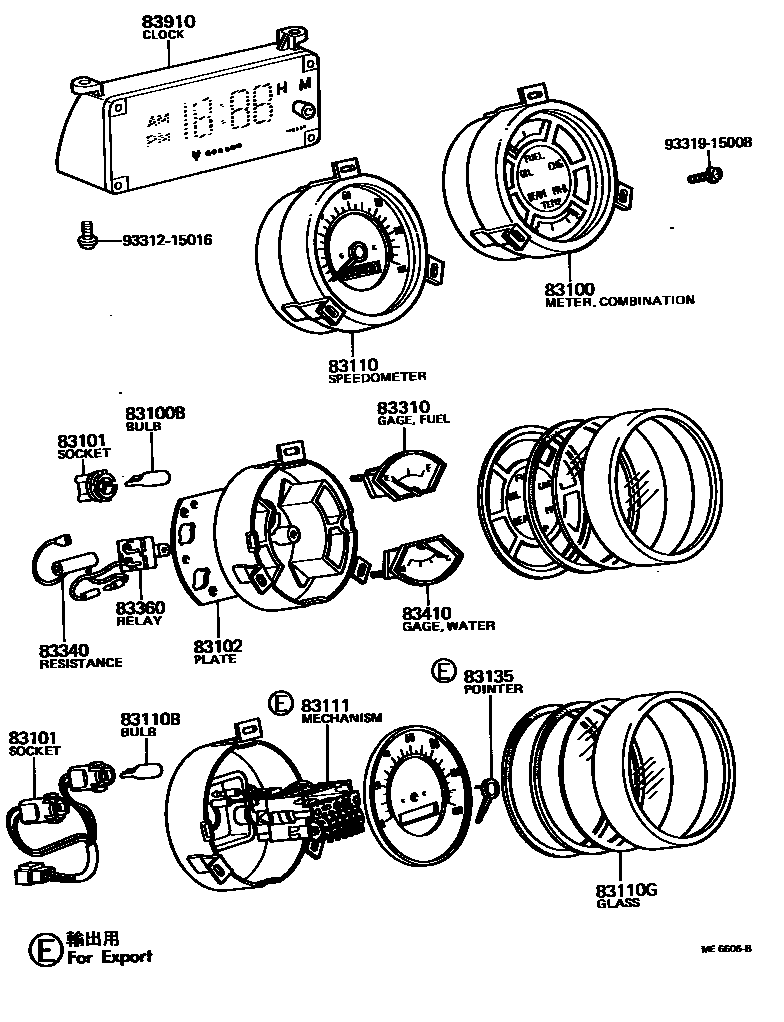

16 parts on this diagram · 2 diagrams in section
