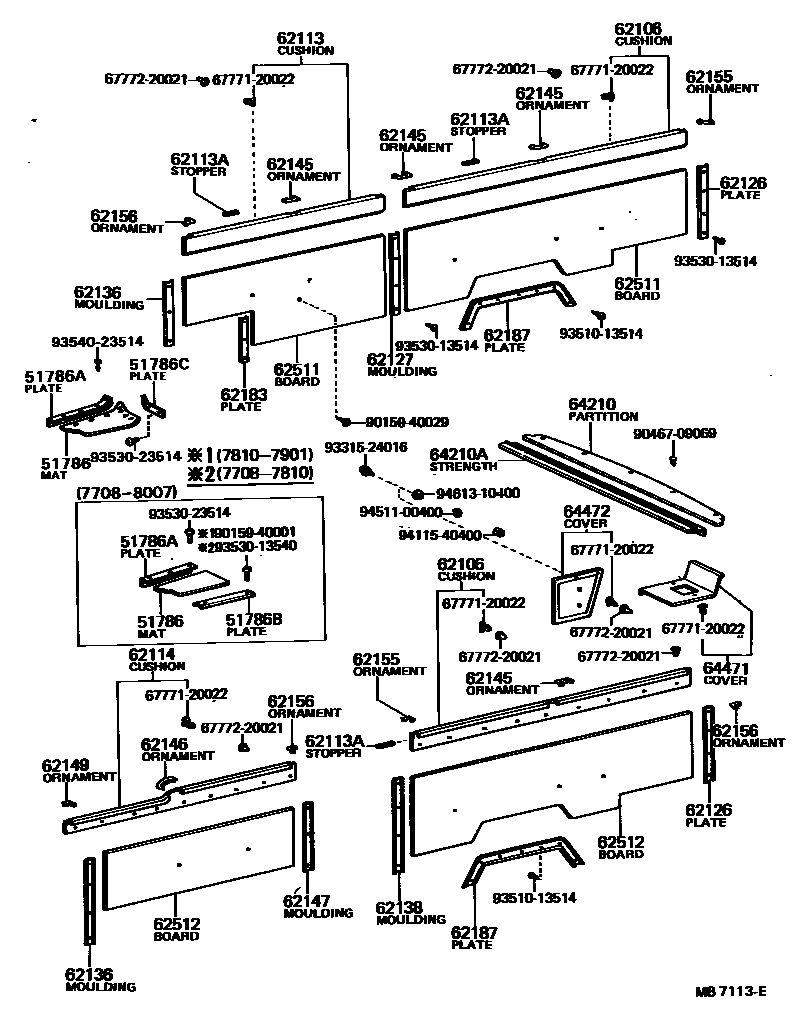

Toyota COASTER — INSIDE TRIM BOARD
51786MAT, FRONT STEP, RH
51786APLATE, FRONT DOOR STEP MAT SET, LOWER
51786BPLATE, FRONT DOOR STEP MAT SET, LOWER INNER
51786CPLATE, FRONT DOOR STEP MAT SET, LOWER REAR
62106CUSHION SUB-ASSY, INSIDE, REAR
RH
RH
RH
RH
LH
LH
LH
LH
LH
LH
62113CUSHION, INSIDE, FRONT RH
62113ASTOPPER, INSIDE CUSHION
62114CUSHION, INSIDE, FRONT LH
62126PLATE, REAR FLOOR SIDE BOARD SET VERTICAL
LH; RH,LH
LH; RH,LH
RH
62127MOULDING, SIDE BOARD CONNECTOR
L=525
L=525
62136MOULDING, SIDE BOARD SET FRONT FLOOR VERTICAL
L=525
L=360
L=360
62138MOULDING, SIDE BOARD SET REAR FLOOR VERTICAL, CENTER REAR
62145ORNAMENT, INNER PILLAR, LOWER NO.1
62146ORNAMENT, INNER PILLAR, LOWER NO.2
62147MOULDING, SIDE BOARD SET FRONT FLOOR VERTICAL, CENTER FRONT
62149ORNAMENT, INNER PILLAR, LOWER NO.3
62155ORNAMENT, INNER PILLAR, LOWER NO.4
62156ORNAMENT, INNER PILLAR, LOWER NO.5
62183PLATE,SIDE BOARD CORNER SET
62187PLATE, REAR WHEEL HOUSE SIDE BOARD SET
62511BOARD, QUARTER INSIDE TRIM, RH
FR
FR
RR
RR
RR
RR
RR
RR
RR
RR
RR
RR
RR
RR
FR
FR
62512BOARD, QUARTER INSIDE TRIM, LH
FR
FR
FR
FR
RR
RR
RR
RR
RR
RR
64210PARTITION ASSY, LUGGAGE
64210ASTRENGTH, LUGGAGE PARTITION
64471COVER, EVAPORATOR, UPPER
64472COVER,EVAPORATOR, SIDE
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
9015940001
main90159-40001
9015940029
main90159-40029
9046709069
main90467-09069
9331524016
main93315-24016
9351013514
main93510-13514
9353013514
main93530-13514
9353013540
main93530-13540
9353023514
main93530-23514
9354023514
main93540-23514
9411540400
main94115-40400
9451100400
main94511-00400
9461310400
main94613-10400
40 parts on this diagram · 2 diagrams in section
INSIDE TRIM BOARD for Toyota COASTER
This section contains 41 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota COASTER. Key components include: MAT, FRONT STEP, RH, PLATE, FRONT DOOR STEP MAT SET, LOWER, PLATE, FRONT DOOR STEP MAT SET, LOWER INNER, PLATE, FRONT DOOR STEP MAT SET, LOWER REAR, MAT, FRONT STEP, LH.
