Toyota COASTER — INDICATOR

81840CLAMP ASSY, DOOR INDICATOR

main81840-36010-A0iHZB50..ARL199301-199505

IVORY,TRIM4#

main81840-36010-A1iHZB50..ARL199907-200108

IVORY,TRIM4#

main81840-36010-B0iBB50..ARL200108-200408

MD.CHARCOAL,TRIM1#

main81840-36020-A0iBB40199301-199505

IVORY,TRIM4#

main81840-36020-A1iBB40199505-199907

IVORY,TRIM4#

main81840-36030-B0iXZB50..ARL200908-201501

MD.CHARCOAL,TRIM1#

81840DBULB, DOOR INDICATOR LAMP

main99134-13060×3iBB40,HZB50..ARL199301-199907

81879BRACKET, INDICATOR LAMP

main81879-36011iBB40,HZB50..WC..ARL199301-199907

main81879-36021iBB50..WOC..CBU..TDEFI200408-200608

81879ABRACKET, INDICATOR LAMP NO.2

main81879-36030iHZB50..ARL199907-200211

85643CUSHION, AUTO DOOR BRACKET STOPPER

main85643-36010×2iHZB50..WC..ARL199907-200211

NO.1

main85643-36020×2iXZB50..WC..ARL200408-201501

NO.2

9026005001

main90260-05001

9165140614

main91651-40614

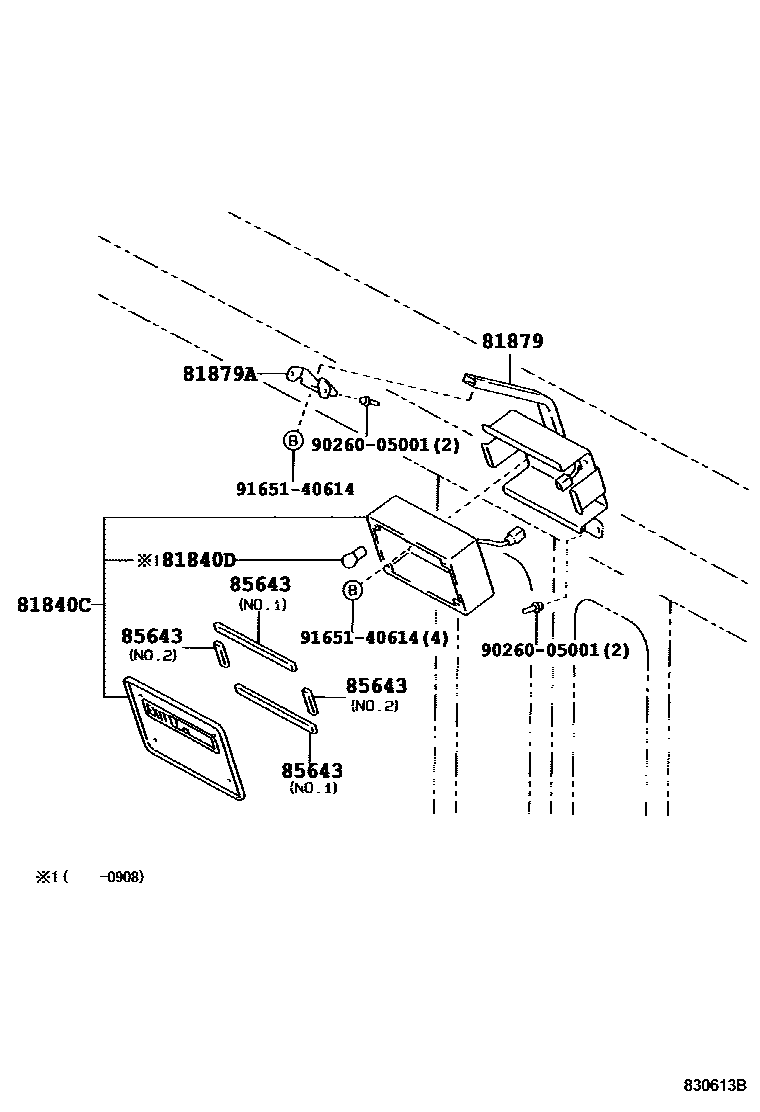

7 parts on this diagram · 1 diagram in section
