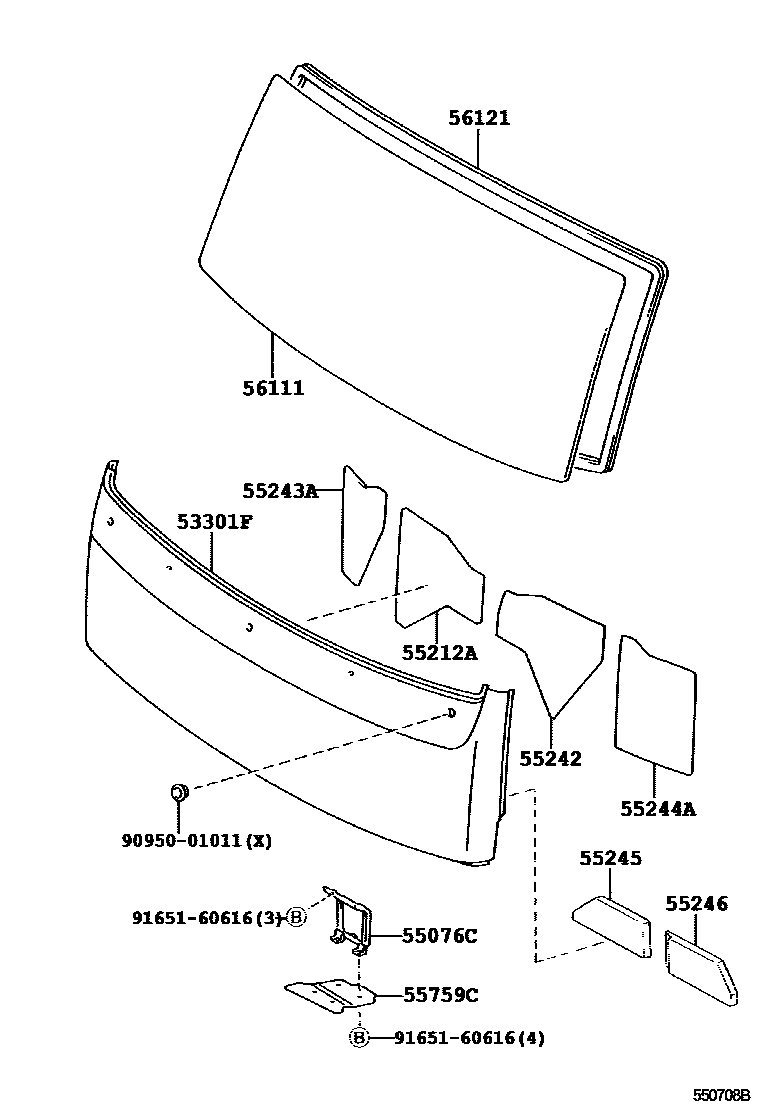

Toyota COASTER — FRONT PANEL & WINDSHIELD GLASS

53301FPANEL SUB-ASSY, FRONT

main53301-36010iBB42,HZB50,RZB40..LHD..SRF..WC..GEN199512-199607

GULF SPEC

sub53301-36011

sub55342-36060

main53301-36020iBB50,58..GEN..6F200408-200608

sub55342-36060

main53301-36021iRZB40,50;BB42,HZB50,XZB50..GCC,TAIW200706-200708

main53301-36022iBB42,50,HZB50,TRB40,50..LHD..GEN201212-201501

main53301-36030iBB42..LHD..HRF199512-199907

CHINA SPEC & W(COOL AIR INTAKE)

main53301-36040iBB50..EX..TDEFI199907-200408

SINGAPORE SPEC

sub55342-36050

main53301-36041iXZB50..EX200706-200708

SINGAPORE SPEC

main53301-36042iBB42,HZB50..RHD201501

main53301-36060iBB42,HZB50..SCO;HZB50..22S..4FC199301-199705

sub55342-36050

main53301-36061iBZB40,50,XZB5#..GEN200706-200708

main53301-36070iHZB50,RZB40,50..LHD..HRF..WC..GEN..5F199512-199907

CHINA SPEC & W(COOL AIR INTAKE)

main53301-36090iBB42..RHD..GEN199301-199907

W(PRECLEANER)

sub55342-36050

main53301-36091iBB42..RHD200706-201212

W(PRECLEANER)

main53301-36092iBB42..RHD201501

W(PRECLEANER)

main53301-36100iBB42..LHD200408-200706

W(PRECLEANER)

sub55342-36060

main53301-36101iBB42..LHD..HRF200706-201108

W(PRECLEANER)

main53301-36102iBB42..LHD..GEN201212-201501

W(PRECLEANER)

main53301-36120iHZB50..RHD..SRF;HZB50..RHD..WOC..GEN;HZB50..RHD..(20S,22S)..GEN199907-200108

W(PRECLEANER)

sub55342-36050

main53301-36121iHZB50..RHD200706-201212

W(PRECLEANER)

main53301-36122iHZB50..RHD201501

W(PRECLEANER)

main53301-36130iHZB50,RZB40,50..LHD199705-199907

W(PRECLEANER)

sub55342-36060

main53301-36131iBB50,HZB50,TRB40,50..LHD..GEN200706-201212

W(PRECLEANER)

main53301-36132iBB50,HZB50,TRB40,50..LHD..GEN201212-201501

W(PRECLEANER)

main53301-36180iXZB50..EX;BZB40,50,XZB40,59200708-201501

main53301-36200iBB42,HZB50,TRB40,50,XZB50..GCC,TAIW200708-201212

main53301-36201iBB42,HZB50,TRB40,50,XZB50..GCC,TAIW201212-201501

main53301-36210iXZB50..EX200708-201212

SINGAPORE SPEC

main53301-36211iXZB50..ARL201501

SINGAPORE SPEC

main53301-36220iBB42,HZB50,TRB40,50,XZB40,50..LHD..GEN201501

sub82715-36140

sub91621-B0816

main53301-36230iBB42..LHD..GEN201501

W(PRECLEANER)

sub82715-36140

sub91621-B0816

main53301-36240iHZB50,TRB40,50,XZB40,50..LHD..GEN201501

W(PRECLEANER)

sub82715-36140

sub91621-B0816

main53301-36250iBB42,HZB50,TRB40,50,XZB50..GCC,TAIW201501

sub82715-36140

sub91621-B0816

55076CNET SUB-ASSY, AIR DUCT

main55076-36010iBB42..LHD..SRF..WOC..GEN199907-200408

*EX-USSR SPEC

55212ASILENCER, FRONT PANEL, LOWER

main55241-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-199907

main55242-36040iXZB50..STD..GEN200708-200803

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-199907

main55242-36040iXZB50..STD..GEN200708-200803

55243ASILENCER, FRONT PANEL SIDE, NO.2 RH

main55243-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-199907

main55243-36030iXZB50..STD..GEN200708-200803

55244ASILENCER, FRONT PANEL SIDE, NO.2 LH

main55244-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-199907

main55244-36030iXZB50..STD..GEN200708-200803

55245SILENCER, FRONT PANEL SIDE, NO.3 RH

main55245-36020iBB43,5#..CBU199705-199907

main55246-36020iBB50..CBU..6F;BB43,50..RHD..5F199910-200108

55246SILENCER, FRONT PANEL SIDE, NO.3 LH

main55246-36020iBB43,5#..CBU199705-199907

55759CCOVER, HEATER AIR DUCT

main55759-36020iHZB50..SRF..GEN;HZB50..LHD..HRF..STD..WC..GEN..5F199301-199907

*EX-USSR SPEC

main55759-36021iHZB50..LHD..WC..GEN;BB42,HZB50..LHD..SRF..WOC200607-200701

56111GLASS, WINDSHIELD

main56111-36010iHZB50..RHD..SRF;RZB50..SRF..GEN;HZB50..30S..GEN..4FC;BB42,HZB50,RZB40..WOC..(GCC,GEN)199301-199705

*LAM,T=7.0

main56111-36020iBB40;BB42..WC;HZB50..GCC..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;BB42,HZB50..WOC..(ARL,GCC)199301-199308

*TL,T=7.0

main56111-36040iBB42,HZB50,RZB40,50..GCC,GEN199301-199403

*LAM,T=7.0,BRONZE

main56111-36070iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..GCC,GEN201501

W/O(TOP SHADE)

sub56111-36210

main56111-36080iBB50..STD..CBU;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F199705-199907

*TL,T=7.0,BRONZE

main56111-36100iBB50,HZB50,TRB40,50;BB42,XZB50..ARL,GCC,TAIW201408-201501

W(TOP SHADE)

main56111-36110iBB42..LHD..HRF200604-201108

*TL,T=7.0,GREEN

sub56111-36210

main56111-36120iBB50,HZB50,TRB40,50..26S,30S;BB42,XZB50..WC..(ARL,GCC,TAIW)200604-201408

*LAM,T=7.0,GREEN

sub56111-36220

56121WEATHERSTRIP, WINDSHIELD

main56121-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-199907

9095001011

main90950-01011

9165160616

main91651-60616

13 parts on this diagram · 1 diagram in section
