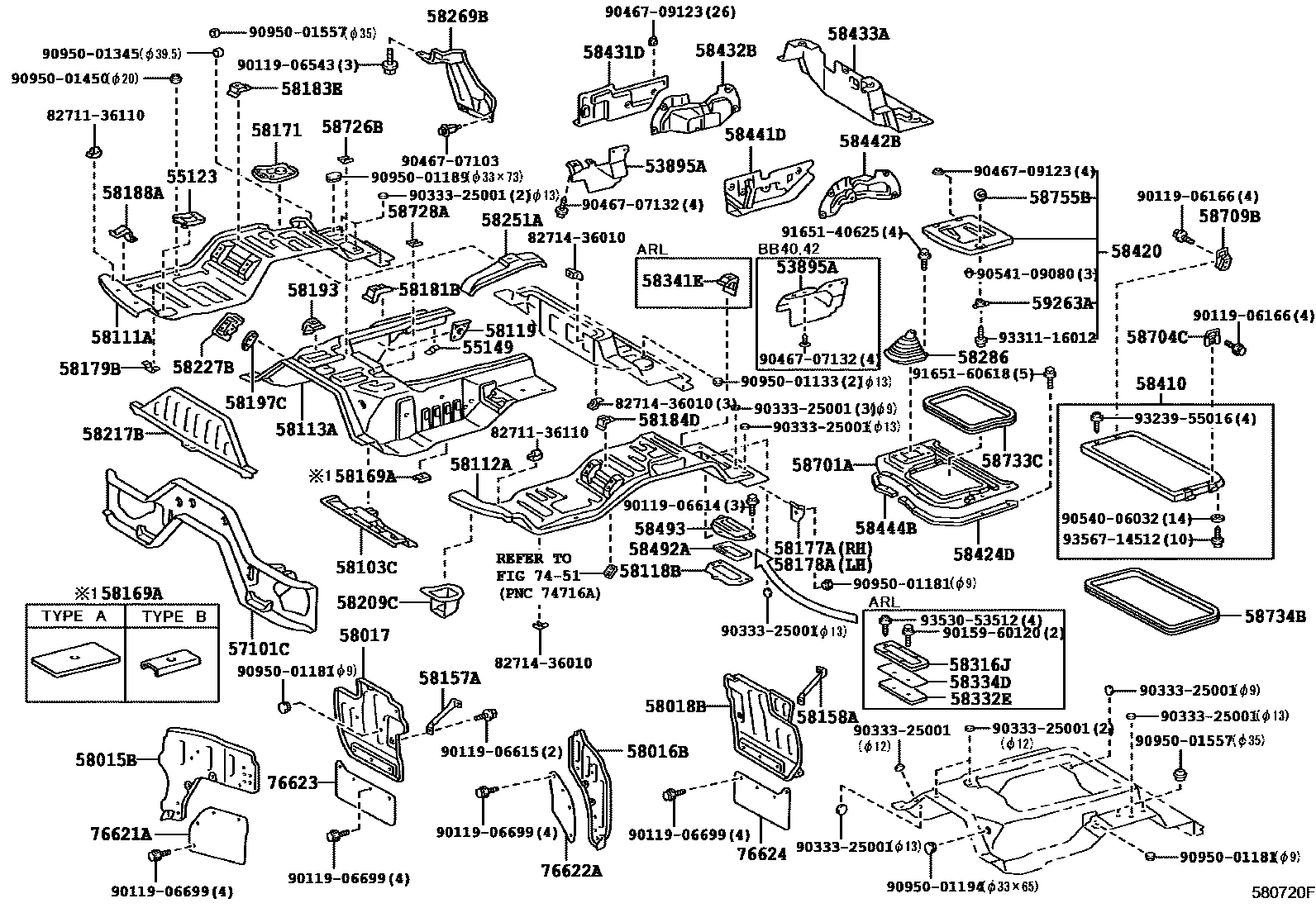

Toyota COASTER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1FOOT REST

53895ASHIELD, SIDE FLOOR APRON, FRONT

main53895-36030iBB4#199301-199505

main53896-36020iHZB50,RZB40,50..CBU199301-199505

55123REINFORCEMENT, STEERING SUPPORT

main55123-36010iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

main55123-36020iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

55149BRACKET, DASH WIRING HARNESS

main55149-36010iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

57101CCROSSMEMBER SUB-ASSY, FLOOR, NO.1

main57101-36020iBB4#,HZB50,RZB40,50..CBU199301-199705

main57101-36040iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199705-199907

main57101-36070iXZB50..STD..GEN200708-200803

main57101-36071iBB42..LHD..HRF200908-201108

58015BPANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT RH

main58015-36010iBB50..RHD..6F199907-200105

main58015-36011iBB42,BZB40,50,HZB50,XZB40,5#..RHD201501

main58015-36020iBB50..LHD..TDEFI200408-200608

main58015-36021iBB42,HZB50,TRB40,50,XZB40,50..LHD..GEN201501

main58015-36040iRZB40..HRF..GCC200408-200602

main58015-36041iBB42,HZB50,TRB40,50,XZB50..GCC,TAIW201501

58016BPANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT LH

main58016-36010iBB50..RHD..IV200405-200408

main58016-36020iBB50..RHD..6F199907-200105

58017PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH

main58017-36010iBB42,50,59,BZB40,50,HZB50..RHD200408-200607

main58017-36011iXZB50..RHD..IV200608-201311

main58017-36020iRZB40..HRF..GCC200408-200602

main58017-36021iBB42,HZB50,TRB40,50,XZB40,50..LHD201501

58018BPANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH

main58018-36010iBB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN)199301-199907

main58018-36020iBB42..RHD..SRF;BB50..RHD..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..STD..WC..GEN..5F199907-200408

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-36010iHZB50..ARL199907-200211

main58103-36020iRZB40..HRF..GCC200408-200602

58111APAN, FRONT FLOOR, RH

main58111-36020iBB4#,HZB50..RHD..HRF..WC..(ARL,GEN)199301-199402

main58111-36021iBB4#..RHD..WC;HZB50..RHD..HRF..WC..(ARL,GEN)199501-199505

main58111-36022iBB42,HZB50..RHD..HRF..WC..GEN..5F199807-199907

main58111-36023iHZB50..RHD..EX199907-200108

sub90333-25001

main58111-36030iHZB50..SCO199402-199501

W(ACCELERATOR INTER LOCK)

main58111-36031iBB42..RHD..WC;HZB50..RHD..HRF..WC..GEN..5F199505-199508

W(ACCELERATOR INTER LOCK)

main58111-36032iBB4#,HZB50..RHD..HRF..WC..DSL199508-199705

W(ACCELERATOR INTER LOCK)

main58111-36033iXZB40,59;XZB50..RHD..(20S,21S)..WC200608-201501

main58111-36040iBB42,HZB50,RZB40,50..LHD..CBU199301-199907

main58111-36041iBB42..LHD..HRF200408-201108

main58111-36050iBB42,HZB50,RZB40,50..LHD..CBU199301-199907

W(EXTINGUISHER)

main58111-36051iBB42..LHD..HRF200408-201108

W(EXTINGUISHER)

main58111-36060iBB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)199301-199310

W(FRONT HEATER)

main58111-36061iBB50..STD..WC..IV;BB50..LHD..WOC..6F199907-200105

sub90333-25001

main58111-36070iBB50..WC..CBU199705-199907

W(EXTINGUISHER)

main58111-36071iBB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN199907-200108

W(FRONT HEATER & EXTINGUISHER)

main58111-36080iHZB50..RHD..SRF;BB4#,HZB50..RHD..WOC199301-199505

main58111-36081iHZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199508-199907

main58111-36082iXZB50..RHD..IV200408-201311

main58111-36090iHZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199505-199508

W(ACCELERATOR INTER LOCK)

main58111-36091iHZB50..RHD..SRF;BB42,HZB50..RHD..WOC..GEN199508-199907

W(ACCELERATOR INTER LOCK)

main58111-36092iXZB50..WOC..CBU200408-200908

W(ACCELERATOR INTER LOCK)

main58111-36100iBB42..SCO199402-199407

MECHANICAL *AUD SPEC

main58111-36122iBB42,43..17S199807-199907

main58111-36123iBB43199907-200108

W(MECHANICAL AUTO DOOR)

main58111-36160iBB42,HZB50..RHD..WC201501

main58111-36170iBB42,BZB40,50,HZB50,XZB40,5#..RHD..WC201501

W(MECHANICAL AUTO DOOR)

sub90333-30002

main58111-36180iBB42..RHD..WOC201501

main58111-36190iBB42..RHD..WOC201501

W(MECHANICAL AUTO DOOR)

main58111-36200iBZB40,50,XZB40..HRF201501

main58111-36210iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501

sub90333-25001

main58111-36220iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501

W(EXTINGUISHER)

main58111-36230iBB42,HZB50,TRB40,50,XZB40,50..LHD201501

W(FRONT HEATER)

main58111-36240iBB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)201501

W(EXTINGUISHER) OR W(EXTINGUISHER & FRONT HEATER)

58112APANEL, FRONT FLOOR, LH

main58112-36010iBB42,HZB50..RHD..GEN..5F199301-199907

main58112-36011iHZB50..RHD..EX;HZB50..RHD..SRF;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

sub90333-25001

main58112-36020iBB42,HZB50..RHD..GEN..5F199301-199907

W(EXTINGUISHER)

main58112-36021iHZB50..RHD..EX;HZB50..RHD..SRF;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

W(EXTINGUISHER)

main58112-36030iBB4#,HZB50..ARL,SCO199301-199705

main58112-36031iXZB5#..EX;BB42,BZB40,50,HZB50..RHD..STD200408-201501

W(FRONT HEATER)

sub90333-25001

main58112-36040iBB42,HZB50..SCO199301-199505

W(EXTINGUISHER)

main58112-36041iBB50,BZB50..EX..GEN200108-200408

W(EXTINGUISHER)

main58112-36060iRZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,5#,HZB50,RZB40..LHD..WC..(GCC,GEN)..5F199301-199907

main58112-36061iBB50,RZB40,50..CHI199907-200211

main58112-36062iBB42,50,HZB50,RZB40,50,XZB50..LHD..WC200608-200708

main58112-36080iRZB50..SRF..GEN;HZB50..30S..GEN..4FC;BB42,50,HZB50,RZB40..LHD..WOC..(GCC,GEN)199301-199907

main58112-36081iBB50..LHD..WOC..6F199907-200105

main58112-36082iBB42,50,HZB50,RZB40,XZB50..LHD..WOC200608-200708

main58112-36110iBB42,43..17S199705-199807

main58112-36120iXZB50..WC..ARL200408-201501

main58112-36140iBB42..LHD..HRF200708-201108

main58112-36150iBB42,50,HZB50,TRB40..LHD..WOC200708-201501

main58112-36160iBB42,HZB50..RHD201501

sub90333-25001

main58112-36170iBB42,HZB50..RHD201501

W(EXTINGUISHER)

main58112-36180iBB42,BZB40,50,HZB50,XZB40,5#..RHD..GEN201501

W(FRONT HEATER)

sub90333-25001

main58112-36190iBB42,HZB50,XZB50..RHD..GEN201501

W(EXTINGUISHER & FRONT HEATER)

main58112-36220iXZB50..ARL201501

main58112-36230iBB42,HZB50,TRB40,50,XZB40,50..LHD..WC201501

sub90333-25001

main58112-36240iBB42,HZB50,TRB40,XZB40,50..LHD..WOC201501

sub90333-25001

58113APANEL, FRONT FLOOR, CENTER

main58113-36020iHZB50..SCO;BB4#..ARL,SCO;HZB50..19S,22S199301-199705

W(FRONT HEATER)

sub58113-36021

sub90333-25001

main58113-36030iBB42,HZB50,RZB40,50..LHD..CBU199301-199705

W(EXTINGUISHER & ACCELERATOR INTER LOCK & FRONT HEATER)

main58113-36050iBB42,HZB50,RZB40,50..LHD..CBU199301-199705

W(FRONT HEATER)

main58113-36060iBB42,HZB50,RZB40,50..LHD..CBU199301-199705

TAIWAN SPEC & W(EXTINGUISHER)

main58113-36070iBB42,HZB50,RZB40,50..LHD..CBU199301-199705

W(ACCELERATOR INTER LOCK)

main58113-36080iBB42,HZB50..RHD..GEN..5F199301-199705

main58113-36110iBB42..SCO199402-199407

MECHANICAL *AUD SPEC

main58113-36120iBB42..SCO199407-199705

W(MECHANICAL *AUD)

main58113-36130iBB4#,50,HZB50..RHD..CBU199705-199807

main58113-36131iXZB50..RHD..IV200408-201311

main58113-36140iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

main58113-36150iBB50..STD..5F..TDEFI200408-200608

W(MECHANICAL AUTO DOOR)

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-36010iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)200408-201501

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-36010iBB42..SCO199402-199407

MECHANICAL *AUD SPEC

main58119-36020iBB42..SCO199407-199705

main58119-36030iBB42,43..17S199807-199808

58157ASTAY, FRONT FLOOR HOUSING, REAR RH

main58157-36010iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#201501

58158ASTAY, FRONT FLOOR HOUSING, REAR LH

main58158-36010iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199711

58169ARETAINER, REAR HEATER MOUNTING

main58129-36010iBB50..STD..5F..TDEFI200408-200608

TYPE A

main58169-90A00×2iBB42..SCO199301-199401

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-36010iHZB50..ARL199907-200211

main58107-36011iXZB50..RHD..IV200712-201311

main58107-36020iBB42,5#,HZB50,RZB40,50..LHD..(GCC,GEN)199301-199907

sub90467-07138

main58107-36021iXZB50..LHD..IV200712-201311

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-36010iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-36010iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

58179BBRACKET, ACCELERATOR CABLE CLAMP

main58179-36010iBB4#,50,HZB50..RHD..CBU199301-199907

58181BBRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH

main58181-36010iBB4#,50,HZB50..RHD..CBU199301-199907

58183EBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36010iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

main58184-36030iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#201501

58184DBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36010iBB42..LHD..HRF200408-201108

main58184-36030iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#201501

58188ABRACKET, ACCELERATOR PEDAL STOPPER

main58188-36010iBB42,BZB40,50,HZB50,XZB40,5#..RHD201501

main58188-36020iRZB40..SRF..GCC;BB42,HZB50,RZB50..GCC200408-200611

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-36010iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199705-199907

main58193-36011iXZB50..IV201106-201311

58197CPLATE, VACUUM TUBE BRACKET, RH

main58197-36010iBB4#,50,HZB50..RHD..CBU199301-199907

58209CCOVER SUB-ASSY, HEATER AIR INTAKE

main58209-36010iBB42..RHD;BB42..LHD..SRF;BB42..LHD..22S;BB40,HZB50,RZB40,50..CBU199301-199705

W(FRONT HEATER)

58217BPLATE, FRONT FLOOR

main58217-36010iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-36010iBB42..SCO199402-199407

MECHANICAL *AUD SPEC

main58227-36020iXZB50..STD..GEN200408-200803

58251AREINFORCEMENT, FRONT SEAT, FRONT RH

main58251-36010iHZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

58269BCOVER, PARKING BRAKE CABLE, RH

main58269-36010iBB4#,50,HZB50..RHD..CBU199301-199907

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-36010iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

58316JPLATE, FOOTREST, REAR

main58316-36010-B0×3iBB50..ARL200211-200408

MD.CHARCOAL,TRIM1#

main58316-36010-E0iHZB50..ARL199907-200108

GREIGE,TRIM4#

58332EBOARD, FRONT FOOTREST, NO.2

main58332-36020iHZB50..ARL199907-200211

58334DMAT, FRONT FOOTREST, NO.2

main58334-36010-B0iHZB50..ARL200108-200211

MD.CHARCOAL,TRIM1#

main58334-36010-E0iHZB50..ARL199907-200108

GREIGE,TRIM4#

main58343-36010-B0×3iBB50,XZB50..ARL200408-201501

MD.CHARCOAL,TRIM1#

58341ELEG, RH FOOTREST, LH

main58341-36040×2iBB40,HZB50..ARL199301-199907

58410COVER, ENGINE SERVICE HOLE

main58410-36011-E1iBB4#,HZB50,RZB40,50..STD..(ARL,GCC,GEN)199503-199603

GREIGE,TRIM4#

main58410-36021-E1iBB42..SCO;HZB50..DX199503-199603

GREIGE,TRIM4#

main58410-36030iHZB50,RZB40..EX199309-199503

main58410-36031iHZB50..DX199306-199309

main58410-36031-E0iHZB50,RZB40..EX199606-199705

GREIGE,TRIM4#

main58410-36070iHZB50..DX,EX199907-200108

main58410-36070-B0iHZB50..DX200108-200211

MD.CHARCOAL,TRIM1#

main58410-36080iBB5#..CBU199705-199711

main58410-36081iBB50..EX;BB50..WOC..5F;BB43,5#,RZB40,50..17S,19S,22S,23S,26S,30S199907-200108

main58410-36081-B0iBB5#,BZB40,50,RZB40,50..ARL,GCC,GEN200108-200408

MD.CHARCOAL,TRIM1#

main58410-36081-B4iBZB40,50,TRB40,50,XZB40,5#201501-201612

MD.CHARCOAL,TRIM1#

main58410-36100iBB40,42,HZB50,RZB40,50..STD..(ARL,GCC,GEN)199705-199907

main58410-36100-B0iHZB50..STD..ARL200108-200211

MD.CHARCOAL,TRIM1#

main58410-36100-B1iBB42,HZB50201501-201612

MD.CHARCOAL,TRIM1#

58420COVER ASSY, ENGINE SERVICE HOLE, NO.2

main58420-36010iBB42,HZB50,RZB40,50..LHD..CBU..5F199301-199705

main58420-36030iBB4#,HZB50..RHD..DSL199301-199705

main58420-36050iHZB50..30S..4FC199301-199705

main58420-36080iHZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

main58420-36090iBB5#..STD..GEN199711-199901

main58420-36091iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

main58420-36110iBZB40,50,XZB40,5#..RHD201501

main58420-36120iBB42,HZB50,RZB40,50..LHD199705-199901

main58420-36121iBB42,HZB50..LHD201501

58424DPACKING, ENGINE COVER

main58424-36020iBB4#,HZB50..DSL199301-199309

58431DSILENCER, ENGINE ROOM SIDE, FRONT RH

main58431-36030iBB4#,HZB50..RHD..DSL199301-199705

main58431-36040iBB42,HZB50..LHD..DSL199301-199705

main58431-36091iBB42,BZB40,50,HZB50..RHD..STD200408-201501

main58431-36100iBB4#,50,HZB50..RHD..CBU199705-199808

main58431-36101iBB50,HZB50..RHD..EX199907-200108

main58431-36102iXZB50..STD..GEN200609-200803

W/O(DESTINATION EXPRESS BOX)

main58431-36110iBB42..WC..GCC;BB50..LHD..TDEFI;BB42..LHD..26S..GEN;BB50,58,HZB50..LHD..(20S,23S,30S)..(GCC,GEN)199907-200408

main58431-36140iBB43199808-199907

main58431-36160iXZB50..LHD..IV200608-201311

main58431-36170iXZB40200609-201501

58432BSILENCER, ENGINE ROOM SIDE, REAR RH

main58432-36010iBB50..STD..GEN;HZB50..LHD..EX;BB4#,58,HZB50,RZB40,50..17S,19S,22S,26S,30S199806-199907

main58432-36050iBB50,HZB50..RHD..EX199907-200108

main58432-36080iXZB50..STD..GEN200608-200803

58433ASILENCER, ENGINE ROOM SIDE END

main58433-36020iBB4#,HZB50,RZB40,50..CBU199301-199705

main58433-36062iRZB40..HRF..GCC200507-200602

main58433-36063iRZB40,50200702-200708

main58433-36070iBB50..STD..WC..IV..5F199907-200105

main58433-36080iBB50..TDEFI;BB5#..CBU..6F199907-200108

main58433-36110iBB50,58..6F200408-200608

main58433-36111iXZB5#200608-200701

main58433-36112iXZB40,59;XZB50..(20S,21S)..WC200702-201501

main58433-36120iBZB40,50200108-200408

main58433-36121iBZB40,50200608-200701

main58433-36122iBZB40,50200702-201501

58441DSILENCER, ENGING ROOM SIDE, FRONT LH

main58441-36030iBB4#,HZB50..RHD..DSL199301-199705

main58441-36040iBB42,HZB50,RZB40,50..LHD..CBU199301-199705

main58441-36090iBB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)199705-199907

W(*FD(AUTO))

main58441-36100iBB50,HZB50..RHD..EX199705-199907

main58441-36110iBB50,RZB40,50..CHI199907-200211

main58441-36130iBB42,43..17S199705-199808

main58441-36140iBZB40,50201501

58442BSILENCER, ENGING ROOM SIDE, REAR LH

main58442-36010iBB4#,HZB50,RZB40,50..CBU199301-199705

main58442-36060iBB50,59..EX..TDEFI199907-200408

main58442-36061iBB50,59..EX200408-200608

sub58442-V4020

main58442-36070iBB5#..STD..GEN199806-199907

main58442-36100iBB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD200408-201501

sub58442-V4030

58444BPACKING, ENGINE SUB COVER

main58444-36010iBB4#,HZB50,RZB40,50..CBU199301-199705

main58444-36050×2iRZB40..HRF..GCC200408-200602

58492APACKING, RELAY BLOCK HOLE COVER

main58492-36010iBB4#,5#,HZB50,RZB40,50..CBU199301-199907

58493RETAINER, ENGINE COVER, NO.3

main58493-36010-B1iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#201501-201612

MD.CHARCOAL,TRIM1#

main58493-36010-E0iBB4#,HZB50,RZB40,50..CBU199301-199406

GREIGE,TRIM4#

58701APANEL SUB-ASSY, ENGINE SERVICE COVER, FRONT

main58701-36010iBB4#,HZB50..RHD..DSL199301-199505

main58701-36011iBB4#,HZB50..RHD..5F..DSL199505-199705

main58701-36021iHZB50..WC..GEN..4FC199505-199705

main58701-36030iBB42,HZB50,RZB40,50..LHD..CBU..5F199301-199505

main58701-36031iBB42,HZB50,RZB40,50..LHD..CBU..5F199505-199705

main58701-36040iHZB50..4FC199301-199505

main58701-36041iHZB50..30S..4FC199505-199705

main58701-36080iBB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F199907-200408

main58701-36090iBB5#..STD..GEN199711-199907

main58701-36100iBB50..EX199705-199708

main58701-36101iBB50,59..RHD..TDEFI199907-200408

main58701-36110iBB42,HZB50,RZB40,50..LHD199705-199907

main58701-36120iHZB50..4FC199705-199907

main58701-36130iXZB50..4FC201501

main58701-36160iBB50..STD..WC..IV;BB50..LHD..WOC..6F199907-200105

main58701-36161iTRB40,50,XZB50..LHD..CBU200408-201501

main58701-36180iBZB40,50201501

main58701-36210iBB50..TD200408-201501

58704CHOOK SUB-ASSY, ENGINE SERVICE COVER CATCH, REAR

main58704-36010-E0×2iBB4#,HZB50..DSL199301-199309

GREIGE,TRIM4#

main58704-36040-B0×2iXZB5#..IV;XZB50..(20S,21S)..WC;BB42,50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)200408-200909

MD.CHARCOAL,TRIM1#

main58704-36040-E0×2iBB50..EX;BB50..WOC..5F;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50199907-200108

GREIGE,TRIM4#

main58704-36041×2iXZB50..IV200910-201311

58709BCATCH SUB-ASSY, ENGINE SERVICE COVER

main58709-36010-E0×2iBB4#,HZB50,RZB40,50..CBU199301-199402

GREIGE,TRIM4#

main58709-36011-E0×2iBB42..LHD..22S;RZB40..EX..GCC;BB4#,RZB50..17S,19S,26S,30S;HZB50,RZB40..20S,22S,26S,30S199402-199705

GREIGE,TRIM4#

main58709-36030-B0×2iXZB50..WOC..CBU200408-200908

MD.CHARCOAL,TRIM1#

main58709-36030-E0×2iBB4#,5#,HZB50,RZB40,50..CBU199705-199711

GREIGE,TRIM4#

main58709-36031×2iBB42..LHD..HRF200910-201108

58726BPLATE, ENGINE SERVICE COVER, FRONT UPPER

main58726-36010iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

58728APLATE, ENGINE SERVICE COVER, NO.2

main58728-36010iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199907

58733CWEATHERSTRIP, ENGINE SERVICE COVER, FRONT

main58733-36010iHZB50..30S..4FC;BB4#,50,HZB50..RHD..CBU199301-199907

main58733-36020iBB42,5#,HZB50,RZB40,50..LHD..CBU..5F199301-199711

main58733-36050iBB42..RHD..SRF;BB50..RHD..TDEFI;BB42,59,BZB40,50..RHD..WC;HZB50..RHD..HRF..STD..WC..GEN..5F199907-200408

main58733-36060iBB42,HZB50,TRB40,50,XZB40,50..LHD201501

58734BWEATHERSTRIP, ENGINE SERVICE COVER, REAR

main58734-36010iBB4#,HZB50,RZB40,50..CBU199301-199705

main58734-36030iBB40,42,HZB50,RZB40,50199705-199907

main58734-36040iBB5#..CBU199705-199711

main58734-36060iXZB50..STD..GEN200408-200803

main58734-36090iBB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB42,HZB50..HRF..(26S,30S)..WC199907-200408

58755BHANDLE, ENGINE SERVICE COVER CATCH

main58755-95D00iBB50,HZB50,RZB40,50..ARL,CHI199907-200211

59263HOOK, ENGINE COVER LOCK

main59263-95D00iBB4#,5#,HZB50,RZB40,50..CBU199301-199907

59263AHOOK, ENGINE COVER LOCK

main59263-95D00iBB4#,5#,HZB50,RZB40,50..CBU199301-199711

7451

76621AMUDGUARD, FRONT BODY, FRONT RH

main76621-36010iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#201501

main76621-36020iHZB50..SRF..GEN;HZB50..LHD..HRF..STD..WC..GEN..5F199301-199907

*EX-USSR SPEC

76622AMUDGUARD, FRONT BODY, FRONT LH

main76622-36010iBB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108

main76622-36020iHZB50..LHD..STD..WC..GEN;BB42,HZB50..LHD..SRF..WOC..GEN199907-200408

*EX-USSR SPEC

76623MUDGUARD, FRONT BODY, REAR RH

main76623-36010iBB4#,HZB50..DSL199301-199309

main76623-36011iXZB50..STD..GEN200408-200803

76624MUDGUARD, FRONT BODY, REAR LH

main76624-36010iBB4#,HZB50..DSL199301-199309

main76624-36011iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199309-199907

8271136110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36110

8271436010

main82714-36010

9011906166

main90119-06166

9011906543

main90119-06543

9011906614

main90119-06614

9011906615

main90119-06615

9011906699

main90119-06699

9015960120

main90159-60120

9033325001

main90333-25001

9046707103

main90467-07103

9046707132

main90467-07132

9046709123

main90467-09123

9054006032

main90540-06032

9054109080

main90541-09080

9095001133

main90950-01133

9095001181

main90950-01181

9095001189

main90950-01189

9095001194

main90950-01194

9095001345

main90950-01345

9095001450

main90950-01450

9095001557

main90950-01557

9165140625

main91651-40625

9165160618

main91651-60618

9323955016

main93239-55016

9331116012

main93311-16012

9353053512

main93530-53512

9356714512

main93567-14512

90 parts on this diagram · 6 diagrams in section
