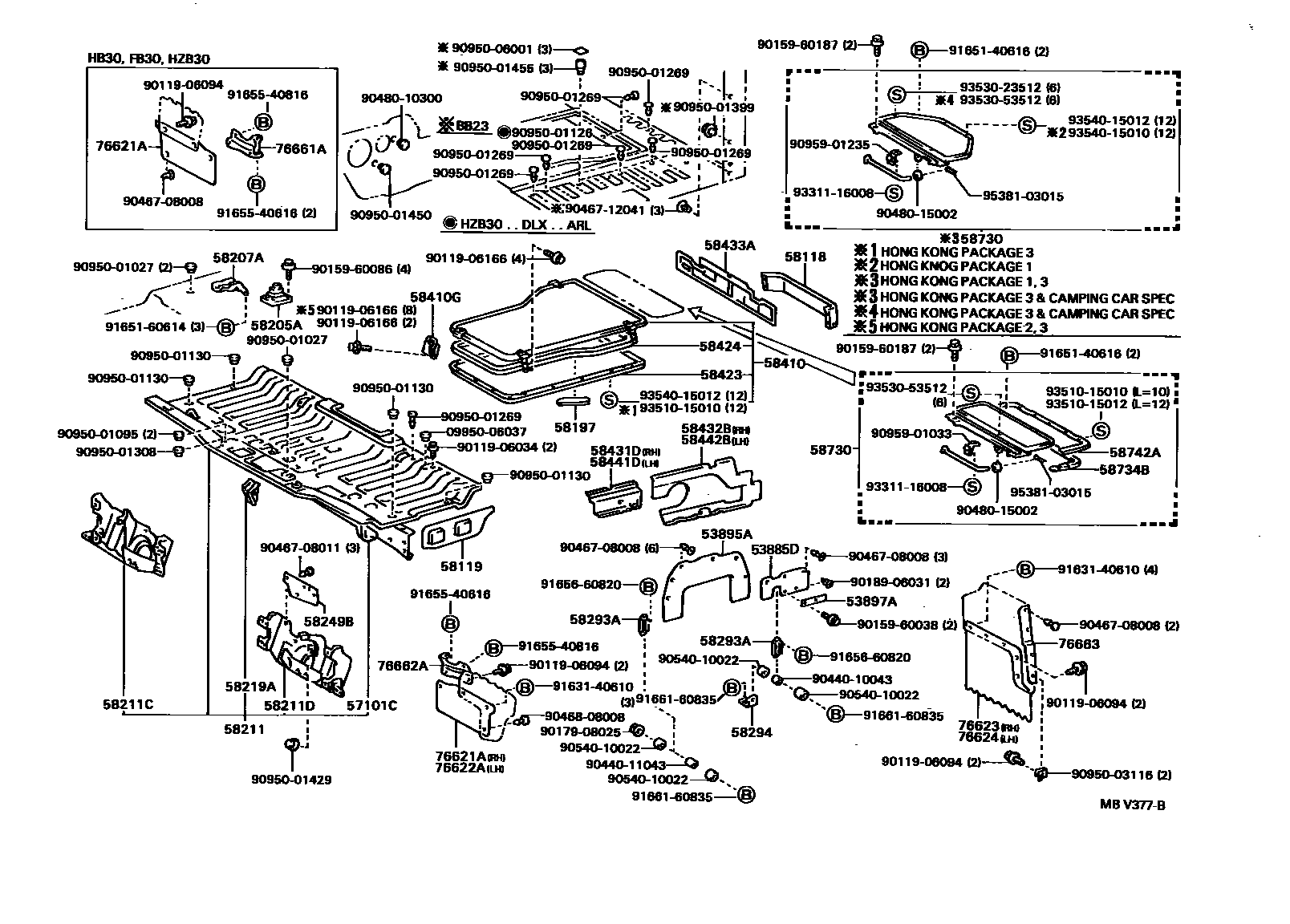

Toyota COASTER — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

53885DSHIELD, SIDE FLOOR APRON, REAR

main53885-90B00×2iBB20,RB20198205-198310

main53885-90B02×2iBB32..4FC199001-199301

53895ASHIELD, SIDE FLOOR APRON, FRONT

main53895-90B00×2iBB32..4FC199001-199301

53897APLATE, SIDE FLOOR APRON SHIELD

main53897-90B00iRB20198205-199301

57101CCROSSMEMBER SUB-ASSY, FLOOR, NO.1

main57101-90B00iBB2#,HB30,HZB30,RB20..RHD198205-199301

main57101-90B01iBB20,21,FB30,HB30,HZB30,RB20..LHD198205-199301

58118PANEL, FRONT FLOOR, REAR LOWER CENTER

main58118-90B00iHB30,HZB30..RHD198610-199301

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-90B00iBB2#,HB30,HZB30,RB20..RHD198205-199301

main58119-90B01iBB20,21,FB30,HB30,HZB30,RB20..LHD198205-199301

58197PROTECTOR, ENGINE SERVICE HOLE

main58197-90B00iRB20198205-198304

58205ACOVER SUB-ASSY, SHIFT LEVER BOOT

main58207-95403iHZB30..5F199001-199301

58207ACOVER SUB-ASSY, PARKING BRAKE CABLE

main58207-90B00iBB2#,FB30,HB30,HZB30,RB20198205-199301

58211PANEL, FRONT FLOOR

main58008-90B00iBB20,RB20..RHD..GEN198205-198408

W/EXTINGUISHER,HEATER

sub58111-90B00

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B05

main58008-90B01iBB20,RB20..RHD..GEN198205-198408

main58008-90B03iBB20,RB20..ARL198205-198408

W/GLIDE DOOR

sub58111-90B17

sub55324-90B00

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58283-90B00

sub58296-90B00

sub58308-90B05

main58008-90B04iBB20,RB20..LHD..GEN198310-198408

sub58111-90B05

sub55324-90B00

sub58185-90B01

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B07iHB30..26S198610-199001

W/HEATER

sub58111-90B00

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B05

main58008-90B08iHB30..26S198610-199001

W/*AUD,HEATER

sub58111-90B03

sub55324-90B00

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B05

main58008-90B10iBB20,RB20..RHD..GEN198302-198408

W/EXTINGUISHER,*AUD,HEATER

sub58111-90B03

sub55324-90B00

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B05

main58008-90B12iBB20,RB20..RHD..DLX..GEN198205-198302

W/*AUD,HEATER

sub58111-90B04

sub55324-90B00

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B05

main58008-90B13iBB21..RHD..GEN;BB20,RB20..RHD..(22S,26S)198408-199301

W/*AUD

sub58111-90B06

sub55324-90B00

sub58185-90B05

sub58187-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B14iBB20,RB20..RHD..GEN198205-198408

W/HEATER

sub58111-90B09

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B05

main58008-90B15iBB20,RB20..RHD..GEN198205-198408

W/EXTINGUISHER

sub58111-90B08

sub55324-90B00

sub58185-90B05

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B16iBB20,RB20..RHD..GEN198302-198408

W/*AUD

main58008-90B17iRB20..17S198610-199301

W/*AUD,HEATER

sub58111-90B10

sub55324-90B00

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B01

main58008-90B18iBB20,RB20..LHD..(22S,26S)198408-198610

W/*GLD,HEATER

sub58111-90B11

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B01

main58008-90B19iBB20,RB20..LHD..(DLX,EXS)..GEN198205-198302

W/*AUD,HEATER

sub58111-90B12

sub55324-90B00

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B01

main58008-90B20iBB20,RB20..LHD..GEN198302-198408

W/EXTINGUISHER,*AUD

sub58111-90B13

sub55324-90B00

sub58185-90B01

sub58187-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B21iBB20,RB20..LHD..GEN198302-198408

W/*AUD

sub58111-90B14

sub55324-90B00

sub58185-90B01

sub58187-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B22iBB21,RB20..LHD..(DLX,STD)198610-199301

sub58111-90B15

sub55324-90B00

sub58185-90B01

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B23iBB20,RB20..LHD..(22S,26S)..GEN198205-198310

W/HEATER

sub58111-90B16

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B01

main58008-90B26iBB20,21,RB20..STD..ARL198206-199301

W/FOLDING DOOR

sub58111-90B18

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58283-90B00

sub58296-90B00

sub58308-90B05

main58008-90B36iBB20,21,RB20..RHD..WOC..GEN198510-199301

W/MECHANICAL *AUD,*HEA

sub58111-90B22

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B02

main58008-90B37iHB30..RHD..WOC..GEN198610-199001

W/MECHANICAL *AUD,HEATER

sub58111-90B22

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B02

main58008-90B38iBB20,21,RB20..STD..ARL198405-199301

W/MECHANICAL *AUD

sub58111-90B23

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58283-90B00

sub58296-90B00

sub58308-90B02

main58008-90B45iBB20,RB20..LHD..(22S,26S)198510-198610

W/*FD,MECHANICAL *AUD

sub58111-90B25

sub55324-90B00

sub58185-90B01

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B46iBB21,RB20..LHD..(DLX,STD)198610-199301

W/MECHANICAL *AUD,HEATER

sub58111-90B26

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B01

main58008-90B47iBB2#..15S198510-199301

W/HEATER

sub58111-90B22

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58296-90B00

sub58308-90B02

main58008-90B48iBB20,21,RB20..RHD..WOC..GEN198510-199301

W/MECHANICAL *AUD

sub58111-90B19

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

sub58308-90B02

main58008-90B50iHB30..WOC..ARL198610-199001

sub58111-90B18

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58283-90B00

sub58296-90B00

sub58308-90B05

main58008-90B51iHB30..WOC..ARL198610-199001

W/MECHANICAL *AUD

sub58111-90B23

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58283-90B00

sub58296-90B00

sub58308-90B02

main58008-90B52iHB30..WC..ARL198610-199001

sub58111-90B17

sub55324-90B00

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58283-90B00

sub58296-90B00

sub58308-90B05

main58008-90B53iFB30,HB30..LHD198610-199301

sub58111-90B15

sub55324-90B00

sub58185-90B01

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B54iFB30,HB30..LHD198610-199301

W/*AUD

sub58111-90B13

sub55324-90B00

sub58185-90B01

sub58187-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B55iFB30,HB30..LHD198610-199301

W/*AUD,HEATER

sub58111-90B10

sub55324-90B00

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B01

main58008-90B56iFB30,HB30..LHD..WOC198610-199301

W/MECHANICAL *AUD

sub58111-90B25

sub55324-90B00

sub58185-90B01

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B57iFB30,HB30..LHD..WOC198610-199301

W/MECHANICAL *AUD,HEATER

sub58111-90B26

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B01

main58008-90B58iFB30,HB30..LHD198610-199301

W/HEATER

sub58111-90B11

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B01

main58008-90B59iHB30..26S198610-199001

sub58111-90B08

sub55324-90B00

sub58185-90B05

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B60iHB30..26S198610-199001

W/*AUD

sub58111-90B06

sub55324-90B00

sub58185-90B05

sub58187-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B61iHB30..RHD..WOC..GEN198610-199001

W/MECHANICAL *AUD

sub58111-90B19

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

sub58308-90B02

main58008-90B62iHB30..RHD..30S..WC198708-199001

HONG KONG SPEC

sub58111-90B22

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58296-90B00

sub58308-90B02

main58008-90B68iHZB30..RHD..30S199001-199301

W/HEATER

sub58111-90B00

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B05

main58008-90B69iHZB30..26S199001-199301

W/*AUD,HEATER

sub58111-90B03

sub55324-90B00

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B05

main58008-90B70iHZB30..RHD..WOC..GEN199001-199301

W/MECHANICAL *AUD,HEATER

sub58111-90B22

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B02

main58008-90B75iHZB30..RHD..30S199001-199301

sub58111-90B08

sub55324-90B00

sub58185-90B05

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B76iHZB30..RHD..GEN199001-199301

W/*AUD

sub58111-90B06

sub55324-90B00

sub58185-90B05

sub58187-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B77iHZB30..RHD..WOC..GEN199001-199301

W/MECHANICAL *AUD

sub58111-90B19

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

sub58308-90B02

main58008-90B78iHZB30..RHD..30S..WC199001-199301

HONG KONG SPEC

sub58111-90B22

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58296-90B00

sub58308-90B02

main58008-90B79iHZB30..RHD..30S..WC199012-199301

HONG KONG PACKAGE 2 & W/GLIDING AUTO DOOR & GLIDING TYPE CENTER DOOR & W/FR HEATER

sub58111-90B03

sub55324-90B00

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58296-90B00

sub58308-90B05

main58008-90B82iHZB30..WOC..ARL199001-199301

sub58111-90B18

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58283-90B00

sub58296-90B00

sub58308-90B05

main58008-90B83iHZB30..WOC..ARL199001-199301

W/MECHANICAL *AUD

sub58111-90B23

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58283-90B00

sub58296-90B00

sub58308-90B02

main58008-90B84iHZB30..WC..ARL199001-199301

sub58111-90B17

sub55324-90B00

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58283-90B00

sub58296-90B00

sub58308-90B05

main58008-90B87iHZB30..LHD..GEN199001-199301

sub58111-90B15

sub55324-90B00

sub58185-90B01

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B88iHZB30..LHD..GEN199001-199301

W/*AUD

sub58111-90B13

sub55324-90B00

sub58185-90B01

sub58187-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B89iHZB30..LHD..WOC199001-199301

W/MECHANICAL *AUD

sub58111-90B25

sub55324-90B00

sub58185-90B01

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B90iHZB30..LHD..GEN199001-199301

W/HEATER

sub58111-90B11

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B01

main58008-90B91iHZB30..LHD..GEN199001-199301

W/*AUD,HEATER

sub58111-90B10

sub55324-90B00

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B01

main58008-90B92iHZB30..LHD..WOC199001-199301

W/MECHANICAL *AUD,HEATER

sub58111-90B26

sub55324-90B00

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B01

main58008-90B93iHZB30..ME199001-199301

sub58111-90B29

sub55324-90B00

sub58185-90B06

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

main58008-90B94iHZB30..ME199001-199301

W/*AUD

sub58111-90B30

sub55324-90B00

sub58029-90B03

sub58185-90B06

sub58187-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

sub58994-90B00

sub58997-90B01

main58008-90B95iHZB30..ME199001-199301

W/HEATER

sub58111-90B31

sub55324-90B00

sub58029-90B03

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B06

sub58994-90B00

sub58997-90B01

main58008-90B96iHZB30..ME199001-199301

W/*AUD,HEATER

sub58111-90B32

sub55324-90B00

sub58029-90B03

sub58187-90B00

sub58194-90B00

sub58209-90B00

sub58211-90B00

sub58213-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B00

sub58308-90B06

sub58994-90B00

sub58997-90B01

main58008-90B97iBB32..4FC199001-199301

sub58111-90B29

sub55324-90B00

sub58029-90B03

sub58185-90B06

sub58187-90B00

sub58188-90B00

sub58194-90B00

sub58255-90B00

sub58256-90B00

sub58275-90B00

sub58291-90B00

sub58296-90B01

sub58994-90B00

sub58997-90B01

58211CHOUSING SUB-ASSY, HEADLAMP, RH

main58201-90B00iBB2#,RB20198205-199301

main58201-90B01iFB30,HB30198610-199301

main58201-90B02iHZB30199001-199301

58211DHOUSING SUB-ASSY, HEADLAMP, LH

main58202-90B00iBB2#,RB20198205-199301

main58202-90B01iHZB30199001-199301

58219ABRACKET, FRONT FLOOR TO GRILLE

main58219-90B00iBB32..4FC199001-199301

58249BSHIELD, HEADLAMP COVER

main58249-90B00iBB2#,FB30,HB30,HZB30,RB20198205-199301

58293ASUPPORT, FRONT FLOOR SIDE APRON

main58293-90B00×4iBB20,RB20198205-198310

58294BRACKET, FRONT FLOOR SIDE APRON

main58294-90B00×2iBB20,RB20198205-198310

58410COVER, ENGINE SERVICE HOLE

main58720-90B00iBB20,RB20..RHD..(DLX,STD)198304-198510

main58720-90B01iBB20..16S198303-198510

main58720-90B02iBB20,21,HB30,RB20..LHD..(DLX,STD)198304-198802

main58720-90B02-02iBB21,HB30,RB20..LHD..(DLX,STD)198802-198808

DARK WINE,DARK WINE

main58720-90B03iRB20..17S198205-198510

main58720-90B04iBB20,RB20..RHD..STD198205-198304

main58720-90B05iBB20,RB20..LHD..STD198205-198304

main58720-90B12iBB20,21,HB30,RB20..RHD..(DLX,EX,STD)198510-198802

main58720-90B12-02iBB21,HB30,RB20..RHD..(DLX,EX)198802-198808

DARK WINE,DARK WINE

main58720-90B13iBB20,21..16S198510-198802

main58720-90B13-02iBB21..16S198802-198808

DARK WINE,DARK WINE

main58720-90B13-06iBB21..16S198808-199205

SABLE,SABLE

main58720-90B14-02iBB21,HB30,RB20..RHD..STD198802-198808

DARK WINE,DARK WINE

main58720-90B16iBB22198510-198802

sub58720-90B17

main58720-90B16-02iBB22198802-198808

DARK WINE,DARK WINE

sub58720-90B17

main58720-90B19iRB20..17S198510-198802

main58720-90B19-02iRB20..17S198802-198808

DARK WINE,DARK WINE

main58720-90B19-06iRB20..17S198808-199301

SABLE,SABLE

main58720-90B21iFB30198610-198802

main58720-90B21-02iFB30198802-198808

DARK WINE,DARK WINE

main58720-90B23iHB30..RHD..30S..WC198708-198802

HONG KONG SPEC

main58720-90B23-02iHB30..RHD..30S..WC198802-198808

HONG KONG SPEC,DARK WINE,DARK WINE

main58720-90B26-06iBB21,HB30,HZB30,RB20..RHD..STD198808-199301

SABLE,SABLE

main58720-90B27-06iBB21,HB30,RB20..LHD..DLX198808-199301

SABLE,SABLE

main58720-90B32-06iBB23198808-199301

SABLE,SABLE

sub58720-90B33

main58720-90B34-06iFB30198808-199301

SABLE,SABLE

main58720-90B35-06iHZB30..RHD..30S..WC199012-199301

HONG KONG PACKAGE 3,SABLE

main58720-90B36iBB32..4FC199001-199301

main58720-90B37iHZB30..ME199001-199301

main58720-90B38iHB30..RHD..30S..WC198911-199001

58410GCATCH, ENGINE SERVICE HOLE COVER

main58709-90B00×2iBB20,21,23,FB30,HB30,HZB30,RB20..DLX,EX,STD198205-199301

main58709-90B01×2iBB20,21,RB20..EXS198205-199301

58423PACKING, ENGINE SERVICE HOLE COVER, NO.2

main58741-90B00iBB20,RB20..RHD198205-198409

main58741-90B02iBB20,RB20..LHD198205-198409

58424PACKING, ENGINE SERVICE HOLE COVER, NO.1

main58733-90B00iBB2#,FB30,HB30,RB20198205-199301

58431DSILENCER, ENGINE ROOM SIDE, FRONT RH

main58431-90B00iHZB30199001-199301

main58431-90B01iBB22,23198510-199301

58432BSILENCER, ENGINE ROOM SIDE, REAR RH

main58432-90B00iBB20..DLX,EXS198205-198510

main58432-90B01iRB20..DLX,EXS198205-198510

main58432-90B03iBB20..DLX,EXS198510-198610

main58432-90B04iFB30,HB30,RB20..DLX,EX,EXS198510-199301

main58432-90B05iHDB30,HZB30199001-199301

COLD SPEC

main58432-90B06iBB22198510-198610

main58432-90B07iBB22,23198610-199301

main58432-90B08iBB21..DLX,EXS198610-199301

58433ASILENCER, ENGINE ROOM SIDE END

main58433-90B00iBB20..RHD..(DLX,EXS)198205-198610

main58433-90B01iBB20..LHD..DLX198205-198610

main58433-90B02iRB20..RHD..DLX198205-198610

main58433-90B03iRB20..LHD..(DLX,EXS)198205-198610

main58433-90B04iHDB30199001-199301

main58433-90B05iBB20,21..STD198205-199301

main58433-90B06iBB22,23198510-199301

main58433-90B08iHDB30199001-199301

main58433-90B14iFB30198610-199301

58441DSILENCER, ENGING ROOM SIDE, FRONT LH

main58441-90B00iHZB30199001-199301

main58441-90B01iRB20..DLX,EXS198205-199301

main58441-90B02iBB22198510-198808

main58441-90B03iBB23198808-199301

58442BSILENCER, ENGING ROOM SIDE, REAR LH

main58442-90B00iBB20..DLX,EXS198205-198510

main58442-90B02iRB20..DLX,EXS198205-198510

main58442-90B05iBB20,21..DLX,EXS198510-199301

main58442-90B07iRB20..DLX,EXS198510-199301

main58442-90B09iFB30,HB30198610-199301

main58442-90B10iBB22,23198510-199301

main58442-90B13iHDB30,HZB30199001-199301

58730COVER ASSY, ENGINE SERVICE, REAR

main58730-36010iHZB30..RHD..30S..WC199102-199301

HONG KONG PACKAGE 1

main58730-90B00iBB20,RB20..RHD..DLX198205-198304

main58730-90B00-02iBB21,RB20..RHD..(DLX,STD)198802-198808

DARK WINE,DARK WINE

main58730-90B01iBB20,21,RB20..LHD..(DLX,STD)198304-198802

main58730-90B01-02iBB21,RB20..LHD..(DLX,STD)198802-198808

DARK WINE,DARK WINE

main58730-90B02iHB30..RHD198610-198802

sub58730-90B16

main58730-90B02-02iHB30..RHD198802-198808

DARK WINE,DARK WINE

sub58730-90B16

main58730-90B04iRB20..17S198205-198510

main58730-90B05iBB20,RB20..RHD..STD198205-198304

main58730-90B06iBB20,RB20..LHD..STD198205-198304

main58730-90B09iBB20..16S198303-198510

main58730-90B13iRB20..17S198510-198802

main58730-90B13-02iRB20..17S198802-198808

DARK WINE,DARK WINE

main58730-90B13-06iRB20..17S198808-199301

SABLE,SABLE

main58730-90B14iBB20,21..16S198510-198802

main58730-90B14-02iBB21..16S198802-198808

DARK WINE,DARK WINE

main58730-90B14-06iBB21..16S198808-199205

SABLE,SABLE

main58730-90B17iBB22198510-198802

main58730-90B17-02iBB22198802-198808

DARK WINE,DARK WINE

main58730-90B18iFB30198610-198802

main58730-90B18-02iFB30198802-198808

DARK WINE,DARK WINE

main58730-90B19iHB30..LHD198610-198802

main58730-90B19-02iHB30..LHD198802-198808

DARK WINE,DARK WINE

main58730-90B22-06iBB21,RB20..RHD..STD198808-199301

SABLE,SABLE

main58730-90B23-06iBB21,RB20..LHD..(DLX,STD)198808-199301

SABLE,SABLE

main58730-90B24-06iHB30,HZB30..RHD198808-199301

SABLE,SABLE

sub58730-90B28

main58730-90B29-06iBB23198808-199301

SABLE,SABLE

sub58730-90B32

main58730-90B30-06iHB30,HZB30..LHD198808-199301

SABLE,SABLE

main58730-90B31-06iFB30198808-199301

SABLE,SABLE

main58730-90B33iHZB30..RHD..30S..WC199012-199301

HONG KONG PACKAGE 2

58734BWEATHERSTRIP, ENGINE SERVICE COVER, REAR

main58734-90B00iBB20,RB20198205-198409

58742AWEATHERSTRIP, ENGINE SERVICE COVER, REAR OUTER

main58742-90B00iBB20,RB20198205-198409

76621AMUDGUARD, FRONT BODY, FRONT RH

main76621-90B00iBB2#,HB30,HZB30,RB20..RHD198205-199301

main76622-90B00iBB20,21,FB30,HB30,HZB30,RB20..LHD198205-199301

76622AMUDGUARD, FRONT BODY, FRONT LH

main76621-90B00iBB20,21,FB30,HB30,HZB30,RB20..LHD198205-199301

main76622-90B00iBB2#,HB30,HZB30,RB20..RHD198205-199301

76623MUDGUARD, FRONT BODY, REAR RH

main76623-90B01iBB20,21,FB30,HB30,HZB30,RB20..LHD198205-199301

main76623-90B02iBB2#,HB30,HZB30,RB20..RHD198205-199301

76624MUDGUARD, FRONT BODY, REAR LH

main76624-90B00iBB20,21,22,HB30,HZB30,RB20..RHD198205-199301

main76624-90B01iBB20,21,FB30,HB30,HZB30,RB20..LHD198205-199301

76661ABRACE, FRONT MUDGUARD, FRONT RH

main76661-90B00iFB30,HB30,HZB30198610-199301

76662ABRACE, FRONT MUDGUARD, FRONT LH

main76662-90B00iBB20,RB20198205-198510

main76662-90B01iBB2#,RB20198510-199301

76663SHIELD, FRONT MUDGUARD

main76663-90B00×2iBB2#,FB30,HB30,HZB30,RB20198205-199301

0995006037

main09950-06037

9011906034

main90119-06034

9011906094

main90119-06094

9011906166

main90119-06166

9015960038

main90159-60038

9015960086

main90159-60086

9015960187

main90159-60187

9017908025

main90179-08025

9018906031

main90189-06031

9044010043

main90440-10043

9044011043

main90440-11043

9046708008

main90467-08008

9046708011

main90467-08011

9046712041

main90467-12041

9046808008

main90468-08008

9048010300

main90480-10300

9048015002

main90480-15002

9054010022

main90540-10022

9095001027

main90950-01027

9095001095

main90950-01095

9095001126

main90950-01126

9095001130

main90950-01130

9095001269

main90950-01269

9095001308

main90950-01308

9095001399

main90950-01399

9095001429

main90950-01429

9095001450

main90950-01450

9095001455

main90950-01455

9095003116

main90950-03116

9095006001

main90950-06001

9095901033

main90959-01033

9095901235

main90959-01235

9163140610

main91631-40610

9165140616

main91651-40616

9165160614

main91651-60614

9165540616

main91655-40616

9165540816

main91655-40816

9165660820

main91656-60820

9166160835

main91661-60835

9331116008

main93311-16008

9351015010

main93510-15010

9351015012

main93510-15012

9353023512

main93530-23512

9353053512

main93530-53512

9354015010

main93540-15010

9354015012

main93540-15012

9538103015

main95381-03015

82 parts on this diagram · 4 diagrams in section
