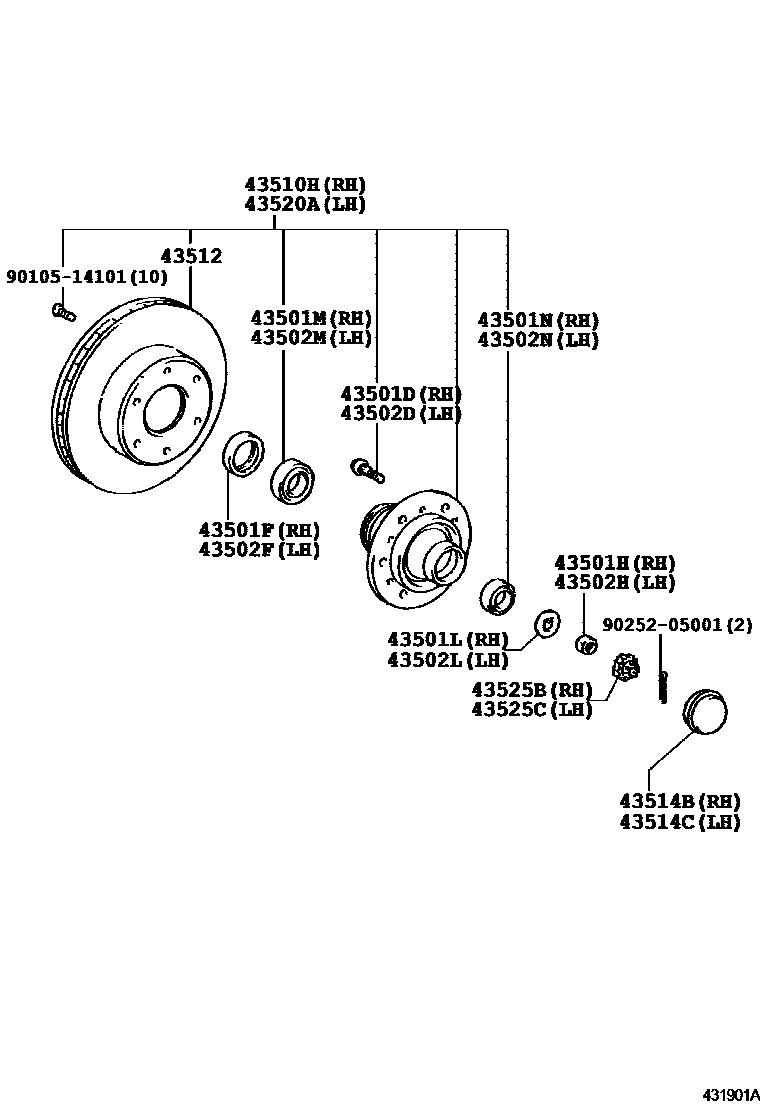

Toyota COASTER — FRONT AXLE HUB
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02071×5iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)200408-201501
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)
main90214-29001iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
main90366-50069iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)200408-201501
43501NBEARING (FOR FRONT AXLE HUB OUTER RH)
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
43502NBEARING (FOR FRONT AXLE HUB OUTER LH)
main90366-35105iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108
43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH
W(ABS)
W(ABS)
43512DISC, FRONT
W(ABS)
43514BCAP, FRONT AXLE HUB GREASE, RH
43514CCAP, FRONT AXLE HUB GREASE, LH
main43514-37030iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)199907-200408
43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH
W(ABS)
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
9010514101
main90105-14101
9025205001
main90252-05001
23 parts on this diagram · 4 diagrams in section
FRONT AXLE HUB for Toyota COASTER
This section contains 33 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COASTER. Key components include: DISC WHEEL & WHEEL CAP, BOLT, FRONT WHEEL CAP SET, SPACER, STEERING KNUCKLE, PIECE, BALANCE (FOR FRONT BRAKE DRUM), BOLT, HUB (FOR FRONT AXLE RH).
