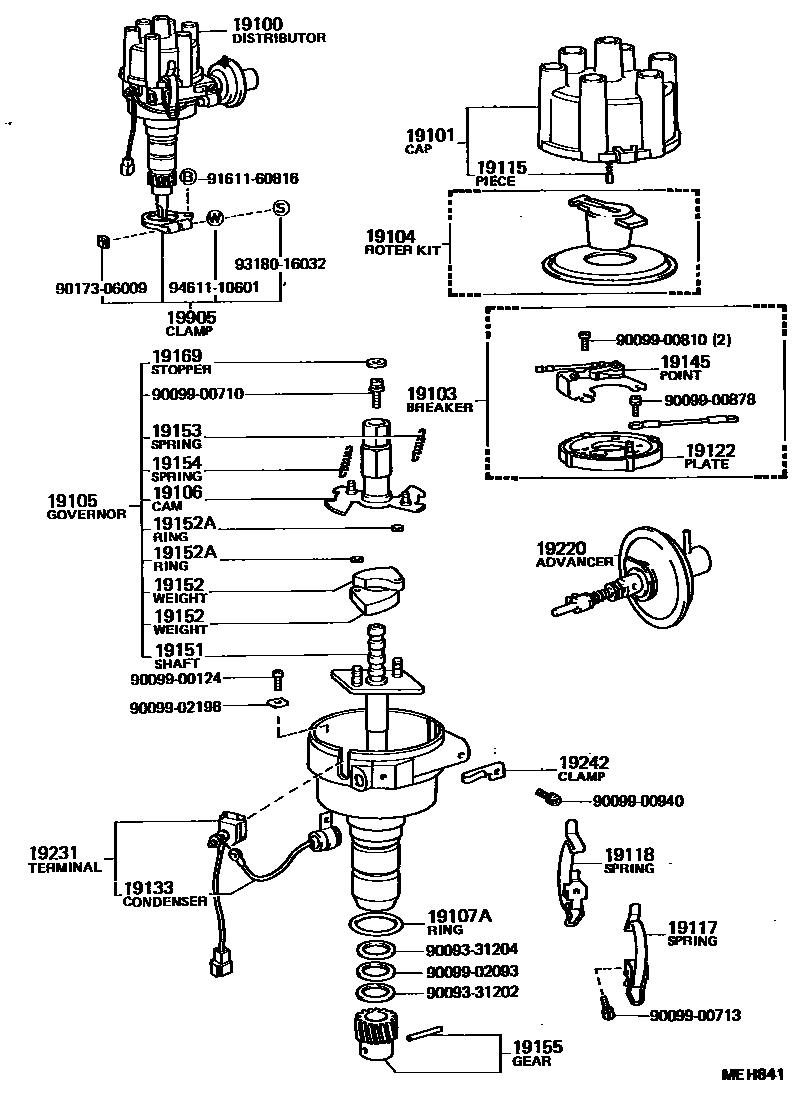

Toyota COASTER — DISTRIBUTOR
19100DISTRIBUTOR ASSY
CHINA SPEC
19101CAP SUB-ASSY, DISTRIBUTOR
19103BREAKER SUB-ASSY, DISTRIBUTOR
19104ROTOR KIT
19106CAM SUB-ASSY, DISTRIBUTOR
19107ARING, O, DISTRIBUTOR HOUSING
sub90099-14090
19115PIECE, DISTRIBUTOR CAP, CENTER
19117SPRING, DISTRIBUTOR CAP, A
19118SPRING, DISTRIBUTOR CAP, B
19122PLATE, STATIONARY, DISTRIBUTOR
19133CONDENSER, DISTRIBUTOR
19145POINT, DISTRIBUTOR
19152WEIGHT, GOVERNOR
19152ARING, SNAP(FOR GOVERNOR WEIGHT)
19153SPRING, GOVERNOR, A
CHINA SPEC
19154SPRING, GOVERNOR, B
CHINA SPEC
19155GEAR, SPIRAL, DISTRIBUTOR
19169STOPPER, CAM GREASE
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
CHINA SPEC
19231TERMINAL, DISTRIBUTOR
19905CLAMP SUB-ASSY, DISTRIBUTOR
9009331202
main90093-31202
9009331204
main90093-31204
9009900124
main90099-00124
9009900710
main90099-00710
9009900713
main90099-00713
9009900810
main90099-00810
9009900878
main90099-00878
9009900940
main90099-00940
9009902093
main90099-02093
9009902198
main90099-02198
9017306009
main90173-06009
9161160816
main91611-60816
9318016032
main93180-16032
9461110601
main94611-10601
38 parts on this diagram · 3 diagrams in section
