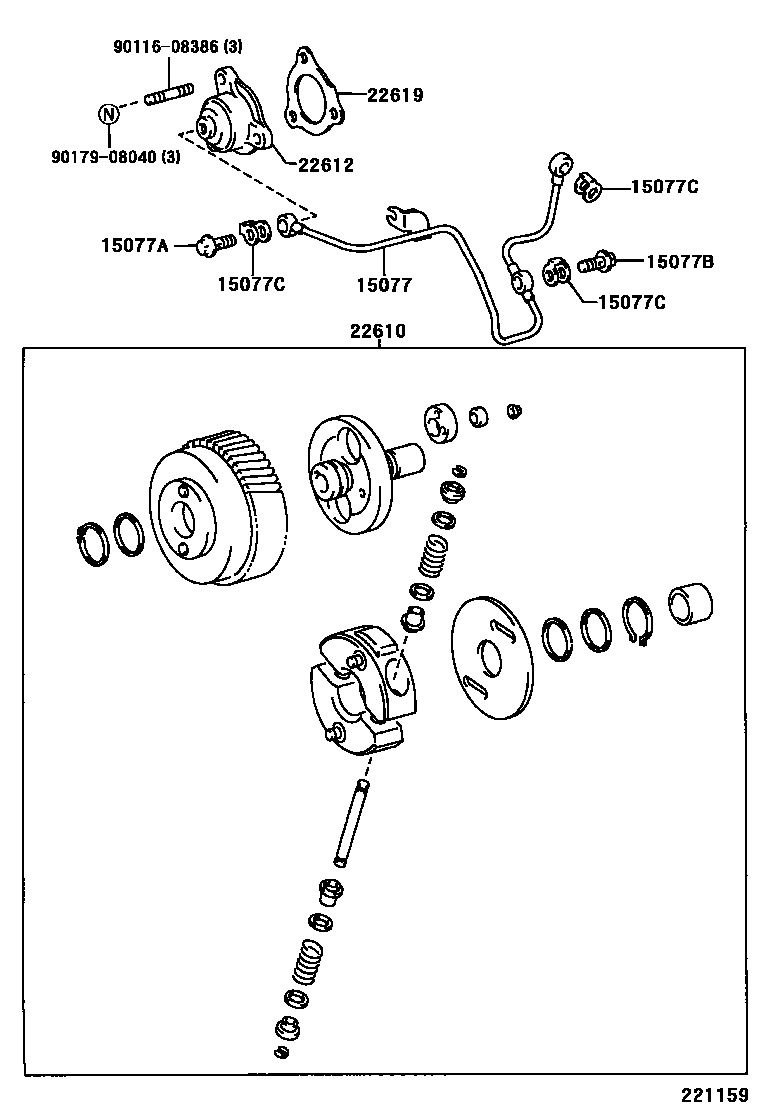

Toyota COASTER — AUTOMATIC TIMER

15077PIPE SUB-ASSY, AUTOMATIC TIMER OIL

main15077-58010i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-200408

15077AUNION, NO.1(FOR AUTOMATIC TIMER OIL PIPE)

main90401-10059i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-200408

15077BUNION, NO.2(FOR AUTOMATIC TIMER OIL PIPE)

main90401-10026i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-200408

15077CGASKET, NO.1(FOR AUTOMATIC TIMER OIL PIPE)

main90904-30007i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-200408

22610TIMER ASSY, AUTOMATIC

main22610-58350i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-200408

22612COVER, TIMER

main22650-58350i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-200408

22619GASKET, TIMER COVER

main22619-58350i15BFT..BB50..EUR;15BFT..BB43,50..CBU199605-200408

9011608386

main90116-08386

9017908040

main90179-08040

9 parts on this diagram · 1 diagram in section
