Toyota COASTER — ASH RECEPTACLE
74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE
74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74130CRECEPTACLE ASSY, REAR ASH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130DRECEPTACLE ASSY, REAR ASH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130ERECEPTACLE ASSY, REAR ASH, NO.3 RH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130FRECEPTACLE ASSY, REAR ASH, NO.4 RH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130GRECEPTACLE ASSY, REAR ASH, NO.5 RH
W(REAR NO.4-NO.7 SEAT = 2 PERSONS + 2 PERSONS),CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130HRECEPTACLE ASSY, REAR ASH, NO.6 RH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130JRECEPTACLE ASSY, REAR ASH, NO.7 RH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130KRECEPTACLE ASSY, REAR ASH, NO.1 LH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130LRECEPTACLE ASSY, REAR ASH, NO.2 LH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130MRECEPTACLE ASSY, REAR ASH, NO.3 LH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130NRECEPTACLE ASSY, REAR ASH, NO.4 LH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130PRECEPTACLE ASSY, REAR ASH, NO.5 LH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130QRECEPTACLE ASSY, REAR ASH, NO.6 LH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74130RRECEPTACLE ASSY, REAR ASH, NO.7 LH
CHARCOAL,TRIM1#
GREIGE,TRIM4#
CHARCOAL,TRIM1#
74145APLATE, REAR ASH RECEPTACLE
74145BPLATE, REAR ASH RECEPTACLE, NO.2 RH
74145CPLATE, REAR ASH RECEPTACLE, NO.3 RH
74145DPLATE, REAR ASH RECEPTACLE, NO.4 RH
74145FPLATE, REAR ASH RECEPTACLE, NO.5 RH
74145GPLATE, REAR ASH RECEPTACLE, NO.6 RH
74145HPLATE, REAR ASH RECEPTACLE, NO.7 RH
74145JPLATE, REAR ASH RECEPTACLE, NO.1 LH
74145KPLATE, REAR ASH RECEPTACLE, NO.2 LH
74145LPLATE, REAR ASH RECEPTACLE, NO.3 LH
74145MPLATE, REAR ASH RECEPTACLE, NO.4 LH
74145NPLATE, REAR ASH RECEPTACLE, NO.5 LH
74145PPLATE, REAR ASH RECEPTACLE, NO.6 LH
74145QPLATE, REAR ASH RECEPTACLE, NO.7 LH
9015050006
main90150-50006
9015950068
main90159-50068
9326915010
main93269-15010

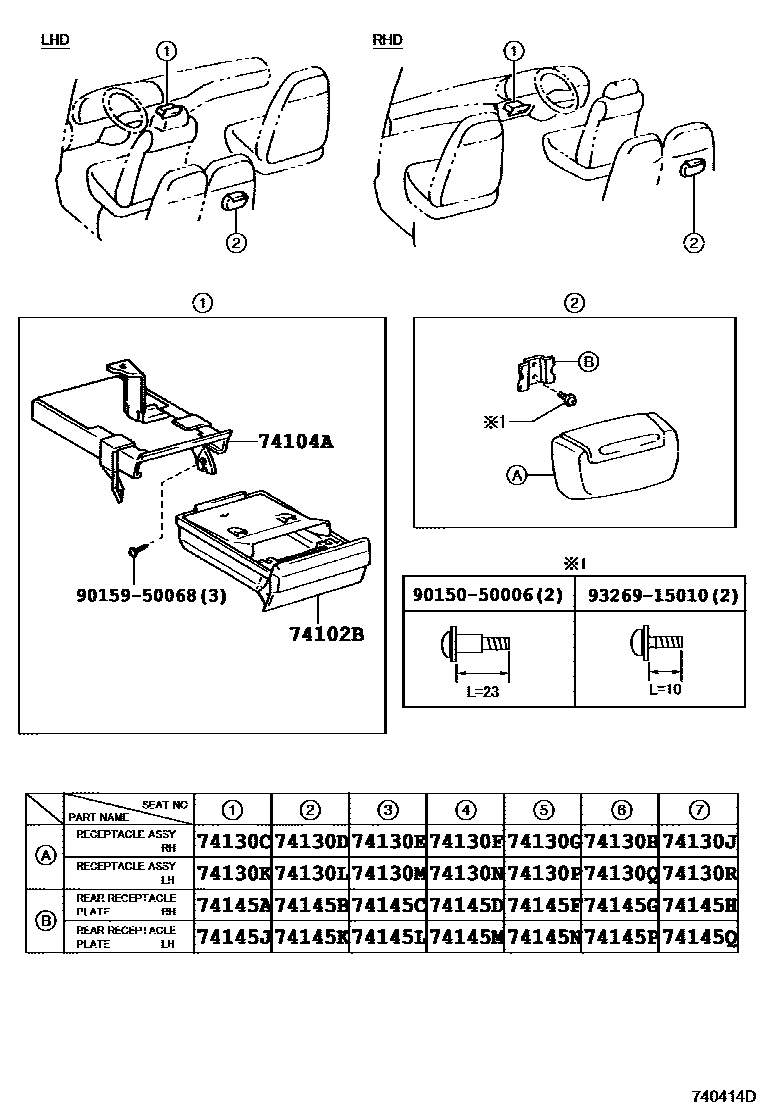

33 parts on this diagram · 1 diagram in section
ASH RECEPTACLE for Toyota COASTER
This section contains 33 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota COASTER. Key components include: BOX SUB-ASSY, FRONT ASH RECEPTACLE, RETAINER SUB-ASSY, FRONT ASH RECEPTACLE, RECEPTACLE ASSY, REAR ASH, RECEPTACLE ASSY, REAR ASH, NO.3 RH.
