Toyota COASTER — ARMREST & VISOR

55615GRIP, ASSIST

main55615-90740i197708-198204

74310VISOR ASSY, RH

main74340-90740i197708-198204

main74340-90742i197708-198204

74320VISOR ASSY, LH

main74340-90741i197708-198204

main74340-90743i197708-198204

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-20010-05i197708-198204

BEIGE,BEIGE

74613PLUG, ASSIST GRIP

main74617-12020-05×2i197708-198204

BEIGE,BEIGE

74710EXTINGUISHER ASSY

main74710-90508i197708-197911

main74710-90742i197911-198204

main74710-90744i197911-198204

74810PULL ASSY, DOOR, INSIDE

main69151-95A00i197708-198204

9321016014

main93210-16014

9324915012

main93249-15012

9331116016

main93311-16016

9331514020

main93315-14020

9331515016

main93315-15016

9354015020

main93540-15020

13 parts on this diagram · 1 diagram in section

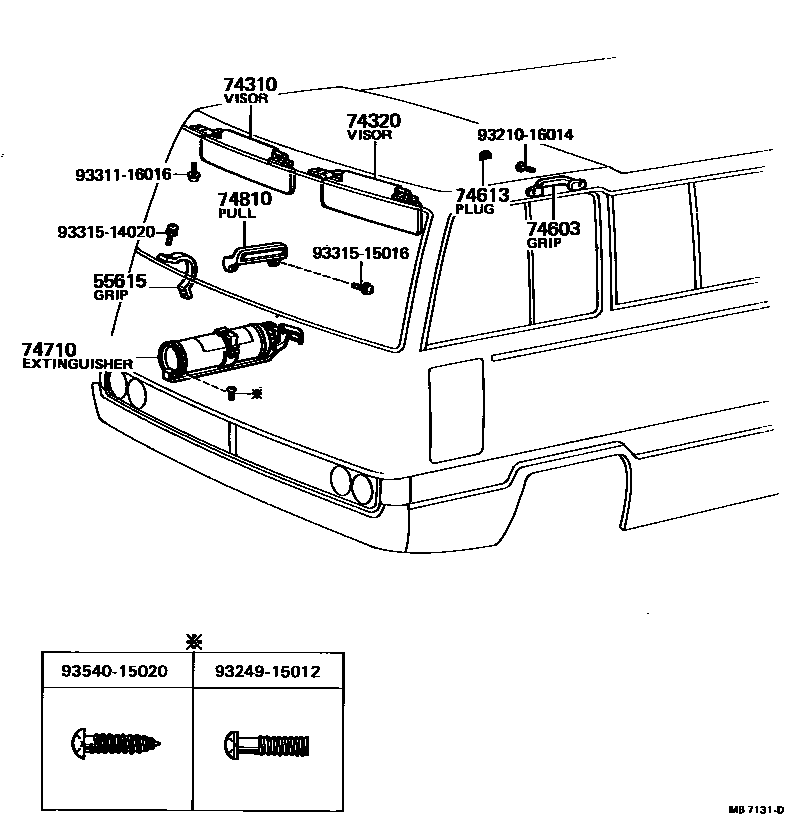

ARMREST & VISOR for Toyota COASTER

This section contains 13 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COASTER. Key components include: GRIP, ASSIST, VISOR ASSY, RH, VISOR ASSY, LH, GRIP SUB-ASSY, ASSIST, FRONT, PLUG, ASSIST GRIP.
