Toyota COASTER — ANTENNA

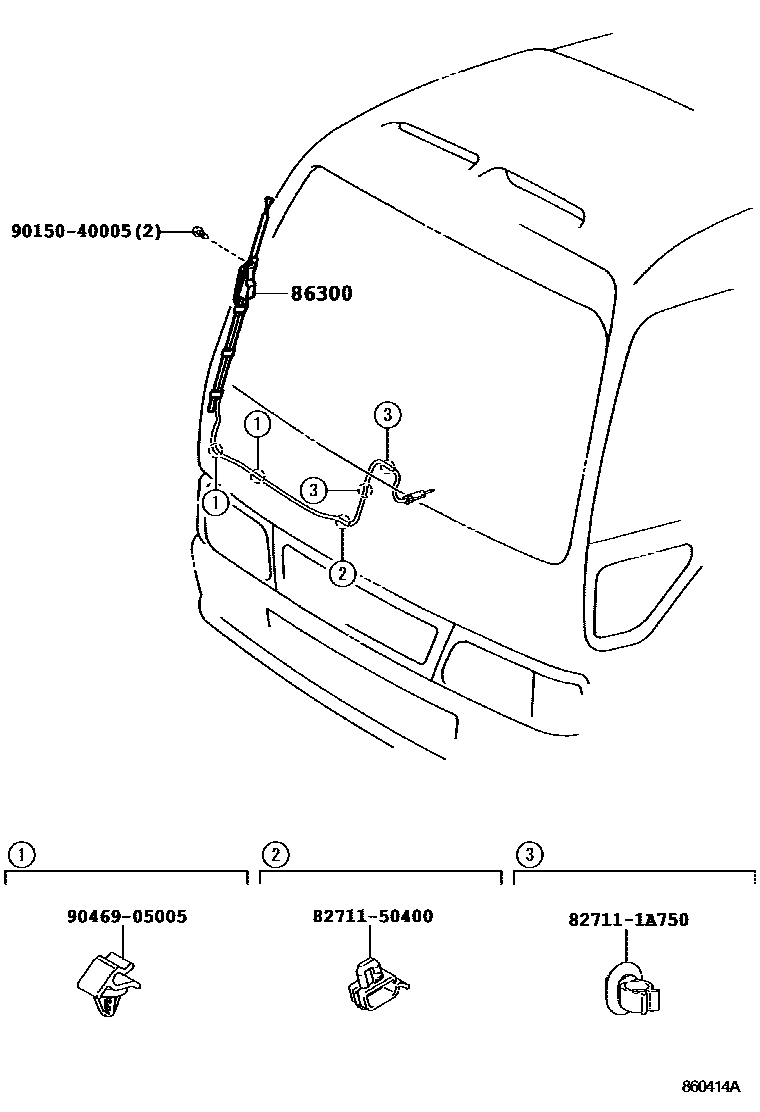

Parts diagram

86300ANTENNA ASSY, W/HOLDER

main86300-36030i199301-199505

main86300-36040i200408-200708

main86300-36060i200708-201501

main86300-36070i201005-201108

main86300-36080i201501

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

8271150400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50400

9015040005

main90150-40005

9046905005

main90469-05005

5 parts on this diagram · 3 diagrams in section

ANTENNA for Toyota COASTER

This section contains 6 genuine Toyota parts for the ANTENNA system of the Toyota COASTER. Key components include: CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
