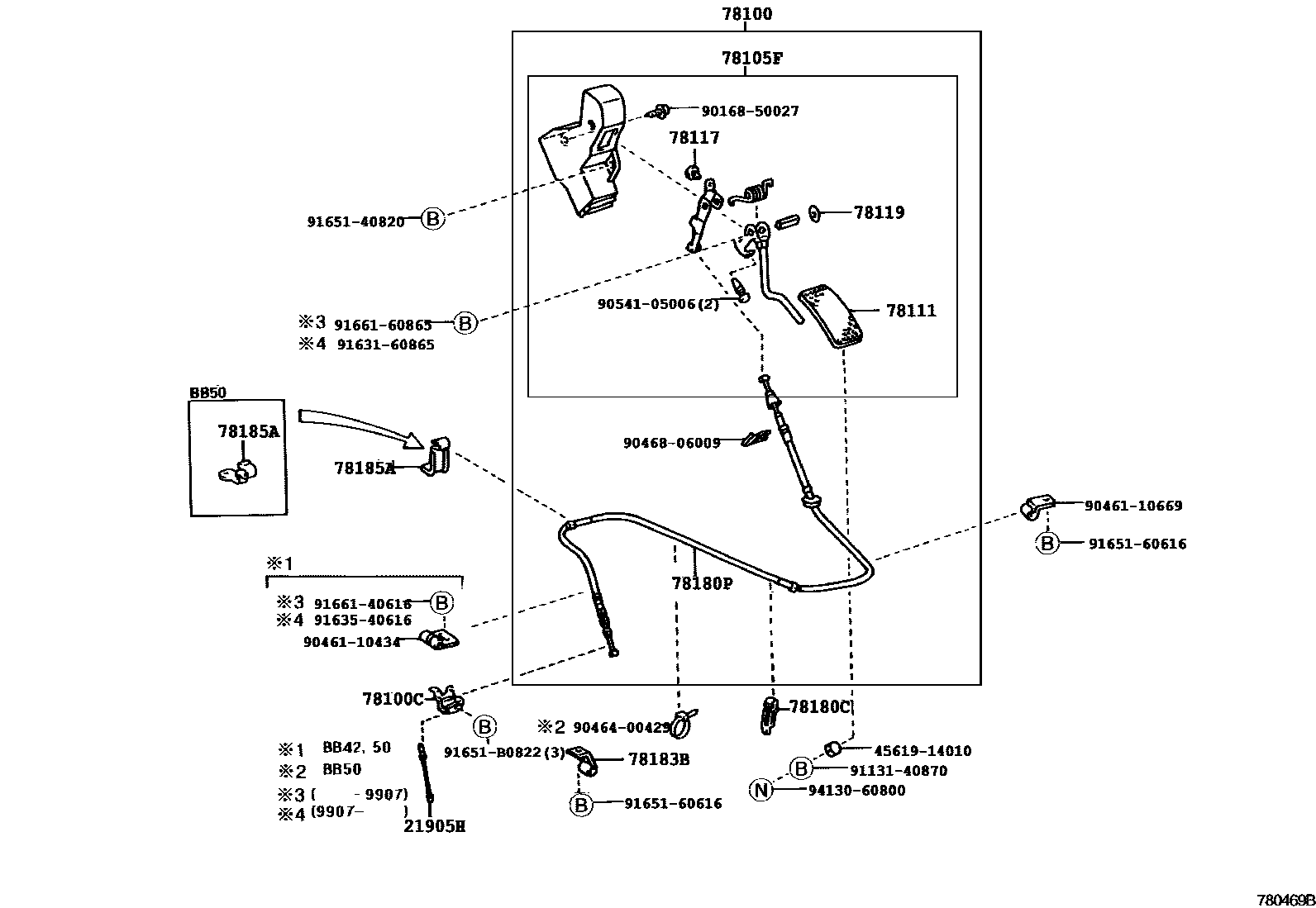

Toyota COASTER — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0016 1 0018 1 0019 1 0020 1

21905HROD SUB-ASSY, ACCELERATOR CONNECTING

main21905-58061i15BFT..BB50..STD..WC..IV..5F199907-200105

main21905-58090i15BFT..BB50..CHI199907-200211

78100LINK ASSY, ACCELERATOR

main78010-36010iBB50,59..RHD..TDEFI200105-200406

main78010-36011iBB50,59..RHD200408-200608

main78010-36020iBB50,58..LHD..TDEFI199907-200406

main78010-36021iBB50,58..LHD..TDEFI200407-200408

main78010-36030iXZB40,5#..RHD200608-201501

main78010-36031iXZB40,5#..RHD201501-201509

main78010-36032iXZB40,5#..RHD201510-201611

sub78010-36060

main78010-36040iTRB40,50,XZB40,50..LHD201501-201509

main78010-36041iTRB40,50,XZB40,50..LHD201510-201611

sub78010-36070

main78100-36010iBB40199301-199705

main78100-36011iBB40199705-199907

main78100-36020iHZB50..WC..GEN..4FC199505-199907

sub78105-36030

sub90468-06009

main78100-36030iBB42..RHD199301-199705

main78100-36031iBB42..RHD199705-199907

sub90468-06009

main78100-36040iBB42..LHD..WC..GEN199301-199505

*EX-USSR SPEC & COLD AREA SPEC OR CHINA SPEC

sub90468-06009

main78100-36050iHZB50..LHD199301-199302

sub90468-06009

main78100-36060iRZB40,50199309-199705

main78100-36070iHZB50..RHD..5F199301-199907

sub90468-06009

main78100-36080iBB42..LHD199301-199907

sub90468-06009

main78100-36100iHZB50..LHD..TD199302-199505

main78100-36130iBB50..RHD..6F199907-200105

main78100-36140iBB50..LHD..EUR199605-199907

main78100-36170iBB43,50..RHD..5F199907-200108

main78100-36180iBB50..WC..CBU199705-199907

main78100-36181iBB50..LHD..CBU200006-200107

sub78100-36182

main78100-36190iBB58;BB50..WC..GEN..IV199705-199907

main78100-36191iBB50..STD..IV..5F199907-200108

main78100-36200iRZB40,50199705-199907

78100CLINK ASSY, ACCELERATOR, NO.2

main78100-36160iBB50..EUR;BB43,50..CBU199605-199907

main78100-37491iBB50..STD..WC..IV..5F199907-200105

78105FLINK SUB-ASSY, ACCELERATOR

main78105-36020iBB50..TD;BB42..LHD..SRF200408-201501

main78105-36040iHZB50..RHD..HRF..STD..WC..GEN..5F199907-200408

*EX-USSR SPEC & COLD AREA SPEC OR CHINA SPEC

main78105-36041iBB42,BZB40,50,HZB50..RHD201501-201612

main78105-36050iHZB50..LHD200408-200907

main78105-36051iHZB50..LHD201501-201612

main78105-36060iBB42..LHD199907-200312

78111PEDAL, ACCELERATOR

main78111-95110iRZB40..HRF..GCC200408-200602

78117CUSHION (FOR ACCELERATOR ROD)

main90541-06036iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

main90541-06038iTRB40,50,XZB40,59;XZB50..(20S,21S)..WC200503-201501

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-95J00iBB42..LHD..WOC200408-200701

*EX-USSR COLD AREA SPEC

sub78119-37010

78180CSPRING, TENSION (FOR ACCELERATOR WIRE)

main78188-36020iBB43,50..RHD..CBU199705-199907

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-36010iBB40199301-199705

main78180-36011iBB40199705-199907

main78180-36020iHZB50..4FC199907-200108

main78180-36030iBB42..RHD199301-199705

main78180-36031iBB42..RHD199705-199907

main78180-36040iBB42..LHD..WOC..GEN199505-199907

CHINA SPEC

main78180-36050iHZB50..LHD201501

main78180-36060iRZB40,50199309-199705

main78180-36070iHZB50..RHD200408-201501

main78180-36080iBB42..LHD199301-199907

main78180-36100iHZB50..LHD..TD199302-199505

main78180-36130iBB50..RHD..6F199907-200105

main78180-36140iBB50..LHD..EUR199605-199907

main78180-36160iRZB40,50..CHI199907-200211

main78180-36170iBB43,50..RHD..CBU199705-199907

main78180-36180iBB50..STD..CBU199907-200006

main78180-36181iBB50..LHD..CBU200006-200107

main78180-36182iBB50..TD200408-200507

main78180-36183iBB50..TD200507-201501

main78180-36190iBB58;BB50..WC..GEN..IV199705-199907

main78180-36191iBB50..STD..WC..IV..5F199907-200105

main78180-36200iRZB40,50199705-199907

main78180-36270iBZB40,50..STD200408-201501

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-36010iBB42..RHD..WC;BB42..RHD..SRF199907-200408

main78183-36020iHZB50..LHD200408-201501

main78183-36030iBB42..LHD199301-199303

main78183-36040iRZB40,50199309-199907

NO.2

main78183-36050iBB43,50..RHD..5F199907-200108

main78183-36060iBZB40,50,HZB50..RHD..STD200408-201501

main78183-37240iBB50..STD..WC..IV..5F199907-200105

main90461-10650iBB42..LHD;BB50..LHD..EUR199303-199907

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-36010iHZB50200408-201501

main78185-36020iBB42..LHD..SRF200408-201501

NO.1

main78185-36030iBB42..LHD..SRF200408-201501

NO.2

main78185-36040iRZB40,50199309-199907

main78185-36060iRZB40,50..CHI199907-200211

main78185-36090iBZB40,50200108-200408

main78187-36020iBB50..RHD..6F199907-200105

main78187-36030iBB43,50..RHD..CBU199705-199907

4561914010COVER, KNUCKLE STOPPER

main45619-14010

9016850027

main90168-50027

9046110434

main90461-10434

9046110669

main90461-10669

9046400429

main90464-00429

9046806009

main90468-06009

9054105006

main90541-05006

9113140870

main91131-40870

9163160865

main91631-60865

9163540616

main91635-40616

9165140820

main91651-40820

9165160616

main91651-60616

91651B0822

main91651-B0822

9166140616

main91661-40616

9166160865

main91661-60865

9413060800

main94130-60800

27 parts on this diagram · 18 diagrams in section
