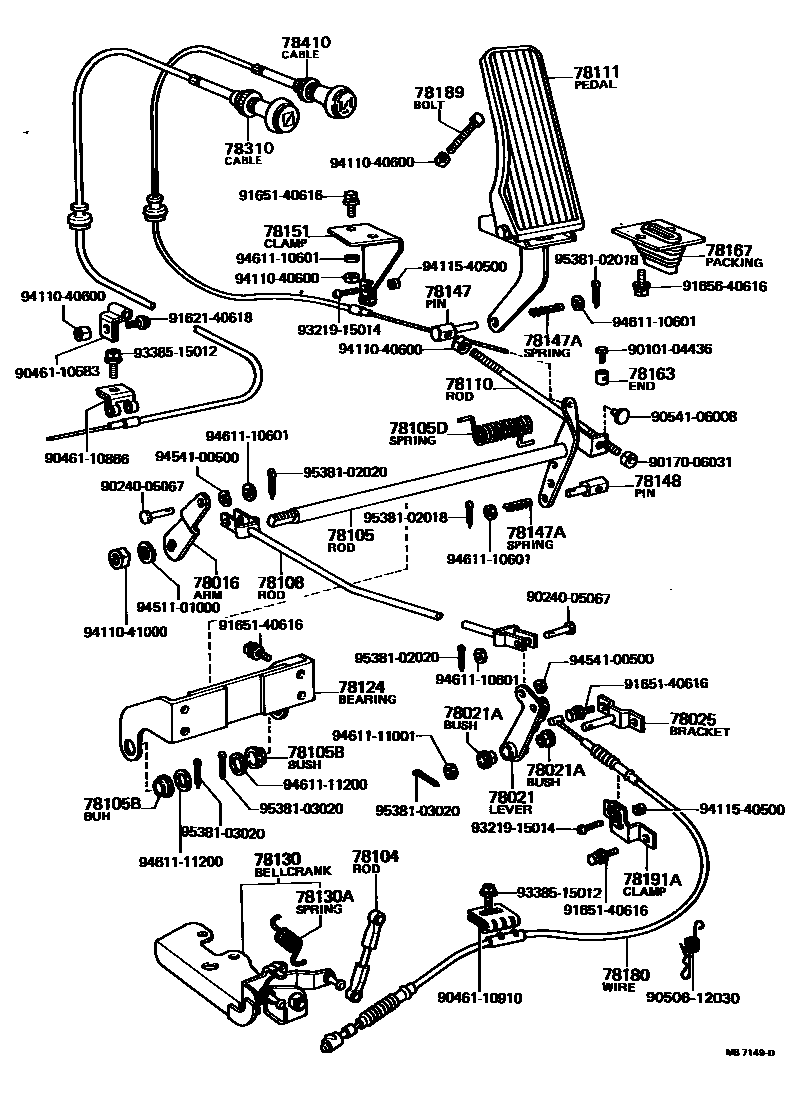

Toyota COASTER — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78016ARM SUB-ASSY, ACCELERATOR LINK ROD

main78145-90502iBB10,RB1#197708-197911

main78145-90503iBB10,RB1#197911-198204

78021LEVER SUB-ASSY, ACCELERATOR CONTROL, NO.1

main78106-90502iBB10,RB10197708-198011

main78106-90740iRB11,13197708-198101

main78106-90742iBB10198011-198204

main78106-90743iRB13198101-198204

78021ABUSH, ACCELERATOR CONTROL LEVER

main90386-10150×2iBB10,RB1#197708-198204

78025BRACKET SUB-ASSY, ACCELERATOR CONNECTING ROD ARM

main78105-90500iBB10,RB1#197708-198204

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-20041iRB10197708-197911

78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3

main78103-90506iBB10,RB1#..RHD197708-197911

main78103-90507iBB10,RB1#..LHD198006-198204

main78103-90508iBB10..RHD197911-198006

main78103-90509iBB10..LHD197911-198006

78105BBUSH (FOR ACCELERATOR TORQUE ROD)

main90386-12017×2iBB10,RB1#197911-198204

main90386-12151×2iBB10,RB1#197708-197911

78105DSPRING (FOR ACCELERATOR TORQUE ROD)

main90508-23035iBB10,RB1#..RHD197911-198204

main90508-23036iBB10,RB1#..LHD197911-198204

main90508-23310iBB10,RB1#..LHD197708-197911

main90508-23311iBB10,RB1#..RHD197708-197911

78108ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4

main78107-90502iBB10,RB1#197708-198204

78110ROD ASSY, ACCELERATOR PEDAL

main78121-90504iBB10,RB1#197708-198204

78111PEDAL, ACCELERATOR

main78110-90501iBB10,RB1#197708-197911

main78110-90502iBB10,RB1#197911-198204

78124BEARING, ACCELERATOR LINK, NO.1

main78108-90500iBB10,RB1#..RHD197708-197911

main78108-90501iBB10,RB1#..LHD197708-198204

main78108-90502iBB10,RB1#..RHD197911-198204

78130BELLCRANK ASSY, ACCELERATOR

main78130-36014iRB10197708-197911

sub78130-95111

78130ASPRING (FOR ACCELERATOR ROD RETURN)

main90508-16087iRB10197708-197911

78147PIN, CONNECTING ROD, RH

main78147-90011iBB10,RB1#197708-198204

78147ASPRING, ACCELERATOR ROD PIN

main90501-10005×2iBB10,RB1#197708-198204

78148PIN, CONNECTING ROD, LH

main78145-90011iBB10,RB1#197708-198204

78151CLAMP, THROTTLE WIRE

main78151-90740iBB10,RB1#197708-198204

78163END, FLEXIBLE WIRE

main78163-55020×2iBB10,RB1#197708-198204

78167PACKING, ACCELERATOR PEDAL HINGE

main78167-90503iBB10,RB1#197708-198204

78180WIRE ASSY, ACCELERATOR

main78120-90506iRB10197708-197911

main78120-90740iBB10197708-198204

78189BOLT, ACCELERATOR PEDAL STOPPER

main78107-95A00iBB10,RB1#198007-198204

main91131-40650iBB10,RB1#197708-198007

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main78149-90740iBB10,RB10197708-198204

78310CABLE ASSY, CHOKE

main78310-90505iRB10..LHD197708-197911

main78310-90506iRB10..RHD197708-197911

78410CABLE ASSY, THROTTLE CONTROL

main78410-90504iBB10,RB1#..RHD197708-198204

main78410-90505iBB10,RB1#..LHD197708-198204

9010104436

main90101-04436

9017006031

main90170-06031

9024005067

main90240-05067

9046110583

main90461-10583

9046110910

main90461-10910

9050612030

main90506-12030

9054106008

main90541-06008

9162140618

main91621-40618

9165140616

main91651-40616

9165640616

main91656-40616

9321915014

main93219-15014

9338515012

main93385-15012

9411040600

main94110-40600

9411041000

main94110-41000

9411540500

main94115-40500

9451101000

main94511-01000

9454100500

main94541-00500

9461110601

main94611-10601

9461111001

main94611-11001

9461111200

main94611-11200

9538102018

main95381-02018

9538102020

main95381-02020

9538103020

main95381-03020

48 parts on this diagram · 6 diagrams in section
