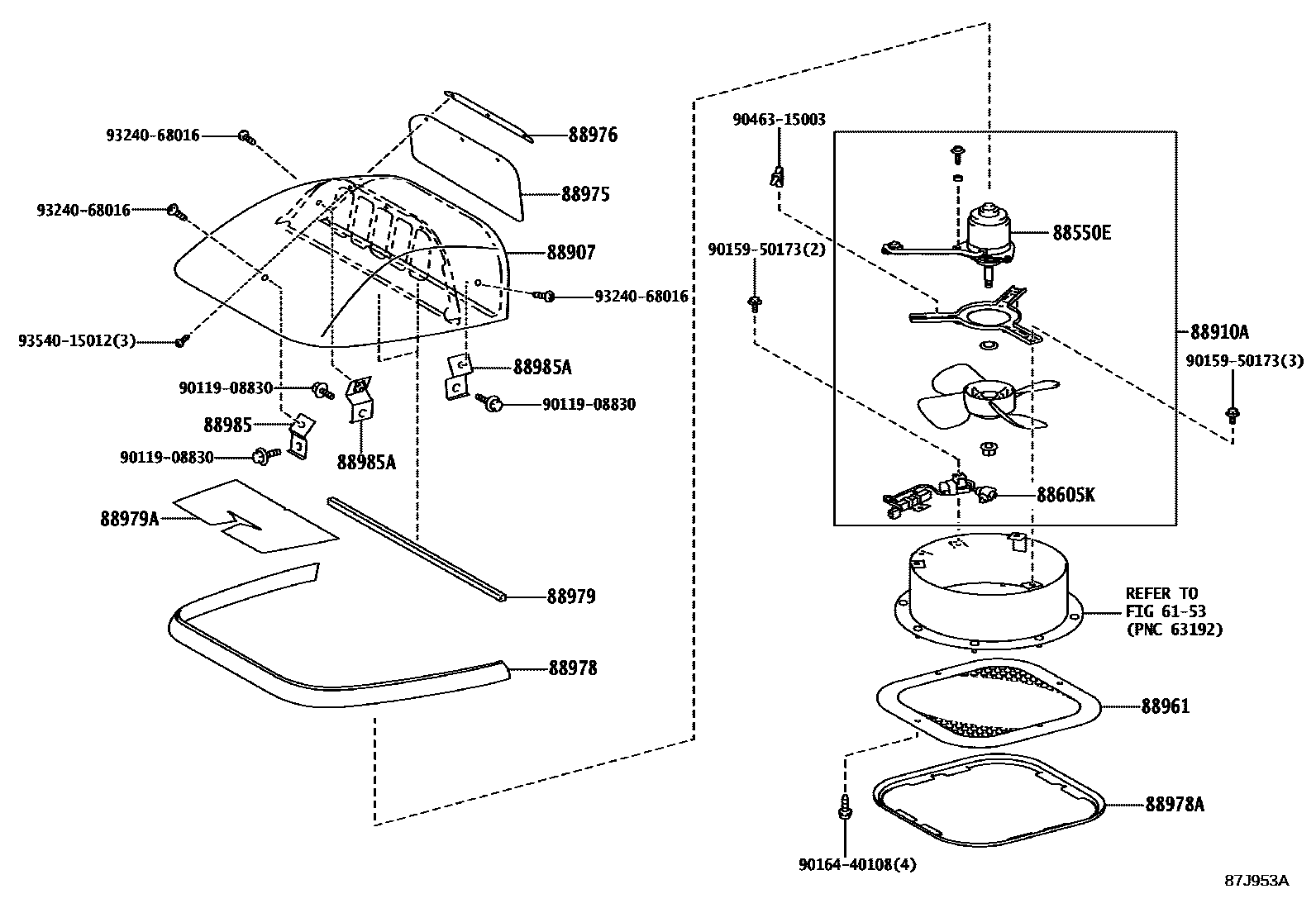

Toyota COASTER FUELCELL — VENTILATOR
6153ROOF PANEL & BACK PANEL
88550EMOTOR ASSY, BLOWER
88605KHARNESS SUB-ASSY, WIRING AIR CONDITIONER
88907COVER SUB-ASSY, BOOST VENTILATOR
SUPER WHITE 2,040
88910AVENTILATOR ASSY, BOOST
88961GRILLE, BOOST VENTILATOR
IVORY,TRIM4#
88975BUTTERFLY, BOOST VENTILATOR
88976PLATE, BOOST VENTILATOR BUTTERFLY
88978TRIM, BOOST VENTILATOR COVER
88978ATRIM, BOOST VENTILATOR COVER NO.2
IVORY,TRIM4#
88979SEAL, BOOST VENTILATOR
88979ASEAL, BOOST VENTILATOR NO.2
88985BRACKET, BOOST VENTILATOR
88985ABRACKET, BOOST VENTILATOR NO.2
9011908830
main90119-08830
9015950173
main90159-50173
9016440108
main90164-40108
9046315003
main90463-15003
9324068016
main93240-68016
9354015012
main93540-15012
20 parts on this diagram · 1 diagram in section
VENTILATOR for Toyota COASTER FUELCELL
This section contains 20 genuine Toyota parts for the VENTILATOR system of the Toyota COASTER FUELCELL. Key components include: ROOF PANEL & BACK PANEL, MOTOR ASSY, BLOWER, HARNESS SUB-ASSY, WIRING AIR CONDITIONER, COVER SUB-ASSY, BOOST VENTILATOR, VENTILATOR ASSY, BOOST.
