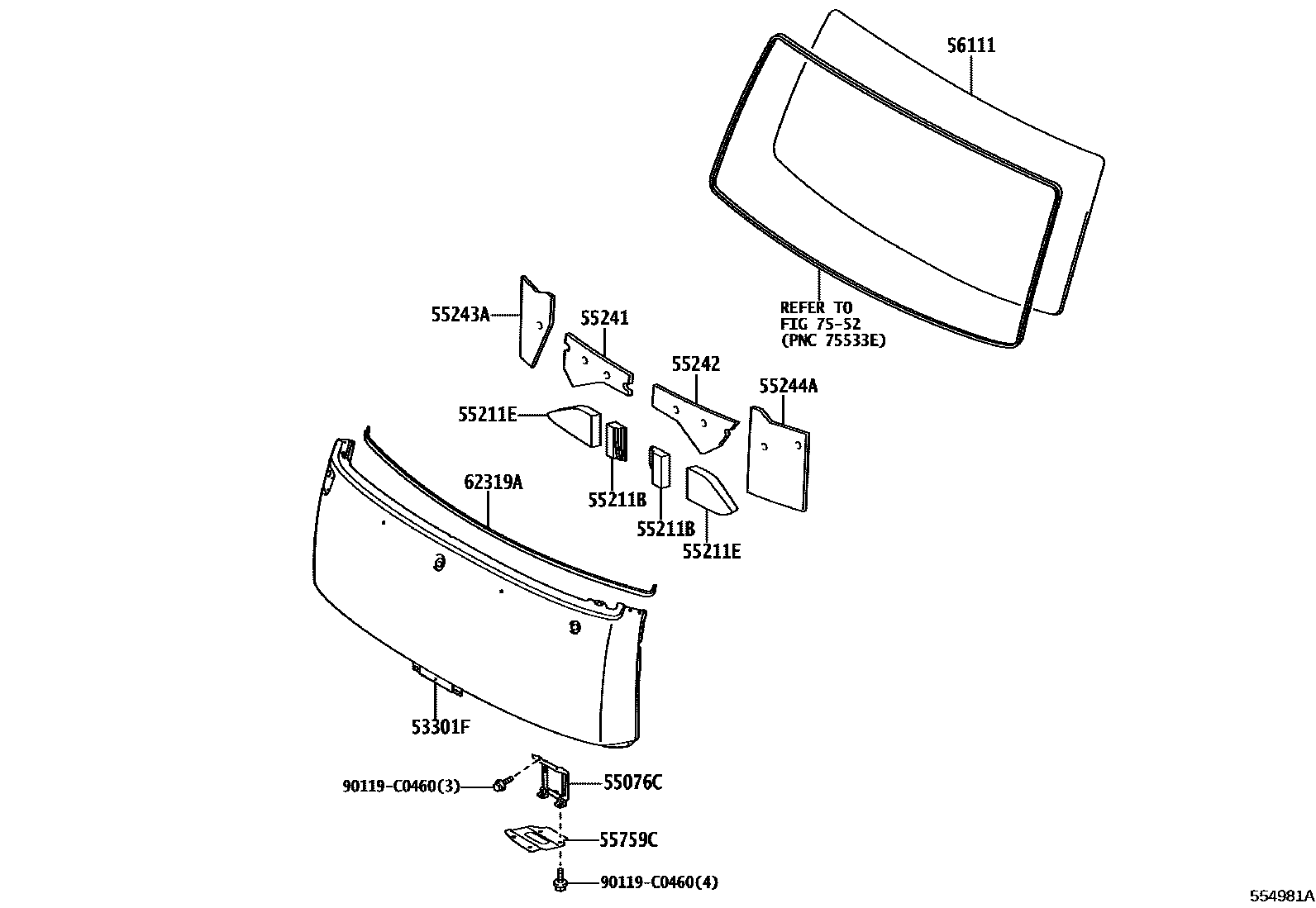

Toyota COASTER FUELCELL — FRONT PANEL & WINDSHIELD GLASS

53301FPANEL SUB-ASSY, FRONT

main53301-0S040iKMB53202108

55076CNET SUB-ASSY, AIR DUCT

main55076-36010iKMB53202108

55211BSILENCER, FRONT PANEL

main55246-0S030×2iKMB53202108

55211ESILENCER, FRONT PANEL

main55246-0S040×2iKMB53202108

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-0S020iKMB53202108

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-0S020iKMB53202108

55243ASILENCER, FRONT PANEL SIDE, NO.2 RH

main55243-0S020iKMB53202108

55244ASILENCER, FRONT PANEL SIDE, NO.2 LH

main55244-0S020iKMB53202108

55759CCOVER, HEATER AIR DUCT

main55759-0S020iKMB53202108

56111GLASS, WINDSHIELD

main56100-0S010iKMB53202108

sub56100-0S050

62319APROTECTOR, FRONT PANEL

main62319-0S010-C0iKMB53202108

BLACK,TRIM4#

7552

90119C0460

main90119-C0460

13 parts on this diagram · 1 diagram in section
