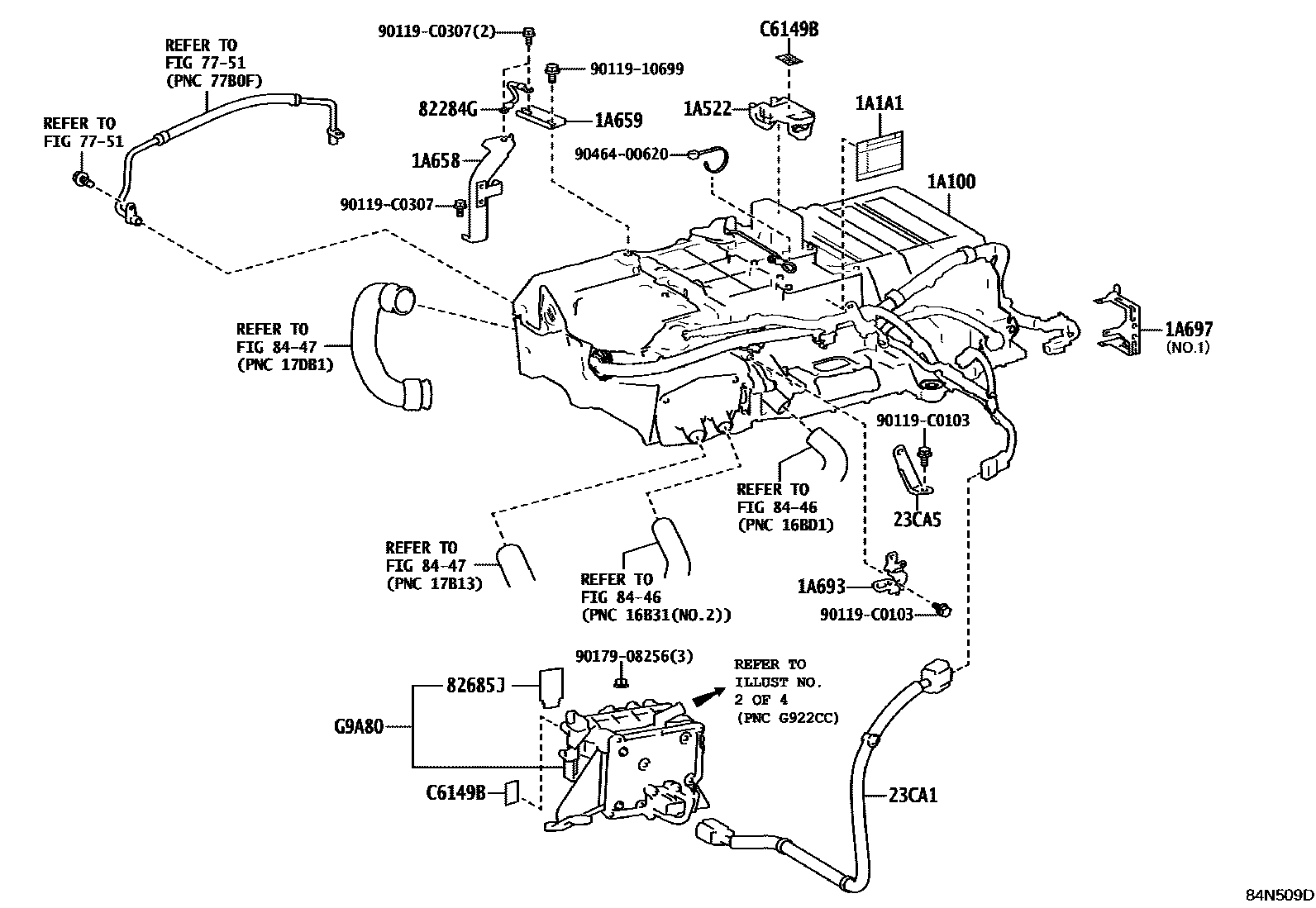

Toyota COASTER FUELCELL — FCEV STACK & CONVERTER

0001 1 0002 1 0003 1 0004 1

1A100STACK ASSY, FC

main1A100-77042iKM..KMB53202108

1A1A1LABEL, FC STACK CAUTION, NO.1

main1A1A1-F5010iKM..KMB53202108

1A522GRIP, FC STACK SERVICE PLUG

main1A522-77010iKM..KMB53202108

1A658BRACKET, FC STACK EARTH, NO.1

main1A658-77010iKM..KMB53202108

1A659BRACKET, FC STACK EARTH, NO.2

main1A659-77010iKM..KMB53202108

1A693BRACKET, FC WIRING HARNESS, NO.3

main1A693-77010iKM..KMB53202108

1A697BRACKET, FC WIRING HARNESS, NO.7

main1A697-77040iKM..KMB53202108

NO.2

main1A697-77050iKM..KMB53202108

NO.1

23CA1CABLE, HYDROGEN PUMP INVERTER

main23CA1-77060iKM..KMB53202108

23CA5BRACKET, HYDROGEN PUMP CABLE

main23CA5-F5010iKM..KMB53202108

7751

82284GWIRE, EARTH

main82284-33010iKMB53202108

82685JPLATE, CAUTION

main82685-50051iKMB53202108

8446

8447

C6149BLABEL, WATER PUMP CAUTION

mainC61490S010×3iKMB53202108

G9A80INVERTER ASSY, FC WATER & HYDROGEN PUMP

mainG9A8062010iKMB53202108

9011910699

main90119-10699

90119C0103

main90119-C0103

90119C0307

main90119-C0307

9017908256

main90179-08256

9046400620

main90464-00620

21 parts on this diagram · 4 diagrams in section
