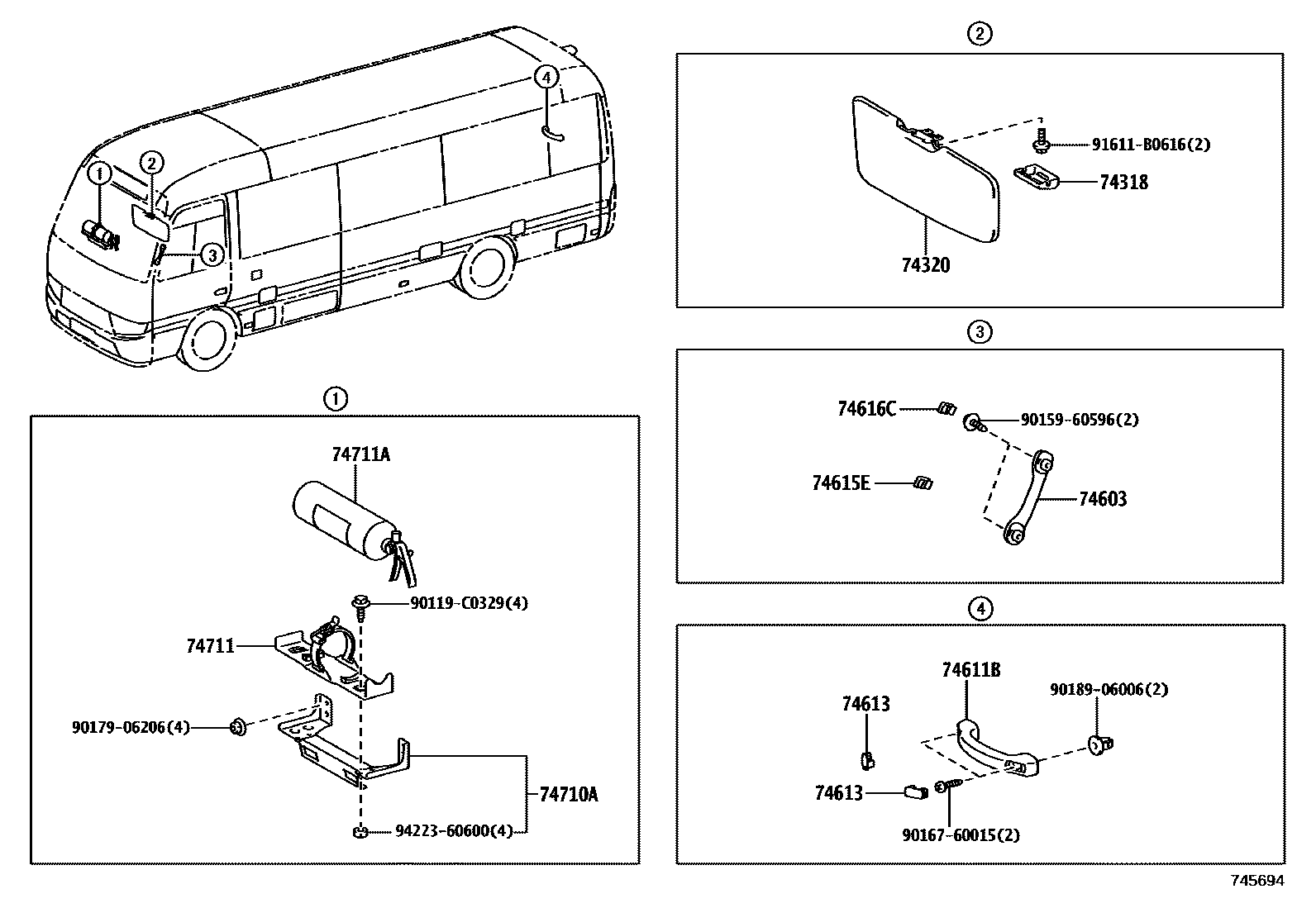

Toyota COASTER FUELCELL — ARMREST & VISOR

74318COVER, VISOR BRACKET, LH

main74317-36040-A0i202108

IVORY,TRIM4#

74320VISOR ASSY, LH

main74320-0S040i202108

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-60010-E1i202108

GREIGE

74611BGRIP, ASSIST

main74690-36010-C0i202108

BLACK

74613PLUG, ASSIST GRIP

main74617-36010-C0×2i202108

BLACK

74615EPLUG, FRONT ASSIST GRIP, NO.1 RH

main74615-60010-E1i202108

GREIGE

74616CPLUG, FRONT ASSIST GRIP, NO.1 LH

main74616-60010-E1i202108

GREIGE

74710ABRACKET, EXTINGUISHER

main74712-0S060i202108

74711BRACKET SUB-ASSY, EXTINGUISHER

main74702-0S030i202108

74711AEXTINGUISHER

main74711-0S050i202108

90119C0329

main90119-C0329

9015960596

main90159-60596

9016760015

main90167-60015

9017906206

main90179-06206

9018906006

main90189-06006

91611B0616

main91611-B0616

9422360600

main94223-60600

17 parts on this diagram · 3 diagrams in section

ARMREST & VISOR for Toyota COASTER FUELCELL

This section contains 41 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COASTER FUELCELL. Key components include: GUIDE, EXTINGUISHER, COVER, VISOR BRACKET, LH, VISOR ASSY, LH, GRIP SUB-ASSY, ASSIST, FRONT, GRIP ASSY, ASSIST, NO.2 RH.
