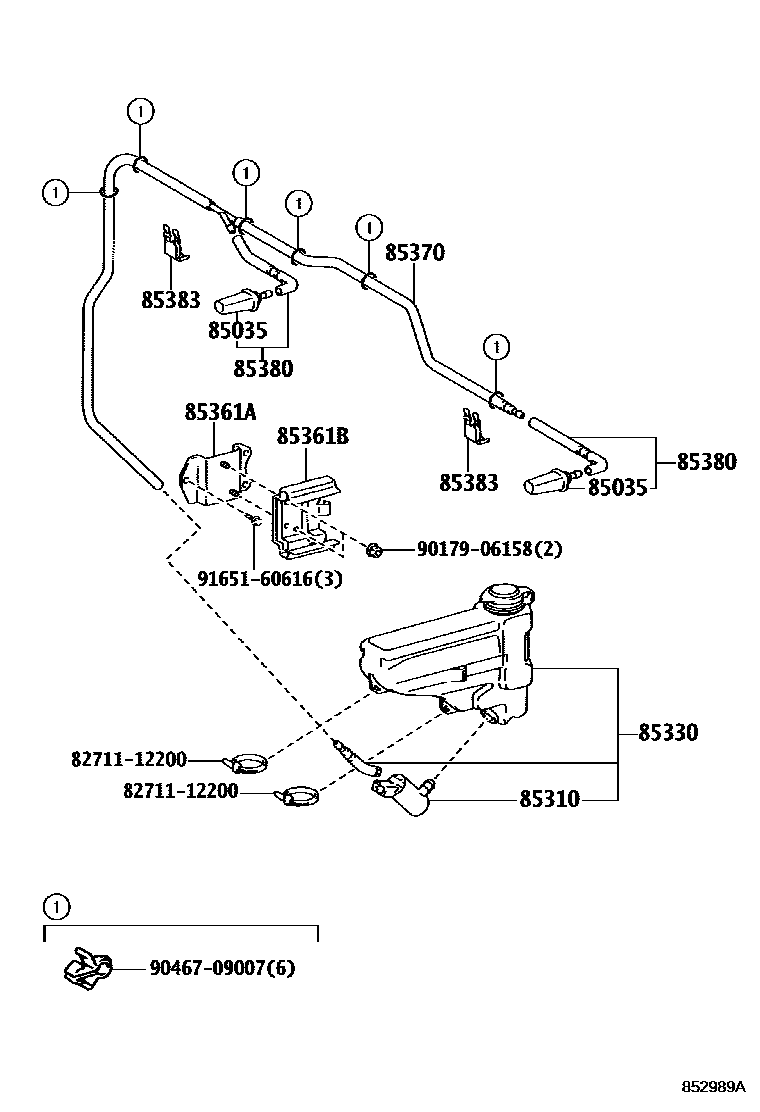

Toyota COASTER (CHINA) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-36020×2i201301-201507

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-36170i201301-201507

85330JAR ASSY, WINDSHIELD WASHER

main85310-0S010i201301-201507

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-0S010i201301-201507

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85361-95A02i201301-201507

85370HOSE ASSY, WINDSHIELD WASHER

main85370-0S010i201301-201507

85380NOZZLE & HOSE ASSY, FR WASHER

main85380-0S010×2i201301-201507

85383HOLDER, FRONT WASHER NOZZLE

main85383-36020×2i201301-201507

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017906158

main90179-06158

9046709007

main90467-09007

9165160616

main91651-60616

12 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota COASTER (CHINA)

This section contains 13 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COASTER (CHINA). Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BRACKET, WINDSHIELD WASHER, NO.1, BRACKET, WINDSHIELD WASHER, NO.2.
