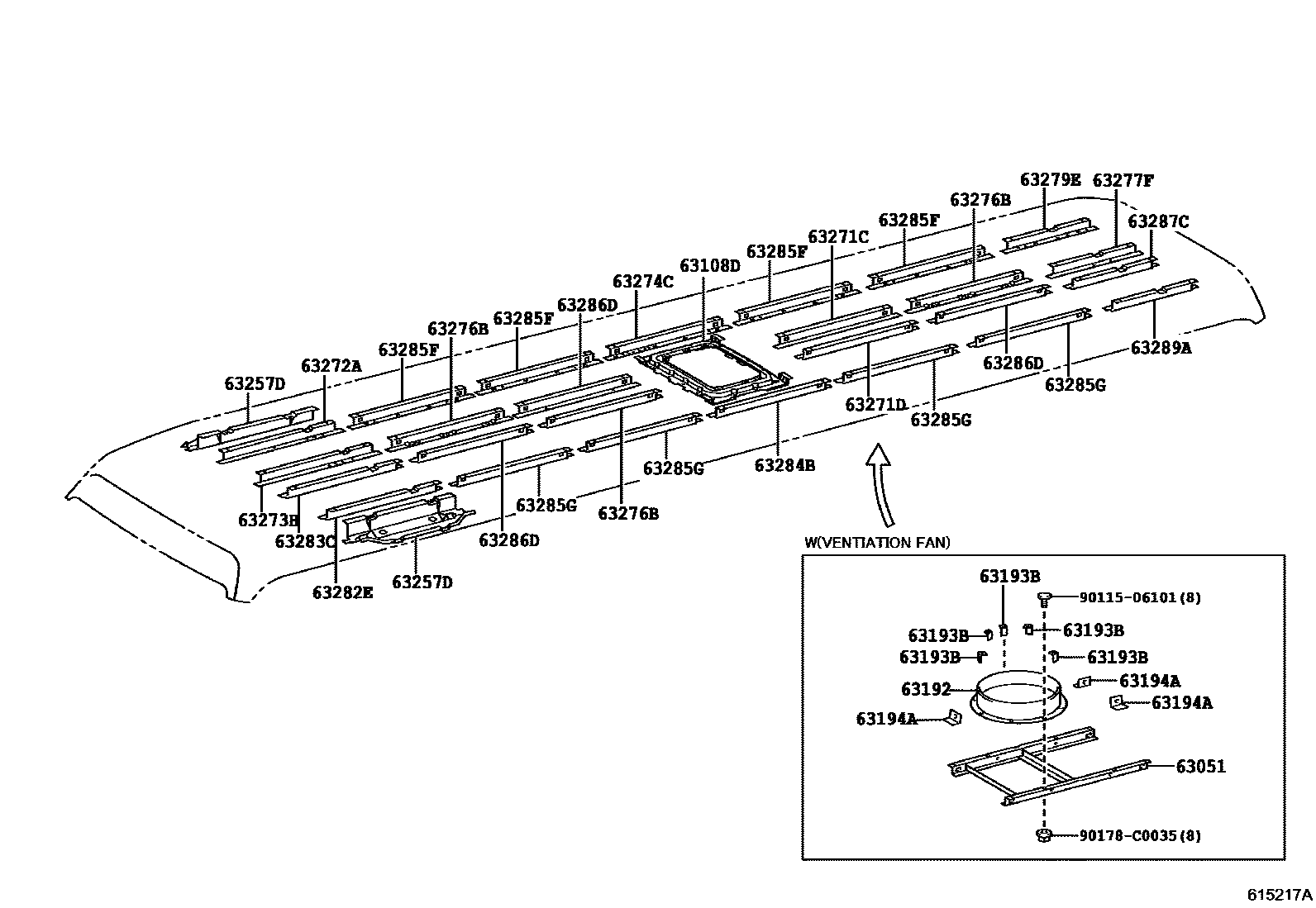

Toyota COASTER (CHINA) — ROOF PANEL & BACK PANEL

0001 1STRENGH 0002 1STRENGH 0003 1PANEL/REINFORCE 0004 1PANEL/REINFORCE 0005 1DRAIN 0006 1DRAIN 0007 1BACK DOOR GLASS 0008 1BACK DOOR GLASS

63051STRENGTH SUB-ASSY, ROOF PANEL, CENTER

main63051-0S011iGRB53,XZB53..EX,LX201301-201504

main63051-0S012iGRB53,XZB53..EX,LX201505-201507

main63051-0S020iGRB53..EX,LX201507-201801

63108DSUPPORT SUB-ASSY, ROOF PANEL

main63108-0S010iGRB53,TRB53,XZB53201301-201410

main63108-0S011iGRB53,TRB53,XZB53201411-201507

main63108-0S020iGRB53..LX201801-202412

63192FLANGE, BOOST VENTILATOR HOLE

main63015-0S010iGRB53..LX201801-202412

main63192-0S010iGRB53,XZB53..EX,LX201301-201507

63193BBRACKET, BOOST VENTILATOR BLOWER

main63193-0S010×5iGRB53,XZB53..EX,LX201301-201507

63194ABRACKET, BOOST VENTIRATOR COVER, NO.1

main63194-36020×3iGRB53..EX201801

63257DSTRENGTH, ROOF PANEL, CENTER NO.7 RH

main63257-36020×2iGRB53,TRB53,XZB53201301-201507

63271CSTRENGTH, ROOF PANEL, NO.1 RH

main63271-0S010iGRB53,XZB53..EX,LX201301-201507

SIDE GLASS-SLIDE GLASS:*TEM&GREEN

main63271-0S020iGRB53,TRB53..STD201507-201801

63271DSTRENGTH, ROOF PANEL, NO.1 LH

main63271-0S010iGRB53,XZB53..EX,LX201301-201507

SIDE GLASS-SLIDE GLASS:*TEM&GREEN

main63281-0S010iTRB53201801-201910

63272ASTRENGTH, ROOF PANEL, NO.2 RH

main63272-36040iGRB53,TRB53,XZB53201301-201507

63273HSTRENGTH, ROOF PANEL, NO.3

main63273-36040iGRB53,TRB53,XZB53201301-201507

63274CSTRENGTH, ROOF PANEL, NO.4 RH

main63274-0S010×5iGRB53,TRB53..EX,STD201801

main63274-36020iGRB53,TRB53,XZB53201301-201507

63276BSTRENGTH, ROOF PANEL, NO.6 RH

main63276-0S010×3iGRB53,TRB53..EX,STD201801

main63276-36030×3iGRB53,TRB53,XZB53201301-201507

63277FSTRENGTH, ROOF PANEL, NO.7 RH

main63277-0S010iGRB53,TRB53..EX,STD201801

main63277-36040iGRB53,TRB53,XZB53201301-201507

63279ESTRENGTH, ROOF PANEL, NO.9 RH

main63279-0S010iGRB53,TRB53201507-201801

main63279-36040iGRB53,TRB53,XZB53201301-201507

63282ESTRENGTH, ROOF PANEL, NO.2 LH

main63282-36040iGRB53..LX201801-202412

63283CSTRENGTH, ROOF PANEL, NO.3 LH

main63283-36040iGRB53,TRB53,XZB53201301-201507

63284BSTRENGTH, ROOF PANEL, NO.4 LH

main63284-0S010×5iGRB53,TRB53201507-201801

main63284-36020iGRB53,TRB53,XZB53201301-201507

63285FSTRENGTH, ROOF PANEL, NO.5 RH

main63285-36040×4iGRB53,TRB53,XZB53201301-201507

63285GSTRENGTH, ROOF PANEL, NO.5 LH

main63285-36040×4iGRB53,TRB53,XZB53201301-201507

63286DSTRENGTH, ROOF PANEL, NO.6 LH

main63286-0S010×3iGRB53,TRB53201507-201801

main63286-36030×3iGRB53,TRB53,XZB53201301-201507

63287CSTRENGTH, ROOF PANEL, NO.7 LH

main63287-0S010iGRB53..LX201801-202412

main63287-36040iGRB53,TRB53,XZB53201301-201507

63289ASTRENGTH, ROOF PANEL, NO.9 LH

main63289-0S010iGRB53,TRB53201507-201801

main63289-36040iGRB53,TRB53,XZB53201301-201507

9011506101

main90115-06101

90178C0035

main90178-C0035

24 parts on this diagram · 8 diagrams in section
