Toyota COASTER (CHINA) — PARTIAL ENGINE ASSEMBLY

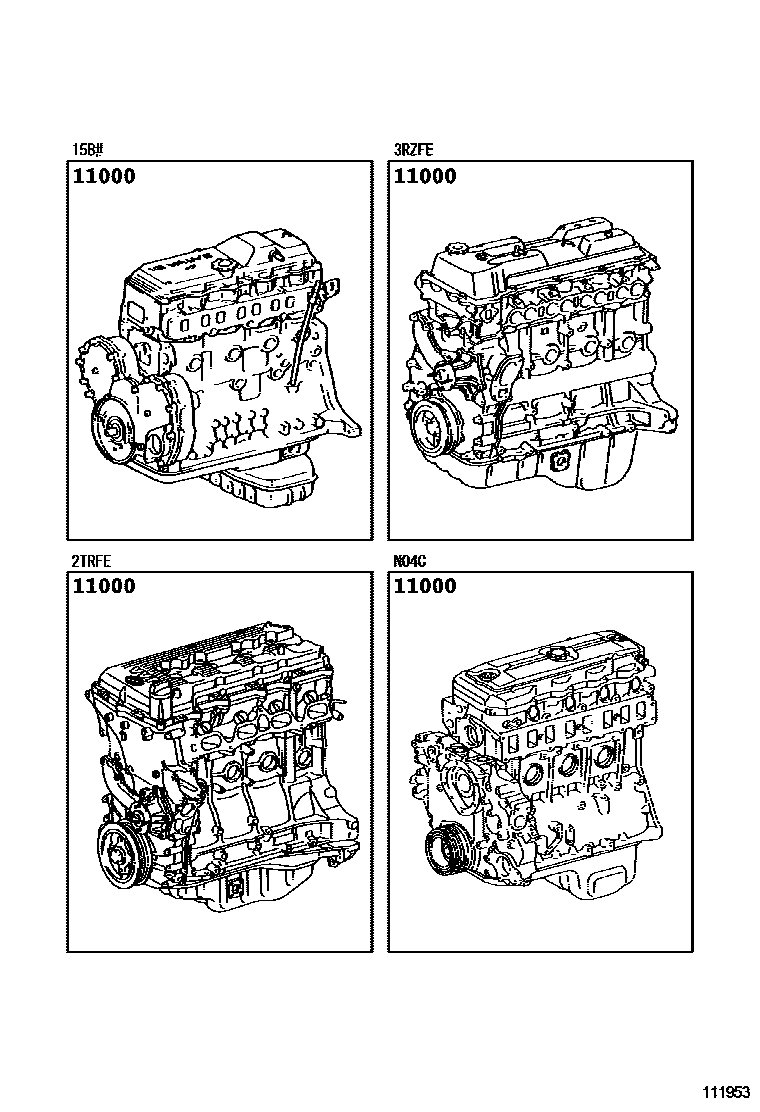

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-5C430i200012-200310
main19000-5C470i200310-200701
main19000-75570i200012-200310
main19000-75J90i200701-201009
sub15330-75010
main19000-75J91i201009-201108
main19000-75K91i201108-201301
sub19000-75K92
main19000-78E70i201008-201108
sub19000-78Y40
main19000-78G70i201108-201403
sub19000-7CT70
main19000-7C810i200701-201008
sub19000-7CT40

1 parts on this diagram · 1 diagram in section
