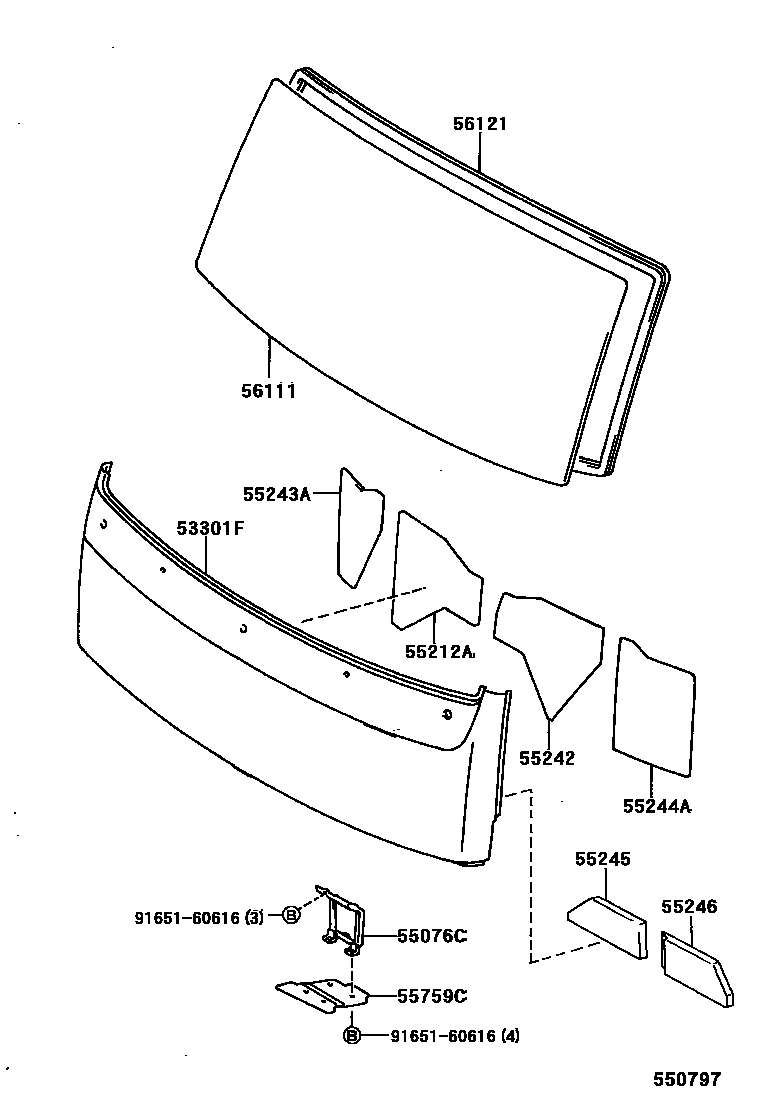

Toyota COASTER (CHINA) — FRONT PANEL & WINDSHIELD GLASS

53301FPANEL SUB-ASSY, FRONT

main53301-0S010iTRB53,XZB53201010

main53301-36080iBB5#,RZB5#200012-200310

main53301-36160iTRB53,XZB53200701-201010

55076CNET SUB-ASSY, AIR DUCT

main55076-36010iBB5#,RZB5#200012-200310

55212ASILENCER, FRONT PANEL, LOWER

main55241-36020iBB5#,RZB5#200310-200404

main55241-36030iBB5#,RZB5#,TRB53,XZB53200404

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-36020iBB5#,RZB5#200012-200310

main55242-36030iBB5#,RZB5#,TRB53,XZB53200404

55243ASILENCER, FRONT PANEL SIDE, NO.2 RH

main55243-36010iBB5#,RZB5#200012-200310

sub55243-36030

main55243-36020iBB5#,RZB5#,TRB53,XZB53200404

55244ASILENCER, FRONT PANEL SIDE, NO.2 LH

main55244-36010iBB5#,RZB5#200310-200404

sub55244-36030

main55244-36020iBB5#,RZB5#,TRB53,XZB53200404

55245SILENCER, FRONT PANEL SIDE, NO.3 RH

main55246-36010iBB5#,RZB5#,TRB53,XZB53200411

main55246-36020iBB5#,RZB5#200012-200310

55246SILENCER, FRONT PANEL SIDE, NO.3 LH

main55246-36010iBB5#,RZB5#,TRB53,XZB53200411

main55246-36020iBB5#,RZB5#200012-200310

55759CCOVER, HEATER AIR DUCT

main55759-0S010iTRB53,XZB53201104

main55759-36020iBB5#,RZB5#200310-200608

main55759-36021iBB5#,RZB5#,TRB53,XZB53200609-201103

56111GLASS, WINDSHIELD

main56111-36090iBB5#,RZB5#200012-200304

*LAM,T=7.7,GREEN

main56111-36091iBB5#,RZB5#200304-200310

*LAM,T=7.7,GREEN

56121WEATHERSTRIP, WINDSHIELD

main56121-36010iBB5#,RZB5#200012-200310

9165160616

main91651-60616

12 parts on this diagram · 1 diagram in section
