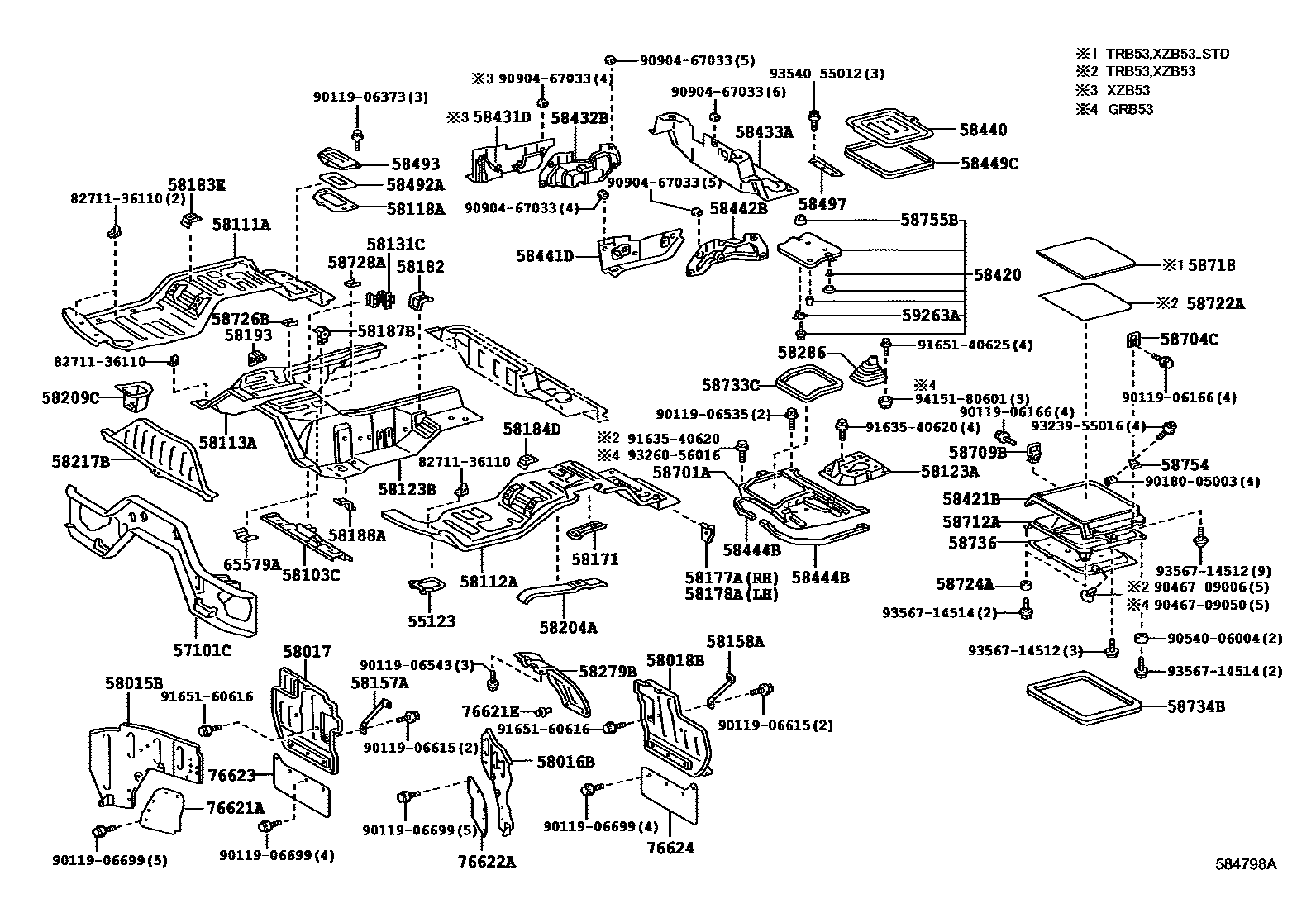

Toyota COASTER (CHINA) — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

55123REINFORCEMENT, STEERING SUPPORT

main55123-36020iGRB53,TRB53..EX,STD201801

57101CCROSSMEMBER SUB-ASSY, FLOOR, NO.1

main57101-0S020iGRB53,TRB53,XZB53201301-201507

main57101-0S030iGRB53..LX201911-202412

58015BPANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT RH

main58015-0S010iGRB53,TRB53,XZB53201301-201507

main58015-0S011iGRB53,TRB53201905-201911

main58015-0S030iGRB53..LX201911-202412

58016BPANEL SUB-ASSY, FRONT FLOOR HOUSING, FRONT LH

main58016-0S010iGRB53,TRB53,XZB53201301-201507

main58016-0S011iGRB53,TRB53201905-201911

main58016-0S020iGRB53..LX201911-202412

58017PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH

main58017-0S020iGRB53,TRB53,XZB53201301-201507

main58017-0S021iGRB53,TRB53201905-201911

main58017-0S030iGRB53..LX201911-202412

58018BPANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR LH

main58018-0S010iGRB53,TRB53,XZB53201301-201507

main58018-0S011iGRB53,TRB53201905-201911

main58018-0S020iGRB53..LX201911-202412

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-0S010iTRB53,XZB53201301-201507

main58103-0S020iGRB53..EX,STD201801

58111APAN, FRONT FLOOR, RH

main58111-0S010iGRB53,TRB53,XZB53201301-201502

main58111-0S011iGRB53,TRB53201507-201801

main58111-0S020iGRB53,TRB53,XZB53201502-201507

main58111-0S030iGRB53,TRB53201905-201911

main58111-0S040iGRB53..LX201911-202412

58112APANEL, FRONT FLOOR, LH

main58112-0S010iGRB53,TRB53201507-201801

main58112-0S011iGRB53,TRB53201905-201911

main58112-0S030iGRB53201911-202412

main58112-0S050iGRB53..EX,STD202412

main58112-36130iGRB53,TRB53,XZB53201301-201507

58113APANEL, FRONT FLOOR, CENTER

main58113-0S010iTRB53,XZB53201301-201507

main58113-0S011iTRB53201801-201901

main58113-0S012iTRB53201709-201801

main58113-0S020iGRB53201301-201507

main58113-0S021iGRB53201507-201708

main58113-0S022iGRB53201709-201801

main58113-0S030iTRB53201901-201910

main58113-0S040iGRB53201901-201911

main58113-0S060iGRB53..EX,STD201911

58118ARETAINER, ENGINE SERVICE HOLE

main58118-0S010iGRB53,TRB53,XZB53201301-201507

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-0S020-E0iGRB53201301-201507

GREIGE,TRIM4#

main58123-36190iTRB53201801-201910

58123BPANEL, FRONT FLOOR, CENTER LH

main58123-0S010iGRB53201301-201507

main58123-0S011iGRB53201709-201801

main58123-0S030iTRB53201507-201708

main58123-0S031iTRB53201709-201801

main58123-0S040iTRB53201901-201910

main58123-0S050iGRB53201901-201911

main58123-0S070iGRB53..EX,STD201911

58131CBRACKET, RESERVE TANK SERVICE HOLE COVER

main58131-0S010iTRB53201801-201910

main58131-0S020iGRB53..EX,STD201801

58157ASTAY, FRONT FLOOR HOUSING, REAR RH

main58157-36040iGRB53,TRB53,XZB53201301-201507

58158ASTAY, FRONT FLOOR HOUSING, REAR LH

main58158-36040iGRB53,TRB53,XZB53201301-201507

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-36021iGRB53,TRB53201507-201801

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-0S010iGRB53,TRB53201507-201801

main58177-36030iGRB53,TRB53,XZB53201301-201412

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-0S010iGRB53,TRB53,XZB53201501-201507

main58178-36020iGRB53,TRB53,XZB53201301-201412

58182BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH

main58182-36040iGRB53,TRB53,XZB53201301-201507

58183EBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36010iGRB53,TRB53,XZB53201301-201507

58184DBRACKET, FRONT SEAT MOUNTING, OUTSIDE

main58184-36020iGRB53,TRB53,XZB53201301-201507

58187BBRACKET, ACCELERATOR PEDAL ROD

main58187-36010iGRB53,TRB53,XZB53201301-201507

main58187-36020iGRB53,TRB53201612-201801

58188ABRACKET, ACCELERATOR PEDAL STOPPER

main58188-36020iGRB53,TRB53,XZB53201301-201507

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-36011iGRB53,TRB53,XZB53201301-201507

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-36020iGRB53,TRB53,XZB53201301-201507

main58204-36040iGRB53..LX201911-202412

58209CCOVER SUB-ASSY, HEATER AIR INTAKE

main58209-36010iGRB53,TRB53,XZB53201301-201507

58217BPLATE, FRONT FLOOR

main58217-0S010iGRB53..LX201801-202412

58279BCOVER, PARKING BRAKE CABLE, LH

main58279-36010iGRB53,TRB53,XZB53201301-201507

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-0S010iGRB53201301-201507

main58280-36030iTRB53201801-201910

58420COVER ASSY, ENGINE SERVICE HOLE, NO.2

main58420-0S020iTRB53201507-201801

main58420-0S030iGRB53..EX,STD201801

58421BCOVER, ENGINE SERVICE HOLE MAIN

main58421-0S010-E0iTRB53201801-201901

GREIGE,TRIM4#

main58421-0S020-E0iGRB53201507-201512

GREIGE,TRIM4#

main58421-0S021-E0iGRB53201601-201801

GREIGE,TRIM4#

main58421-0S030-E0iTRB53201901-201910

GREIGE,TRIM4#

main58421-0S040-E0iGRB53201901-202106

GREIGE,TRIM4#

main58421-0S041-E0iGRB53..LX202106-202412

GREIGE,TRIM4#

58431DSILENCER, ENGINE ROOM SIDE, FRONT RH

main58431-0S010iXZB53201403-201507

main58431-0S020iTRB53201801-201910

main58431-0S030iGRB53201507-201512

main58431-0S031iGRB53201601-201801

main58431-0S032iGRB53..LX202106-202412

58432BSILENCER, ENGINE ROOM SIDE, REAR RH

main58432-0S020iGRB53,TRB53,XZB53201301-201507

main58432-0S021iGRB53201911-202106

main58432-0S022iGRB53..EX,STD202106

58433ASILENCER, ENGINE ROOM SIDE END

main58433-0S010iGRB53,TRB53201507-201512

main58433-0S011iGRB53,TRB53201601-201801

main58433-0S020iGRB53,TRB53201801-201901

main58433-0S030iGRB53,TRB53201901-202106

main58433-0S031iGRB53..EX,STD202106

main58433-36170iXZB53201403-201507

58440COVER ASSY, BATTERY SERVICE HOLE

main58440-0S010-E0iGRB53,TRB53,XZB53201301-201507

GREIGE,TRIM4#

main58440-0S011-E0iGRB53,TRB53201601-201801

GREIGE,TRIM4#

main58440-0S012-E0iGRB53..EX,STD202106

GREIGE,TRIM4#

58441DSILENCER, ENGING ROOM SIDE, FRONT LH

main58441-0S020iGRB53201301-201507

main58441-0S021iGRB53201801-202106

main58441-0S022iGRB53..LX202106-202412

main58441-36150iTRB53201507-201512

main58441-36151iTRB53201601-201801

58442BSILENCER, ENGING ROOM SIDE, REAR LH

main58442-0S010iGRB53,TRB53,XZB53201301-201507

main58442-0S011iGRB53,TRB53201601-201801

main58442-0S012iGRB53201911-202106

main58442-0S013iGRB53..LX202106-202412

58444BPACKING, ENGINE SUB COVER

main58444-0S010×2iGRB53..LX201801-202412

main58444-0S020×2iTRB53201801-201910

main58444-36050×2iTRB53,XZB53201301-201504

58449CWEATHERSTRIP, BATTERY SERVICE COVER

main58449-36020iGRB53,TRB53,XZB53201301-201507

58492APACKING, RELAY BLOCK HOLE COVER

main58492-0S010iGRB53,TRB53..EX,STD201801

main58492-36010iGRB53,TRB53201507-201602

58493RETAINER, ENGINE COVER, NO.3

main58493-0S010-E0iGRB53..LX201801-202412

GREIGE,TRIM4#

main58493-36040-E0iGRB53,TRB53,XZB53201301-201504

GREIGE,TRIM4#

58497PLATE, BATTERY SERVICE HOLE COVER LOCK

main58497-36040-E0iGRB53,TRB53,XZB53201301-201507

GREIGE,TRIM4#

58701APANEL SUB-ASSY, ENGINE SERVICE COVER, FRONT

main58701-0S010iGRB53201801-201901

main58701-0S011iGRB53201711-201801

main58701-0S020iTRB53201901-201910

main58701-0S030iGRB53..EX,STD201901

main58701-36230iTRB53201801-201901

58704CHOOK SUB-ASSY, ENGINE SERVICE COVER CATCH, REAR

main58704-0S010×2iTRB53,XZB53201301-201507

main58704-0S020×2iGRB53201301-201507

main58704-0S030×2iTRB53201901-201910

main58704-0S040×2iGRB53..LX201901-202412

58709BCATCH SUB-ASSY, ENGINE SERVICE COVER

main58709-36031×2iGRB53,TRB53,XZB53201301-201507

58712APANEL, ENGINE SERVICE COVER, REAR

main58702-0S010iGRB53201801-201901

main58702-0S020iTRB53201901-201910

main58702-0S030iGRB53..LX201901-202412

main58702-36010iTRB53201507-201801

58718MAT, ENGINE SERVICE COVER, REAR

main58718-0S010-E0iTRB53,XZB53..STD201301-201507

GREIGE,TRIM4#

58722APANEL, ENGINE SERVICE COVER, REAR UPPER SILENCER

main58722-0S010iTRB53,XZB53201301-201507

58724ACUSHION, ENGINE SERVICE COVER, NO.2

main58724-90B00×2iGRB53,TRB53,XZB53201301-201507

58726BPLATE, ENGINE SERVICE COVER, FRONT UPPER

main58726-36010iGRB53,TRB53,XZB53201301-201507

58728APLATE, ENGINE SERVICE COVER, NO.2

main58728-36010iTRB53,XZB53201301-201507

58733CWEATHERSTRIP, ENGINE SERVICE COVER, FRONT

main58733-0S010iTRB53201507-201801

main58733-0S020iGRB53201507-201801

main58733-0S021iGRB53..EX,STD202106

58734BWEATHERSTRIP, ENGINE SERVICE COVER, REAR

main58734-0S010iTRB53201801-201901

main58734-0S020iGRB53201507-201801

main58734-0S030iTRB53201901-201910

main58734-0S040iGRB53201901-202106

main58734-0S041iGRB53..LX202106-202412

58736SILENCER, ENGINE SERVICE COVER, REAR

main58736-0S010iGRB53201301-201507

main58736-0S011iGRB53201601-201801

main58736-0S020iTRB53201901-201910

main58736-0S030iGRB53201901-202106

main58736-0S031iGRB53..LX202106-202412

main58736-36080iTRB53201507-201512

main58736-36081iTRB53201601-201801

58754PLATE, ENGINE SERVICE COVER CATCH

main58754-36050-E0×4iTRB53,XZB53201301-201507

GREIGE,TRIM4#

58755BHANDLE, ENGINE SERVICE COVER CATCH

main58755-95D00iGRB53,TRB53,XZB53201301-201507

59263AHOOK, ENGINE COVER LOCK

main59263-95D00iGRB53,TRB53,XZB53201301-201507

65579ABRACKET, HEATER PIPE

main65579-36010iGRB53,TRB53,XZB53201301-201507

76621AMUDGUARD, FRONT BODY, FRONT RH

main76621-0S010iGRB53..LX201911-202412

main76621-36050iGRB53,TRB53201801-201910

76621ECLIP(FOR FRONT FENDER MUDGUARD)

main90467-07138-C0×2iGRB53,TRB53,XZB53201301-201507

BLACK

76622AMUDGUARD, FRONT BODY, FRONT LH

main76622-0S010iGRB53..EX,STD201911

main76622-36040iGRB53,TRB53201801-201910

76623MUDGUARD, FRONT BODY, REAR RH

main76623-36030iGRB53,TRB53,XZB53201301-201507

76624MUDGUARD, FRONT BODY, REAR LH

main76624-36030iGRB53,TRB53,XZB53201301-201507

8271136110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36110

9011906166

main90119-06166

9011906373

main90119-06373

9011906535

main90119-06535

9011906543

main90119-06543

9011906615

main90119-06615

9011906699

main90119-06699

9018005003

main90180-05003

9046709006

main90467-09006

9046709050

main90467-09050

9054006004

main90540-06004

9090467033

main90904-67033

9163540620

main91635-40620

9165140625

main91651-40625

9165160616

main91651-60616

9323955016

main93239-55016

9326056016

main93260-56016

9354055012

main93540-55012

9356714512

main93567-14512

9356714514

main93567-14514

9415180601

main94151-80601

85 parts on this diagram · 10 diagrams in section
