Toyota COASTER (CHINA) — CLUTCH & RELEASE FORK

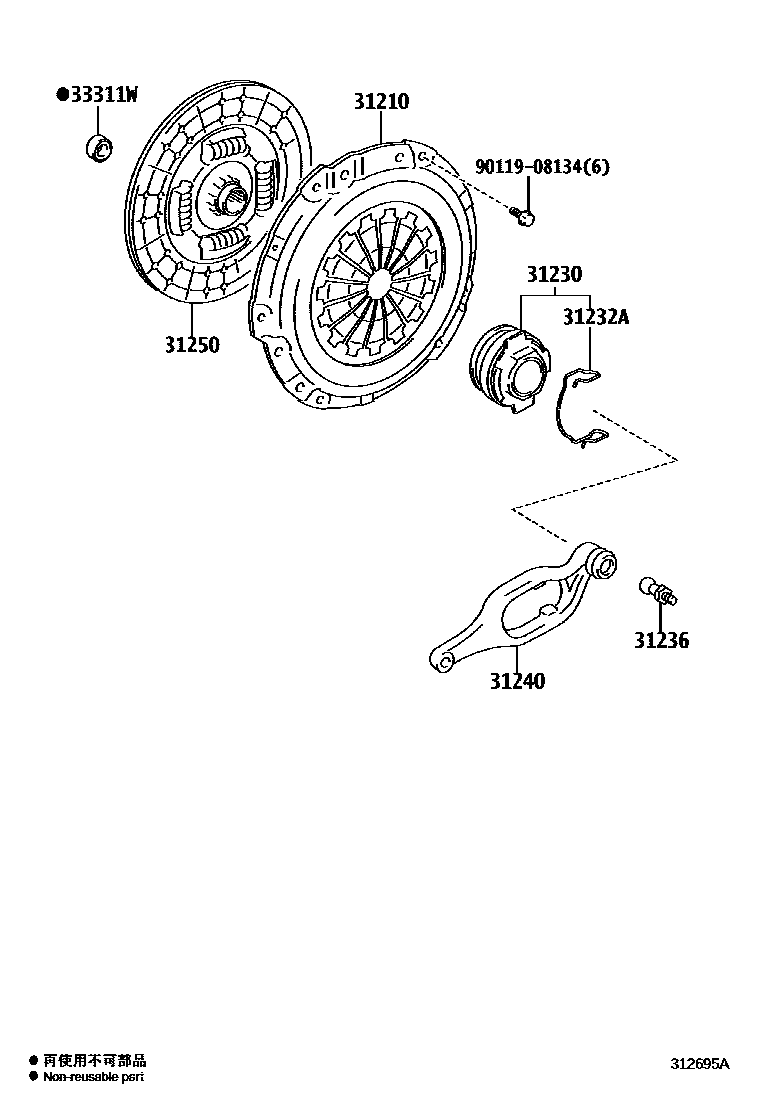

Parts diagram

31210COVER ASSY, CLUTCH

main31210-0S010i201301-201910

main31210-36370i201403-201507

main31210-60340i201301-202412

31230BEARING ASSY, CLUTCH RELEASE

main31230-35071i201301-201910

main31230-36200i201403-201507

main31230-60260i201301-202412

31232ACLIP, RELEASE BEARING HUB

main31232-35020i201301-201910

TYPE A:REFER ILLUST.

main31232-35030i201301-201910

TYPE B:REFER ILLUST.

main31232-36030i201403-201507

main31232-60050i201301-202412

31236BALL, RELEASE FORK

main31236-36060i201403-201507

main31236-37020i201301-201910

main31236-71011i201301-202412

31240FORK ASSY, CLUTCH RELEASE

main31204-20071i201301-201910

main31204-37050i201403-201507

main31204-60110i201301-202412

31250DISC ASSY, CLUTCH

main31250-0S020i201403-201507

main31250-36544i201301-201601

main31250-36545i201602-201910

main31250-36600i201301-201910

main31250-36601i201911-202412

33311WBEARING (FOR INPUT SHAFT)

main90363-12002i201301-201808

main90363-12018i201301-201910

main90363-12024i201808-202412

mainSZ37117009i201403-201507

9011908134

main90119-08134

8 parts on this diagram · 3 diagrams in section

CLUTCH & RELEASE FORK for Toyota COASTER (CHINA)

This section contains 12 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota COASTER (CHINA). Key components include: BOOT, CLUTCH RELEASE FORK, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, RING, SNAP(FOR CLUTCH RELEASE HUB), CLIP, RELEASE BEARING HUB.
