Toyota COASTER (CHINA) — CLUTCH & RELEASE FORK

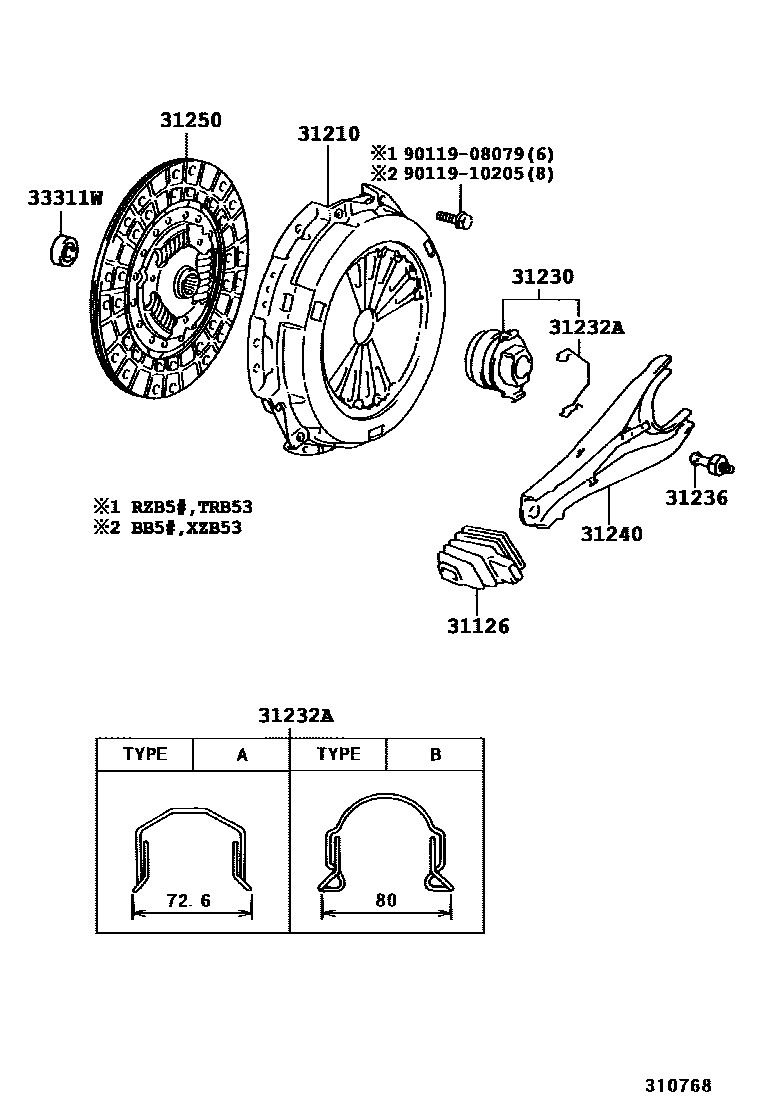

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-36070i200012-200310

main31126-36080i200012-200310

31210COVER ASSY, CLUTCH

main31210-0S010i200709

main31210-36260i200012-200310

main31210-36270i200012-200701

main31210-36280i200310-200701

main31210-36360i200701-200704

main31210-36361i200705-200709

main31210-36370i200701

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070i200012-200310

main31230-36200i200701

main31230-37010i200012-200701

31232ACLIP, RELEASE BEARING HUB

main31232-35020i200310

TYPE A:REFER ILLUST.

main31232-35020i200012-200310

TYPE A:REFER TO ILLUSTRATION

main31232-35030i200012-200310

TYPE B:REFER TO ILLUSTRATION

main31232-35030i200310

TYPE B:REFER ILLUST.

main31232-36030i200701

main31232-37010i200012-200701

31236BALL, RELEASE FORK

main31236-36060i200012-200310

main31236-37020i200012-200310

31240FORK ASSY, CLUTCH RELEASE

main31204-20071i200012-200310

main31204-36142i200012-200701

main31204-37050i200701

31250DISC ASSY, CLUTCH

main31250-0S020i201108-201403

main31250-36531i200012-200701

main31250-36540i200012-200311

main31250-36541i200311-200312

main31250-36542i200312-200506

main31250-36543i200507-201005

main31250-36544i201006-201301

main31250-36590i200701-201108

33311WBEARING (FOR INPUT SHAFT)

main90363-12018i200012-201301

NSK

main90363-12020i200012-200310

NACHI

main90363-17037i200701-201403

9011908079

main90119-08079

9011910205

main90119-10205

10 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota COASTER (CHINA)

This section contains 10 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota COASTER (CHINA). Key components include: BOOT, CLUTCH RELEASE FORK, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB, BALL, RELEASE FORK.
