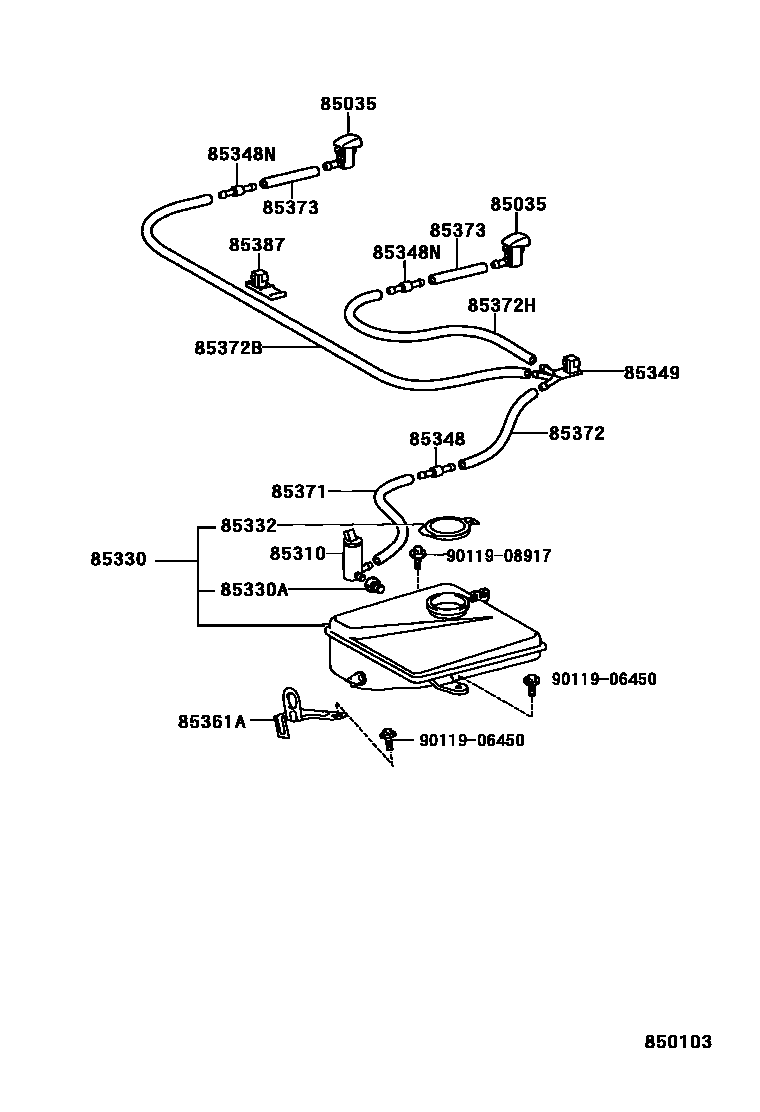

Toyota CHASER — WINDSHIELD WASHER

0001 1���- 2.5L 0002 1���- 3.5L

85035NOZZLE SUB-ASSY, WASHER

main85385-22050-A0×2iGX10#,JZX10#,LX100,SX100199609

SUPER WHITE 2,040

sub85381-30040

sub85385-22060

sub85385-41060

sub85381-30070

sub85381-43010

sub85385-22040

sub85381-14010

sub85385-51010

main85385-22050-A1×2iGX10#,JZX10#,LX100,SX100199808

WHITE PM.,057 ,2CF

sub85381-30040

sub85385-22060

sub85385-41060

sub85381-30070

sub85381-43010

sub85385-22040

sub85381-14010

sub85385-51010

main85385-22050-A2×2iJZX100..5F;GX100,JZX100..4FC..(TOU,TOUS)199712

sub85381-30040

sub85385-22060

sub85385-41060

sub85381-30070

sub85381-43010

sub85385-22040

sub85381-14010

sub85385-51010

main85385-22050-A3×2iGX10#,JZX100..4FC..AVT200012-200106

sub85381-30040

sub85385-22060

sub85385-41060

sub85381-30070

sub85381-43010

sub85385-22040

sub85381-14010

sub85385-51010

main85385-22050-B0×2iGX100,JZX10#,LX100,SX100199708-199808

SILVER ME,1C0

sub85381-30040

sub85385-22060

sub85385-41060

sub85381-30070

sub85381-43010

sub85385-22040

sub85381-14010

sub85385-51010

main85385-22050-B1×2iGX10#,JZX10#,LX100,SX100199808

SILVER ME,1C0

sub85381-30040

sub85385-22060

sub85385-41060

sub85381-30070

sub85381-43010

sub85385-22040

sub85381-14010

sub85385-51010

main85385-22050-D0×2iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

WINE RED MC.,3L4

sub85381-30040

sub85385-22060

sub85385-41060

sub85381-30070

sub85381-43010

sub85385-22040

sub85381-14010

sub85385-51010

main85385-22050-G0×2iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199708

GRAISH GREEN M.M,6N0

sub85381-30040

sub85385-22060

sub85385-41060

sub85381-30070

sub85381-43010

sub85385-22040

sub85381-14010

sub85385-51010

main85385-22050-G1×2iGX100,JZX10#,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,TOUV199609-199808

DK. GREEN MC.P.I.O,6N9

sub85381-30040

sub85385-22060

sub85385-41060

sub85381-30070

sub85381-43010

sub85385-22040

sub85381-14010

sub85385-51010

main85385-22050-J0×2iGX10#,JZX10#,LX100,SX100199609

DK.BLUE MC,8L4

sub85381-30040

sub85385-22060

sub85385-41060

sub85381-30070

sub85381-43010

sub85385-22040

sub85381-14010

sub85385-51010

main85385-22050-J1×2iGX10#,JZX10#,LX100,SX100199808

BLUE MC.,8M6

sub85381-30040

sub85385-22060

sub85385-41060

sub85381-30070

sub85381-43010

sub85385-22040

sub85381-14010

sub85385-51010

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210iGX10#,JZX10#,LX100,SX100199609

sub85330-10280

main85330-12280iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

85330JAR ASSY, WINDSHIELD WASHER

main85315-22190iGX100,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

main85315-22200iGX10#,JZX10#,LX100,SX100199609

main85315-22250iGX10#,JZX100,105,SX100..AVT,TOU,TOUS,XL199808

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGX10#,JZX10#,LX100,SX100199609

85332CAP, WINDSHIELD WASHER JAR

main85316-12290iGX10#,JZX100,105,SX100..AVT,TOU,TOUS,XL199808

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260iGX100,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-10260×2iGX10#,JZX10#,LX100,SX100199609

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-14390iGX10#,JZX10#,LX100,SX100199609

main85378-22520iGX100,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-22520iGX100,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iGX100,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

main90445-07065iGX10#,JZX100,105,SX100..AVT,TOU,TOUS,XL199808

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iGX100,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

main90099-59194iGX10#,JZX10#,LX100,SX100199609

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33299iGX10#,JZX10#,LX100,SX100199609

main90099-59192iGX10#,JZX100,105,SX100..AVT,TOU,TOUS,XL199808

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33299iGX10#,JZX10#,LX100,SX100199609

main90099-59193iGX100,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-59115×2iGX10#,JZX10#,LX100,SX100199609

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22540iGX100,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199808

main85387-22550iGX10#,JZX10#,LX100,SX100199609

9011906450

main90119-06450

9011908917

main90119-08917

17 parts on this diagram · 2 diagrams in section
