Toyota CHASER — TRACTION CONTROL

84988SWITCH, TRACTION CONTROL

main84988-22010iJZX90,91;LX90..ATM199210-199609

84988ABULB, TRACTION CONTROL SWITCH

main84999-10310iJZX90,91;LX90..ATM199409-199609

main84999-10490iJZX90,91;LX90..ATM199210-199409

84988BCAP, TRACTION CONTROL SWICH BULB

main84998-10740iJZX90,91;LX90..ATM199409-199609

89452CSENSOR, THROTTLE POSITION

main89452-22090iJZX90,91199210-199609

89631COMPUTER, TRACTION CONTROL

main89631-22050iJZX91;JZX90..ATM..TOUV199210-199609

main89631-22060iJZX90..MTM199210-199609

main89631-22070iJZX90..AVT,AVTG,TOUS199210-199408

sub89631-22071

main89631-22071iJZX90..AVT,AVTG,TOUS199408-199609

main89631-22080iLX90..ATM199210-199609

89632MOTOR, TRACTION THROTTLE VALVE

main89632-22020iJZX90..AVT,AVTG,TOUS199210-199609

main89632-22030iJZX90..TOUV199210-199609

main89632-24010iJZX91199210-199609

89633RELAY, TRACTION CONTROL

main88263-24020iJZX91;JZX90..TOUV199210-199609

main88263-24030iJZX91;JZX90..TOUV199210-199609

89634BRACKET, TRACTION CONTROL COMPUTER

main89634-22010iJZX90,91;LX90..ATM199210-199409

main89634-22010iJZX90,91;LX90..ATM199409-199609

89634BBRACKET, TRACTION CONTROL COMPUTER, NO.2

main89634-22020iJZX90,91;LX90..ATM199210-199609

89634CBRACKET, TRACTION CONTROL COMPUTER, NO.3

main89634-22030iJZX90,91;LX90..ATM199210-199609

9017906032

main90179-06032

9326954010

main93269-54010

F193122040

mainF1931-22040

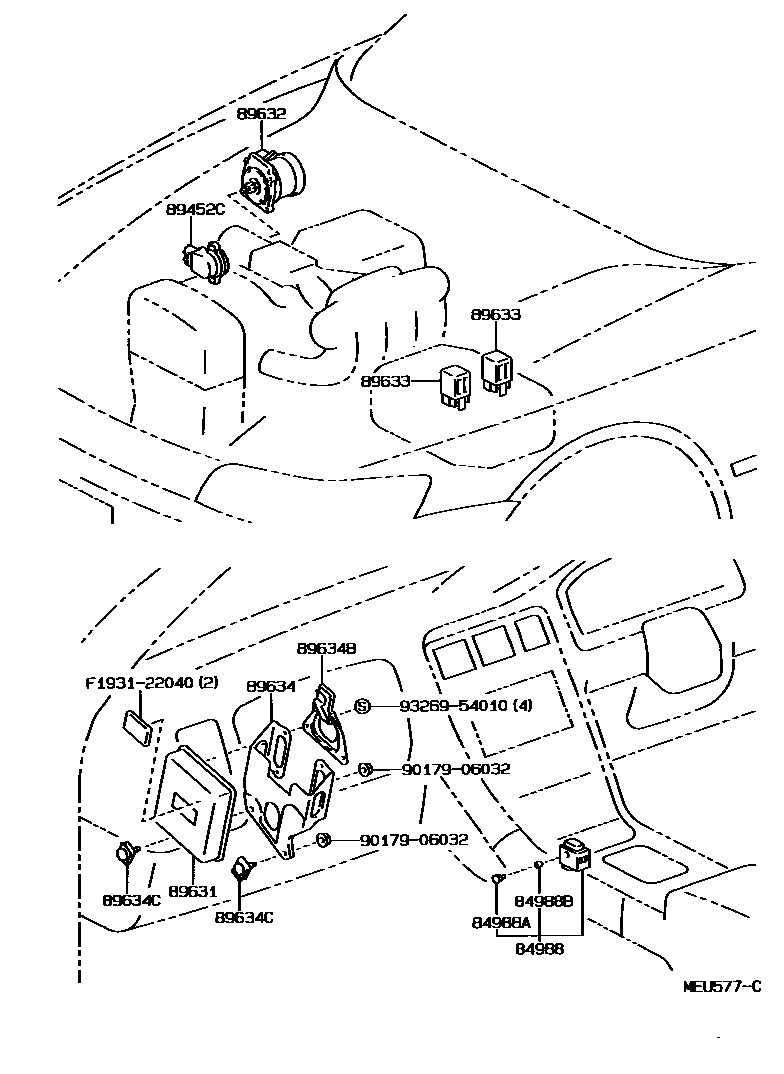

13 parts on this diagram · 1 diagram in section
