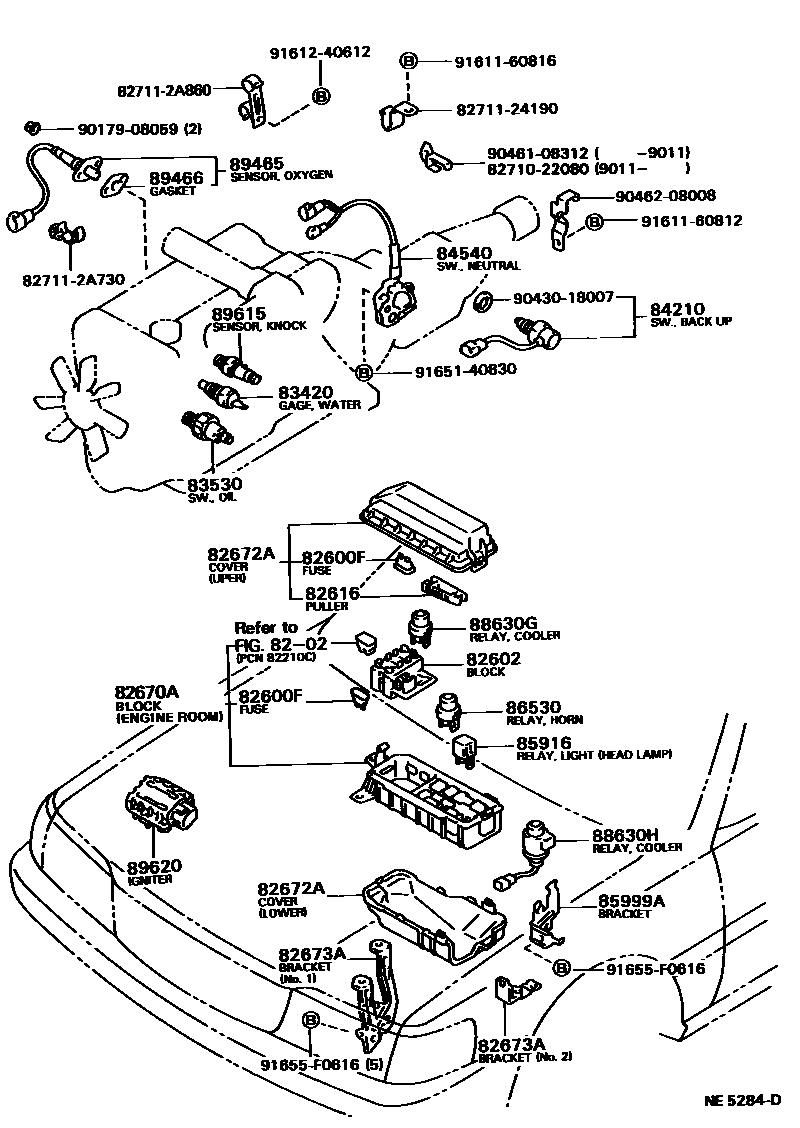

Toyota CHASER — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

8202

82600FFUSE, FUSE BLOCK

main90982-09002iGX81,JZX81,LX80,MX83,SX80,YX80198908-199210

main90982-09003×7iGX81,LX80,SX80,YX80198908-199008

main90982-09004×3iGX81,MX83,SX80,YX80198808-199008

main90982-09005×5iGX81..TWC;GX81,LX80,SX80,YX80..AVTG,GT,KYO,SXL,XG,XL198808-198908

82602BLOCK SUB-ASSY, RELAY

main82602-22260iGX81..5F..AVT198808-199008

main82602-22360iGX81..5F..(HTWC,TWC)198808-199008

82616PULLER, FUSE

main82616-12020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

82670ABLOCK ASSY, JUNCTION, NO.1

main82670-22010iGX81,MX83198808-199008

ENGINE ROOM

main82670-22020iGX81,LX80,SX80,YX80198908-199008

main82670-22040iSX80199111-199210

ENGINE ROOM

main82670-22050iYX80198808-199008

ENGINE ROOM

main82670-22060iLX80198808-199008

ENGINE ROOM

main82670-22070iMX83198908-199008

main82670-22090iSX80..KYO,XL;GX81,JZX81,LX80,MX83,YX80199008-199111

main82671-22030iGX81,LX80,MX83,SX80,YX80198808-199008

main82671-22031iGX81,JZX81,MX83,YX80..AVT,AVTG,GT,KYO199008-199111

NO.3

82672ACOVER, JUNCTION BLOCK

main82672-22060iGX81198808-198908

UPPER

main82672-22061iGX81,JZX81198908-199210

UPPER

sub82672-22062

main82672-22070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

LOWER

main82672-22100iSX80198808-199210

UPPER

sub82672-22101

main82672-22110iLX80198808-199210

UPPER

sub82672-22111

main82672-22120iYX80198808-199210

UPPER

main82672-22140iMX83198908-199210

UPPER

82673ABRACKET, JUNCTION BLOCK, NO.1

main82673-22010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main82673-22030iGX81,JZX81,MX83,SX80,YX80198808-199210

main82673-22050iSX80198808-199111

main82673-22060iLX80198808-199210

main82673-22090iSX80199111-199210

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iSX80198808-199210

main83420-20020iGX81,JZX81,LX80,MX83,YX80198808-199210

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYX80198808-199210

sub83530-28030

main83530-30050iGX81,MX83198808-199104

main83530-30051iGX81,MX83199104-199210

sub83530-60050

main83530-30060iLX80198808-199210

sub83530-60030

main83530-30080iJZX81,SX80198808-199210

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iGX81,LX80,SX80,YX80..5F198808-199210

84540SWITCH ASSY, NEUTRAL START

main84540-14130iGX81,LX80..4FC..(HTWC,TD)198808-199202

main84540-14131iGX81,LX80..4FC..(HTWC,TD)199202-199210

sub84540-22171

main84540-22180iSX80..4FC198808-199204

main84540-22181iSX80..4FC199204-199210

main84540-30240iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199202

main84540-30241iGX81,JZX81,MX83..4FC..(TWC,TWT)199202-199210

main84540-35010iYX80..3FC198808-199210

85916RELAY, LIGHT CONTROL

main90987-02002iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

MARUKO,TAIL LAMP

main90987-02004iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

*ND,TAIL LAMP

main90987-02006iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

HEADLAMP

85999ABRACKET, RELAY, NO.2

main85999-22360iJZX81..TWC;GX81,SX80,YX80198808-199210

main85999-22380iMX83198908-199210

86530RELAY ASSY, HORN

main90987-02002iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main90987-02004iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

88630GRELAY ASSY, COOLER

main90987-02004iLX80,SX80..XG198903-199008

88630HRELAY ASSY, COOLER

main88630-22070iSX80;GX81..5F..TWT;GX81,YX80..ATM198808-198903

main88630-22100iLX80..4FC..XL198903-199008

89465SENSOR, OXYGEN

main89465-10010iSX80198808-199008

main89465-22160iSX80199008-199210

main89465-29096iMX83198908-199210

main89465-29105iYX80198808-198908

main89465-29106iYX80198908-199210

main89465-29175iGX81..HTWC,TWC198808-198908

main89465-29176iGX81..HTWC,TWC198908-199210

main89465-29255iGX81..TWT198808-198908

main89465-29256iGX81..TWT198908-199008

main89465-29435iJZX81..TWT199008-199210

main89465-29445iJZX81..TWC199008-199210

main89465-39125iGX81..SPC198808-198908

main89465-39126iGX81..SPC198908-199008

89466GASKET, OXYGEN SENSOR

main89466-20020iGX81,YX80..LPG,TWT198810-198811

main89466-30010iGX81,YX80..LPG,TWT198808-198810

main89466-30020iGX81..SPC198808-198811

main89466-30030iGX81..HTWC,TWC198908-199210

main89466-32010iGX81..HTWC,TWC198808-198908

89615SENSOR, KNOCK CONTROL

main89615-20030iGX81..HTWC199107-199210

sub89615-32040

main89615-22040×2iJZX81199008-199210

main89615-30020×2iGX81..SPC,TWT198808-199008

main89615-33020iGX81,MX83..TWC199108-199210

sub89615-32030

89620IGNITER ASSY

main89620-14420iGX81..TWT198808-198901

main89620-22410iGX81..SPC198808-199008

main89620-22450iGX81..HTWC198808-199210

main89620-22470iGX81..TWT198901-199008

main89621-12010iGX81,MX83..TWC198808-199210

main89621-20040iSX80199008-199210

main89621-22010iSX80198808-199008

main89621-22020iJZX81..TWT199008-199210

sub89620-24080

sub89620-30390

sub90159-50048

main89621-22030iJZX81..TWT199112-199210

main89621-26010iJZX81..TWC199008-199210

8271022080HARNESS ASSY, OIL HEATER

main82710-22080

8271124190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24190

827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A730

827112A860WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A860

9017908059

main90179-08059

9043018007

main90430-18007

9046108312

main90461-08312

9046208008

main90462-08008

9161160812

main91611-60812

9161160816

main91611-60816

9161240612

main91612-40612

9165140830

main91651-40830

91655F0616

main91655-F0616

33 parts on this diagram · 14 diagrams in section
