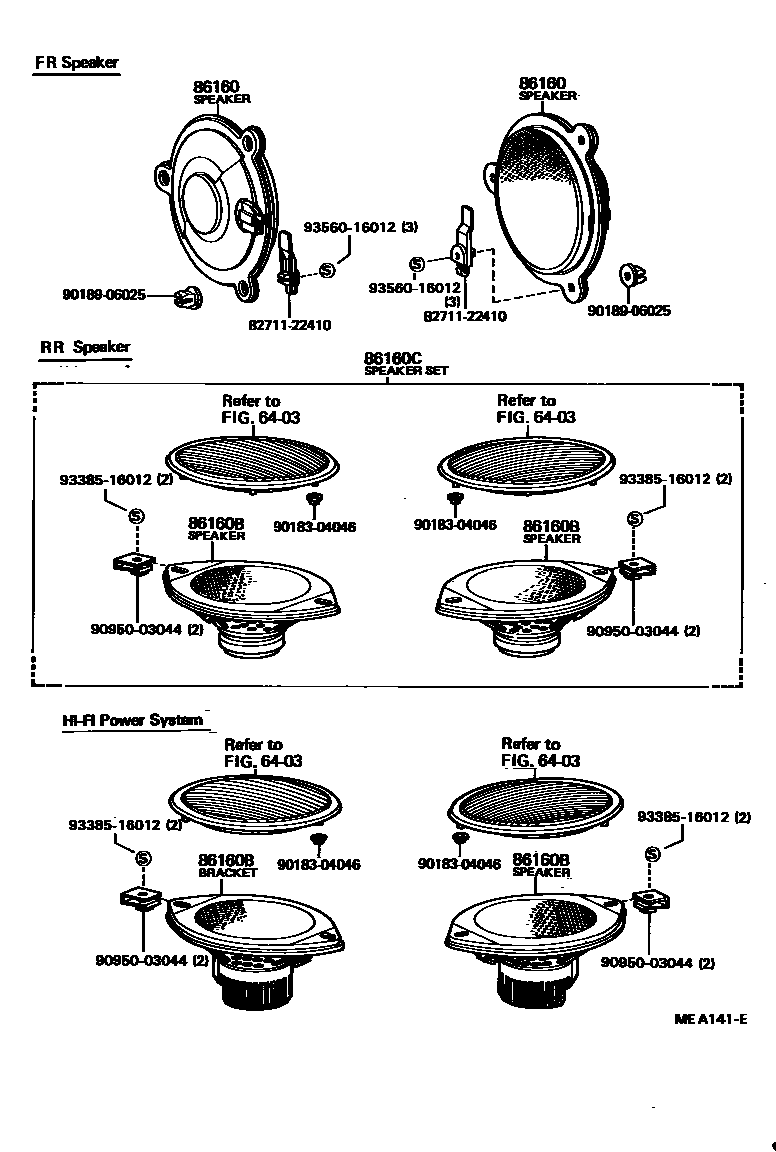

Toyota CHASER — SPEAKER

0001 1 0002 1

6403

86160SPEAKER ASSY, FRONT NO.1

main86160-22060iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

RH

main86160-22070iGX6#,LX6#,MX61,RX6#,SX60,TX60198009-198407

LH

86160BSPEAKER ASSY, REAR

main86160-20110×2iGX6#,LX60,RX6#,TX60198009-198011

sub86160-20220

main86160-22130×2iGX6#,RX6#..AVT,GT,SGT,SXL,XG198009-198011

HI-FI POWER SYSTEM,W/*17,*18

main86160-22131×2iMX61..AVT198110-198208

HI-FI POWER SYSTEM,W/*17

main86160-22140×2iGX6#,RX6#..AVT,GT,SGT,SXL,XG198009-198011

W/*20 RADIO

main86160-22141×2iGX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG198011-198208

W/*20 RADIO

main86160-22150×2iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198011-198407

86160CSPEAKER SET, REAR

main86160-29235iGX6#,LX60,RX6#,TX60198009-198011

main86160-29236iGX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL198011-198407

main86160-29275iGX6#,RX6#..AVT,GT,SGT,SXL,XG198009-198011

W/*20 RADIO

main86160-29276iGX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG198011-198208

W/*20 RADIO

8271122410WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22410

9018304046

main90183-04046

9018906025

main90189-06025

9095003044

main90950-03044

9338516012

main93385-16012

9356016012

main93560-16012

10 parts on this diagram · 2 diagrams in section
