Toyota CHASER — SIDE MOULDING

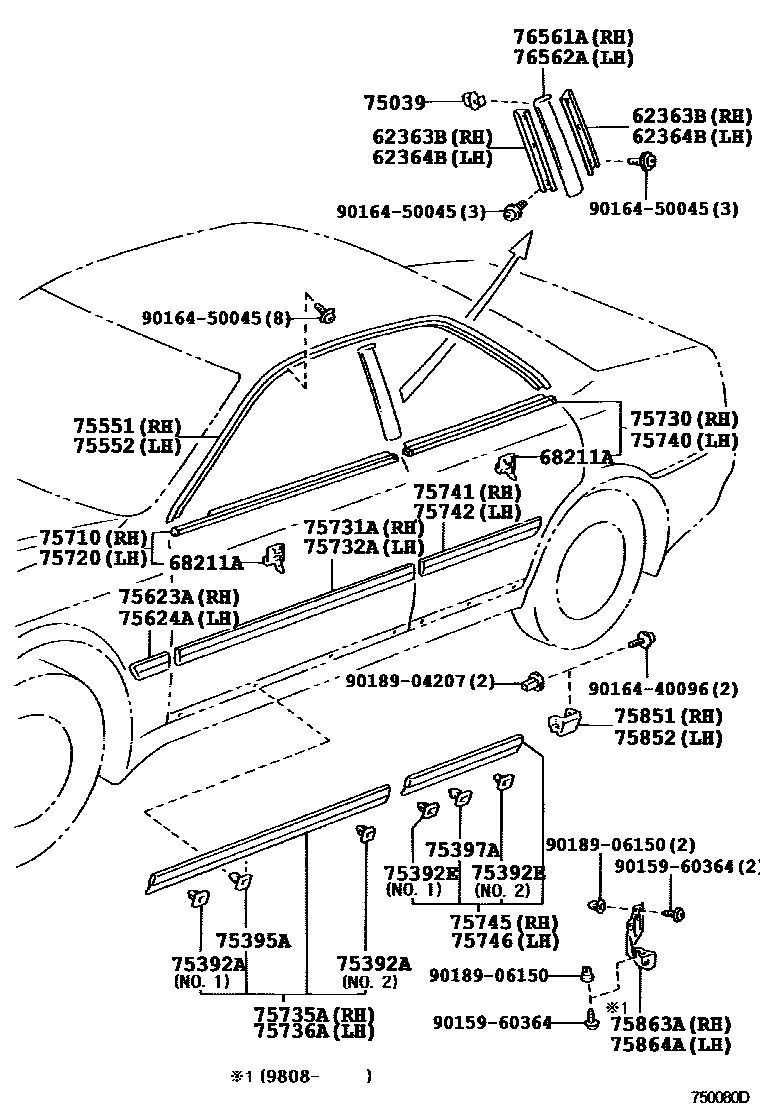

Parts diagram

62363BRETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER RH

main62363-22030×2i199609

62364BRETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER LH

main62363-22030×2i199609

68211ACLIP, DOOR BELT MOULDING

main68211-22150×20i199609

75039CLIP SUB-ASSY, OUTSIDE MOULDING

main75039-22010×8i199609

75392ARETAINER, OUTSIDE MOULDING, NO.1

main75392-22150×2i199609

main75392-22160×2i199609

75392ERETAINER, OUTSIDE MOULDING, NO.1

main75392-22160×2i199609

main75392-22170×2i199609

75395ACLIP, OUTSIDE MOULDING, NO.1

main75395-22210×4i199609

75397ACLIP, OUTSIDE MOULDING, NO.3

main75395-22210×2i199609

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75505-22130i199609

main75505-22140i199609

main75505-22150i199704

TRD SPORT

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75506-22130i199609

main75506-22140i199609

main75506-22150i199704

TRD SPORT

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-22360-A0i199609-200106

SUPER WHITE 2,040

main75623-22360-A1i199808-200001

WHITE PM.,057 ,2CF

main75623-22360-A2i199712-199807

main75623-22360-A3i199908-200012

main75623-22360-B0i199609-199708

SILVER ME,199

main75623-22360-B1i199708-200106

SILVER ME.,1C0

main75623-22360-D0i199609-199808

WINE RED MC.,3L4

main75623-22360-G0i199609-199708

GRAYISH GREEN M.M.,6N0

main75623-22360-G1i199609-199808

DK.GREEN MC.P.I.O.,6N9

main75623-22360-J0i199609-200106

DK.BLUE MC.,8L4

main75623-22360-J1i199808-200106

BLUE MC.,8M6

main75623-22400-A1i200001-200106

WHITE PM.,057 ,2CF

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-22360-A0i199609-200106

SUPER WHITE 2,040

main75624-22360-A1i199808-200001

WHITE PM.,057 ,2CF

main75624-22360-A2i199712-199807

main75624-22360-A3i200012-200106

main75624-22360-B0i199609-199708

SILVER ME,199

main75624-22360-B1i199708-200106

SILVER ME.,1C0

main75624-22360-D0i199609-199808

WINE RED MC.,3L4

main75624-22360-G0i199609-199708

GRAYISH GREEN M.M.,6N0

main75624-22360-G1i199609-199808

DK.GREEN MC.P.I.O.,6N9

main75624-22360-J0i199609-200106

DK.BLUE MC.,8L4

main75624-22360-J1i199808-200106

BLUE MC.,8M6

main75624-22400-A1i199708-199808

WHITE PM.,057

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-22230i199609

main75710-22240i199609

main75710-22270i199704

TRD SPORT

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-22230i199609

main75720-22240i199609

main75720-22270i199704

TRD SPORT

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-22150i199609

main75730-22160i199609

main75730-22210i199704

TRD SPORT

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-22590-A0i199609

SUPER WHITE 2,040

main75731-22590-A1i199808-200001

WHITE PM.,057 ,2CF

main75731-22590-A2i199901-199907

main75731-22590-A3i200012-200106

main75731-22590-B0i199609-199708

SILVER ME,199

main75731-22590-B1i199708

SILVER ME.,1C0

main75731-22590-D0i199609-199808

WINE RED MC.,3L4

main75731-22590-G0i199609-199708

GRAYISH GREEN M.M.,6N0

main75731-22590-G1i199808

DK.GREEN MC.P.I.O.,6N9

main75731-22590-J0i199609

DK.BLUE MC.,8L4

main75731-22590-J1i199808

BLUE MC.,8M6

main75731-22630-A1i200001

WHITE PM.,057 ,2CF

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-22590-A0i199609

SUPER WHITE 2,040

main75732-22590-A1i199609-199708

WHITE PM.,057

main75732-22590-A2i199712-199807

main75732-22590-A3i199908-200012

main75732-22590-B0i199609-199708

SILVER ME,199

main75732-22590-B1i199708

SILVER ME.,1C0

main75732-22590-D0i199609-199808

WINE RED MC.,3L4

main75732-22590-G0i199609-199708

GRAYISH GREEN M.M.,6N0

main75732-22590-G1i199609-199808

DK.GREEN MC.P.I.O.,6N9

main75732-22590-J0i199609

DK.BLUE MC.,8L4

main75732-22590-J1i199808

BLUE MC.,8M6

main75732-22630-A1i200001

WHITE PM.,057 ,2CF

75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH

main75735-22030i199609

75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH

main75736-22030i199609

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-22130i199609

main75740-22140i199609

main75740-22190i199704

TRD SPORT

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-22760-A0i199609

SUPER WHITE 2,040

main75741-22760-A1i199804-199808

main75741-22760-A2i199901-199907

main75741-22760-A3i200012-200106

main75741-22760-B0i199609-199708

SILVER ME,199

main75741-22760-B1i199708

SILVER ME.,1C0

main75741-22760-D0i199609-199808

WINE RED MC.,3L4

main75741-22760-G0i199609-199708

GRAYISH GREEN M.M.,6N0

main75741-22760-G1i199609-199808

DK.GREEN MC.P.I.O.,6N9

main75741-22760-J0i199609

DK.BLUE MC.,8L4

main75741-22760-J1i199808

BLUE MC.,8M6

main75741-22850-A1i199708-199808

WHITE PM.,057

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-22750-A0i199609

SUPER WHITE 2,040

main75742-22750-A1i199808-200001

WHITE PM.,057 ,2CF

main75742-22750-A2i199712-199807

main75742-22750-A3i199908-200012

main75742-22750-B0i199609-199708

SILVER ME,199

main75742-22750-B1i199708

SILVER ME.,1C0

main75742-22750-D0i199609-199808

WINE RED MC.,3L4

main75742-22750-G0i199609-199708

GRAYISH GREEN M.M.,6N0

main75742-22750-G1i199609-199808

DK.GREEN MC.P.I.O.,6N9

main75742-22750-J0i199609

DK.BLUE MC.,8L4

main75742-22750-J1i199808

BLUE MC.,8M6

main75742-22840-A1i199708-199808

WHITE PM.,057

75745MOULDING, REAR DOOR OUTSIDE, LOWER RH

main75745-22050i199609

75746MOULDING, REAR DOOR OUTSIDE, LOWER LH

main75746-22050i199609

75851MOULDING, ROCKER PANEL, RH

main75851-22180i199609

75852MOULDING, ROCKER PANEL, LH

main75852-22100i199609

75863ACOVER, ROCKER PANEL MOULDING END, REAR RH

main75861-22020i199808

75864ACOVER, ROCKER PANEL MOULDING END, REAR LH

main75862-22010i199808

76561AMOULDING, CENTER PILLAR, RH

main76561-22020i199609

main76561-22030i199712-199807

76562AMOULDING, CENTER PILLAR, LH

main76562-22020i199609

main76562-22030i199712-199807

9015960364

main90159-60364

9016440096

main90164-40096

9016450045

main90164-50045

9018904207

main90189-04207

9018906150

main90189-06150

35 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota CHASER

This section contains 35 genuine Toyota parts for the SIDE MOULDING system of the Toyota CHASER. Key components include: RETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER RH, RETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER LH, CLIP, DOOR BELT MOULDING, CLIP SUB-ASSY, OUTSIDE MOULDING, RETAINER, OUTSIDE MOULDING, NO.1.
