Toyota CHASER — SIDE MEMBER

58354SUPPORT, LUGGAGE COMPARTMENT SIDE COVER

main58354-22020i198408-198808

58741BPROTECTOR, QUARTER PANEL, RH

main58741-91601i198408-198508

58742BPROTECTOR, QUARTER PANEL, LH

main58742-91601i198408-198508

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-22100i198408-198808

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-22120i198408-198808

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61125-22020i198408-198808

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-22908i198408-198605

main61131-22909i198605-198808

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-22907i198408-198605

main61132-22908i198605-198808

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-22050i198408-198808

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-22050i198408-198808

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-22110i198408-198808

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-22110i198408-198808

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-22080i198408-198808

61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER

main61173-22070i198408-198808

main61174-22060i198408-198808

61211RAIL, ROOF SIDE, OUTER RH

main61211-22090i198408-198808

61212RAIL, ROOF SIDE, OUTER LH

main61212-22090i198408-198808

61231RAIL, ROOF SIDE, INNER RH

main61231-22180i198408-198808

61232RAIL, ROOF SIDE, INNER LH

main61232-22170i198408-198808

61261CHANNEL, ROOF DRIP, RH

main61261-91606i198408-198808

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-22030i198408-198605

main61263-22031i198605-198808

61262CHANNEL, ROOF DRIP, LH

main61262-91606i198408-198808

61262ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-22040i198408-198605

main61264-22041i198605-198808

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-91195i198408-198808

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-91195i198408-198808

61315RETAINER, DOOR LOCK STRIKER PLATE

main61315-22020×2i198408-198808

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-22110i198408-198808

61343APILLAR, CENTER BODY, INNER RH

main61343-22904i198408-198608

main61343-22908i198608-198808

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-22130i198408-198808

61344APILLAR, CENTER BODY, INNER LH

main61344-22904i198408-198608

main61344-22908i198608-198808

61411PANEL, ROCKER, OUTER RH

main61401-22030i198506-198808

main61401-22040i198408-198506

61412PANEL, ROCKER, OUTER LH

main61402-22030i198507-198808

main61402-22040i198408-198507

61605BRACE SUB-ASSY, QUARTER PANEL, LH

main61609-91603i198408-198808

61611PANEL, QUARTER, RH

main61601-91642i198408-198808

61612PANEL, QUARTER, LH

main61602-22929i198408-198808

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-91601i198710-198808

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-91601i198710-198808

61628AEXTENSION, QUARTER PANEL, LOWER LH

main61628-22020i198408-198808

61631PANEL, QUARTER WHEEL HOUSE, RH

main61607-22914i198408-198808

main61607-22915i198408-198808

main61607-22916i198408-198808

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-22905i198408-198507

main61631-22906i198507-198808

61632PANEL, QUARTER WHEEL HOUSE, LH

main61608-22913i198408-198808

main61608-22914i198408-198808

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-22090i198408-198506

main61632-22100i198506-198808

61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH

main61641-22020i198408-198507

main61641-22030i198507-198808

61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH

main61642-22020i198408-198507

main61642-22030i198507-198808

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-22020i198408-198808

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-91694i198408-198808

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-91608i198408-198808

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-91602i198408-198808

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-22901i198408-198808

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-22901i198408-198808

64225AHANGER, REAR SEAT CUSHION SUPPORT

main64225-22020×2i198408-198808

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9017908025

main90179-08025

9033330002

main90333-30002

9046308053

main90463-08053

9095001027

main90950-01027

9095001029

main90950-01029

9095001056

main90950-01056

9095001060

main90950-01060

9095001431

main90950-01431

9095001480

main90950-01480

9095001481

main90950-01481

9095006013

main90950-06013

9165660820

main91656-60820

9166560616

main91665-60616

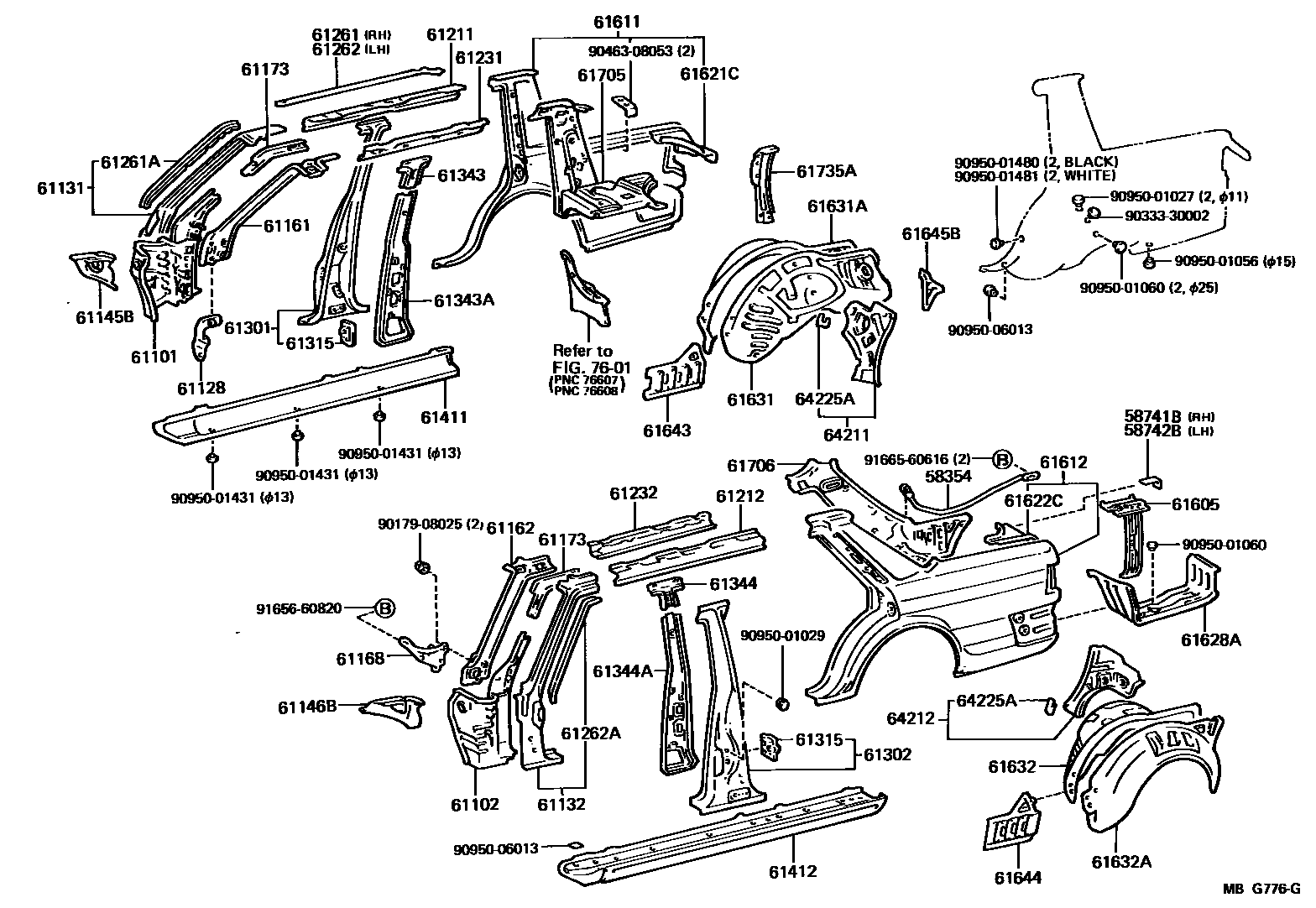

64 parts on this diagram · 2 diagrams in section

SIDE MEMBER for Toyota CHASER

This section contains 69 genuine Toyota parts for the SIDE MEMBER system of the Toyota CHASER. Key components include: SUPPORT, LUGGAGE COMPARTMENT SIDE COVER, PROTECTOR, QUARTER PANEL, RH, PROTECTOR, QUARTER PANEL, LH, PANEL SUB-ASSY, COWL SIDE, RH, PANEL SUB-ASSY, COWL SIDE, LH.
