Toyota CHASER — SHORT BLOCK ASSEMBLY

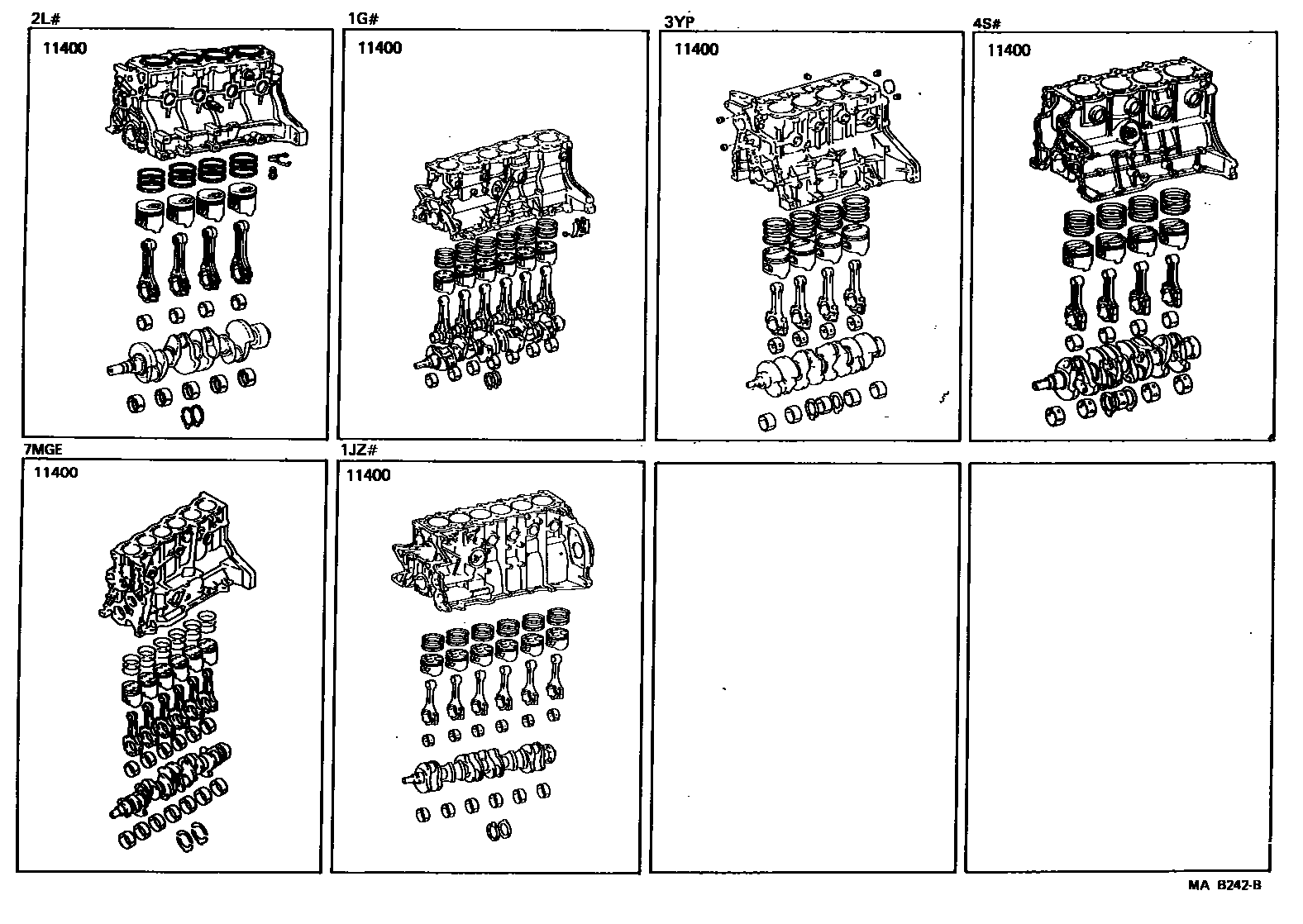

Parts diagram

11400BLOCK ASSY, SHORT

main11400-42160i198908-199210

main11400-49055i199008-199210

main11400-54100i198808-199210

main11400-54110i198808-198908

main11400-54130i198908-199210

main11400-70052i198808-199008

main11400-70070i198808-199110

main11400-70090i198808-199210

main11400-73031i198808-198908

main11400-73032i198908-199210

main11400-74110i198808-198905

main11400-74111i198905-199008

main11400-74141i199008-199210

main11400-88303i199110-199210

main11400-88352i198808-199008

main11400-88400i199008-199210

1 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota CHASER

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota CHASER. Key components include: BLOCK ASSY, SHORT.
