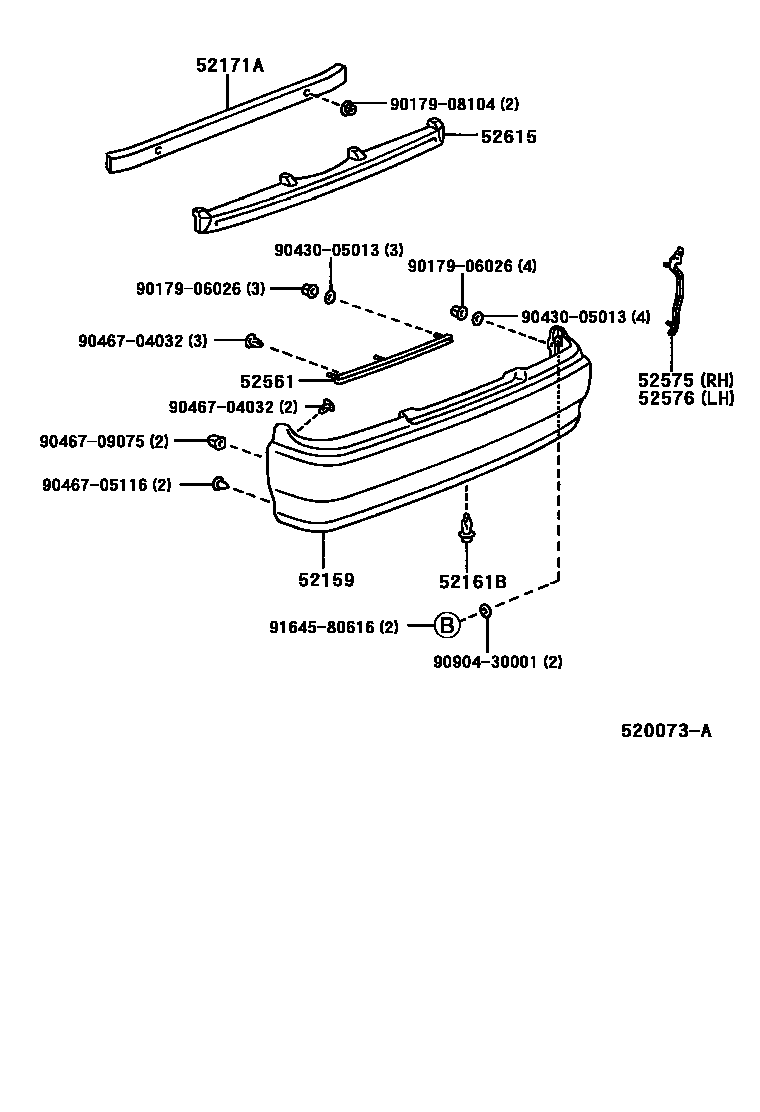

Toyota CHASER — REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
SUPER WHITE 2,040
WHITE PM.,057
SILVER ME,199
SILVER ME.,1C0
WINE RED MC.,3L4
GRAYISH GREEN M.M.,6N0
DK.GREEN MC.P.I.O.,6N9
DK.BLUE MC.,8L4
SUPER WHITE 2,040
WHITE PM.,057
WHITE PM.,2CF
SILVER ME.,1C0
DK.GREEN MC.P.I.O.,6N9
DK.BLUE MC.,8L4
BLUE MC.,8M6
52161BPIECE, REAR BUMPER
52171AREINFORCEMENT, REAR BUMPER, NO.1
52561RETAINER, REAR BUMPER, UPPER CENTER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
9017906026
main90179-06026
9017908104
main90179-08104
9043005013
main90430-05013
9046704032
main90467-04032
9046705116
main90467-05116
9046709075
main90467-09075
9090430001
main90904-30001
9164580616
main91645-80616
15 parts on this diagram · 1 diagram in section
REAR BUMPER & BUMPER STAY for Toyota CHASER
This section contains 15 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota CHASER. Key components include: COVER, REAR BUMPER, PIECE, REAR BUMPER, REINFORCEMENT, REAR BUMPER, NO.1, RETAINER, REAR BUMPER, UPPER CENTER, RETAINER, REAR BUMPER SIDE, RH.
