Toyota CHASER — RADIATOR GRILLE

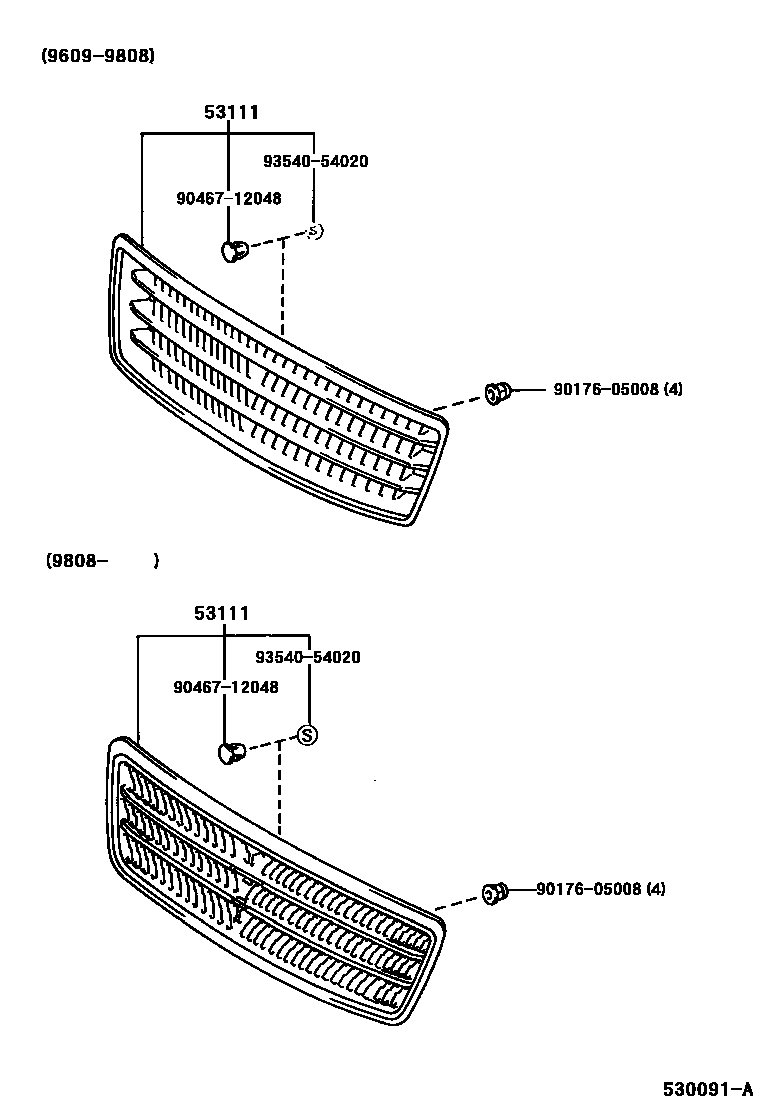

Parts diagram
53111GRILLE, RADIATOR
main53101-22390i199609-199808
main53101-22400i199609-199808
main53101-22430i199712-199807
main53101-22460i199808
main53101-22470i199808
main53101-22500i199901-199907
9017605008
main90176-05008
9046712048
main90467-12048
9354054020
main93540-54020

4 parts on this diagram · 1 diagram in section

RADIATOR GRILLE for Toyota CHASER

This section contains 4 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota CHASER. Key components include: GRILLE, RADIATOR.
