Toyota CHASER — PARTIAL ENGINE ASSEMBLY

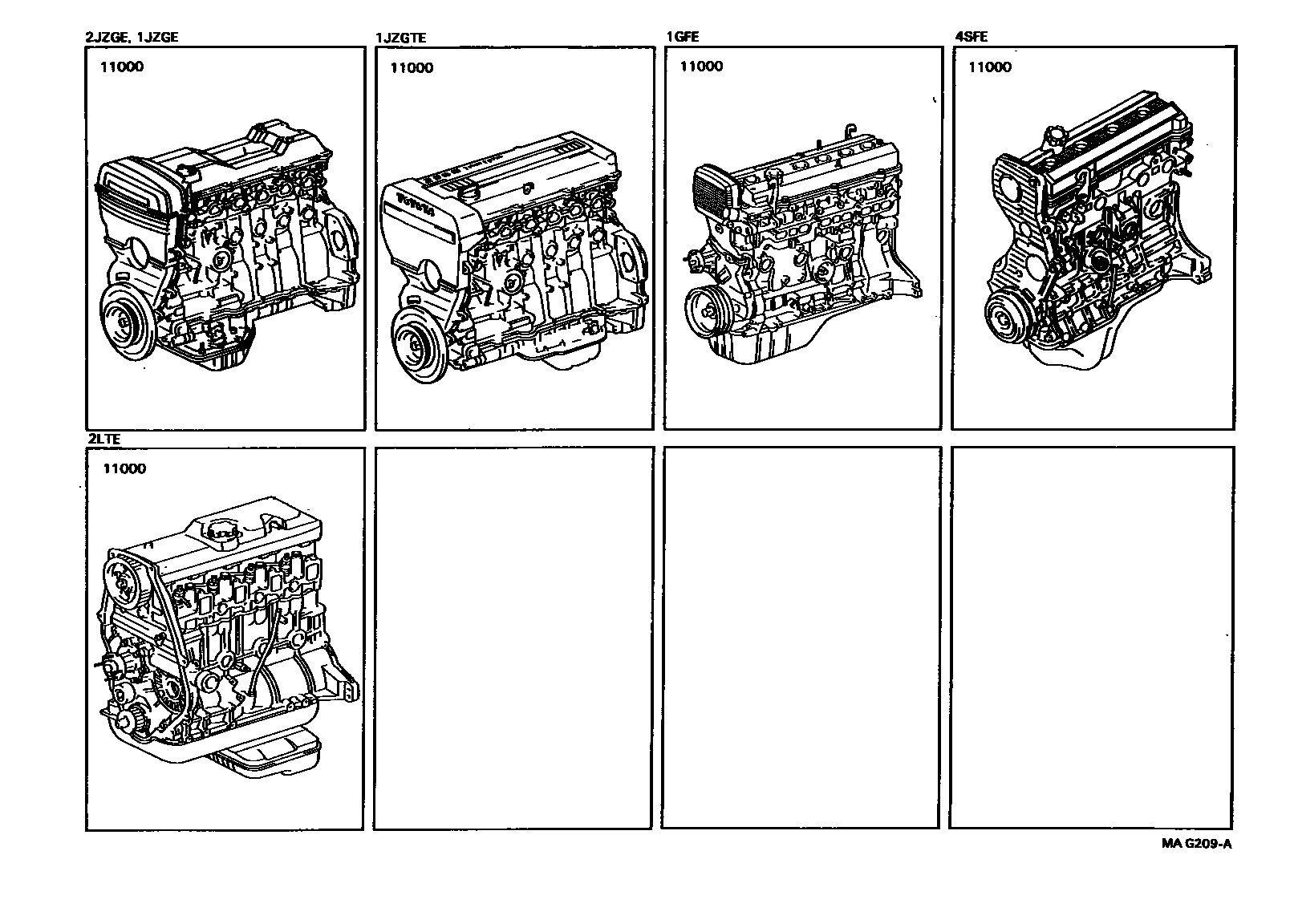

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-46022i199210-199604
sub19000-46024
main19000-46024i199604-199609
sub19000-46025
sub90402-16015
sub90430-16012
main19000-46090i199210-199604
sub19000-46092
main19000-46092i199604-199609
sub19000-46093
main19000-46170i199310-199604
sub19000-46171
main19000-46171i199604-199605
sub19000-46172
main19000-46172i199605-199609
sub19000-46173
sub90402-16015
sub90430-16012
main19000-5B250i199210-199609
main19000-70182i199210-199609
sub19000-70183
main19000-74590i199210-199609
sub19000-74591
sub12204-74020
sub12261-74170
sub12262-74110
sub90480-18001
main19000-88403i199210-199609

1 parts on this diagram · 1 diagram in section
