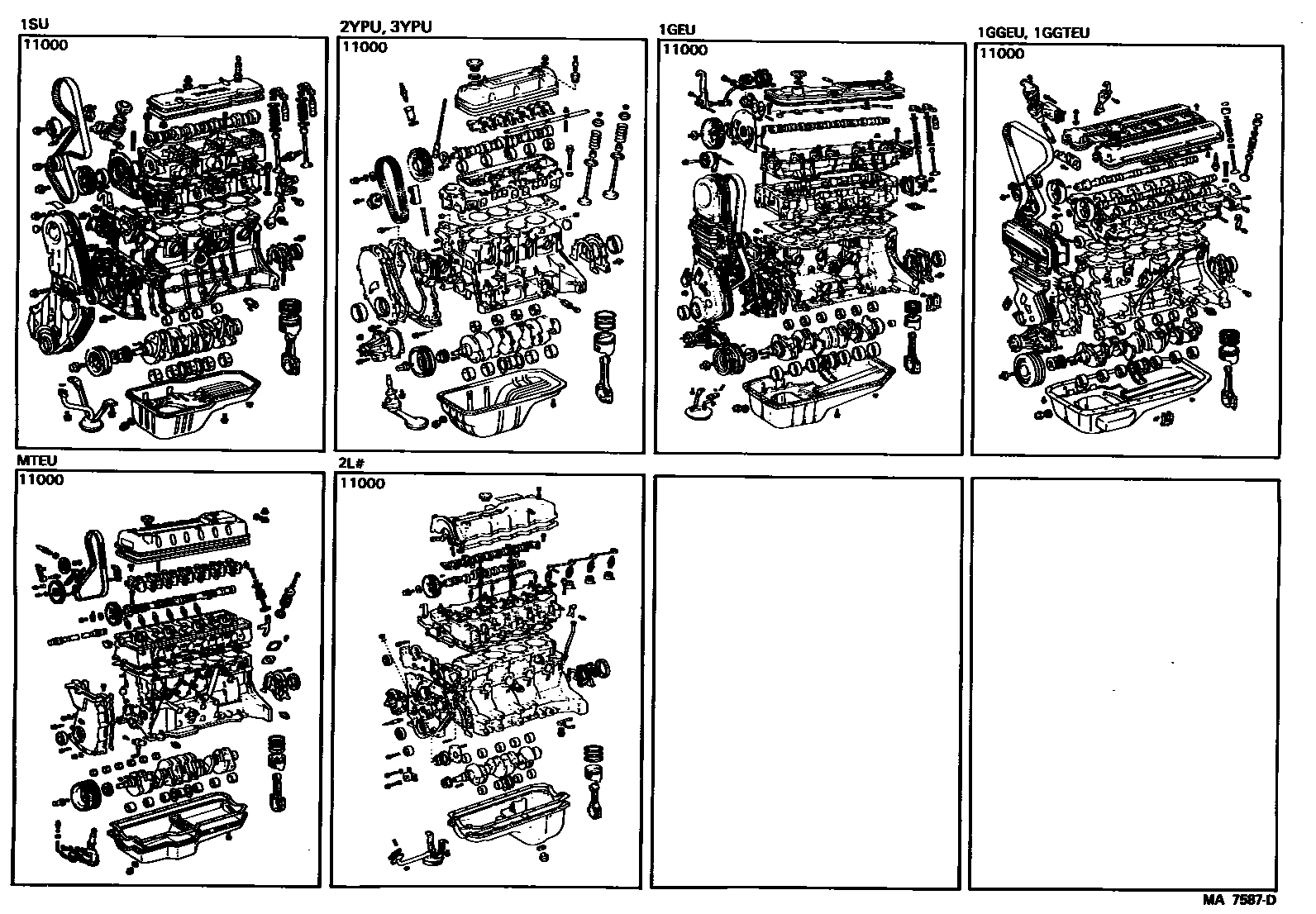

Toyota CHASER — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-41260iMTEU..MX71198408-198510

main19000-54430i2LT..LX70198408-198704

main19000-54431i2LT..LX70198704-198805

sub13405-54060

sub13450-54011

sub32101-30052

sub32116-35010

sub32117-35010

sub90105-12014

sub90105-12094

sub90105-12109

main19000-54432i2LT..LX70198805-198807

main19000-54433i2LT..LX70198807-198808

main19000-54440i2L..LX70198408-198805

sub13405-54060

sub32101-30052

sub32116-35010

sub32117-35010

sub90105-12014

sub90105-12109

main19000-54441i2L..LX70198805-198807

main19000-54442i2L..LX70198807-198808

main19000-63080i1SU..SX70198408-198607

main19000-63081i1SU..SX70198607-198808

main19000-70060i1GEU..GX71198408-198801

main19000-70061i1GEU..GX71198801-198807

sub32921-14162

sub32921-22321

main19000-70062i1GEU..GX71198807-198808

sub19000-70063

main19000-70120i1GGEU..GX71198608-198805

main19000-70121i1GGEU..GX71198805-198807

sub32921-22321

main19000-70122i1GGEU..GX71198807-198808

sub19000-88328

main19000-72130i2YPU..YX70198408-198502

sub16268-72011

main19000-72131i2YPU..YX70198502-198608

main19000-73071i3YPU..YX72198608-198808

sub19000-73072

main19000-88320i1GGEU..GX71198408-198608

main19000-88350i1GGTEU..GX71198510-198808

1 parts on this diagram · 1 diagram in section
