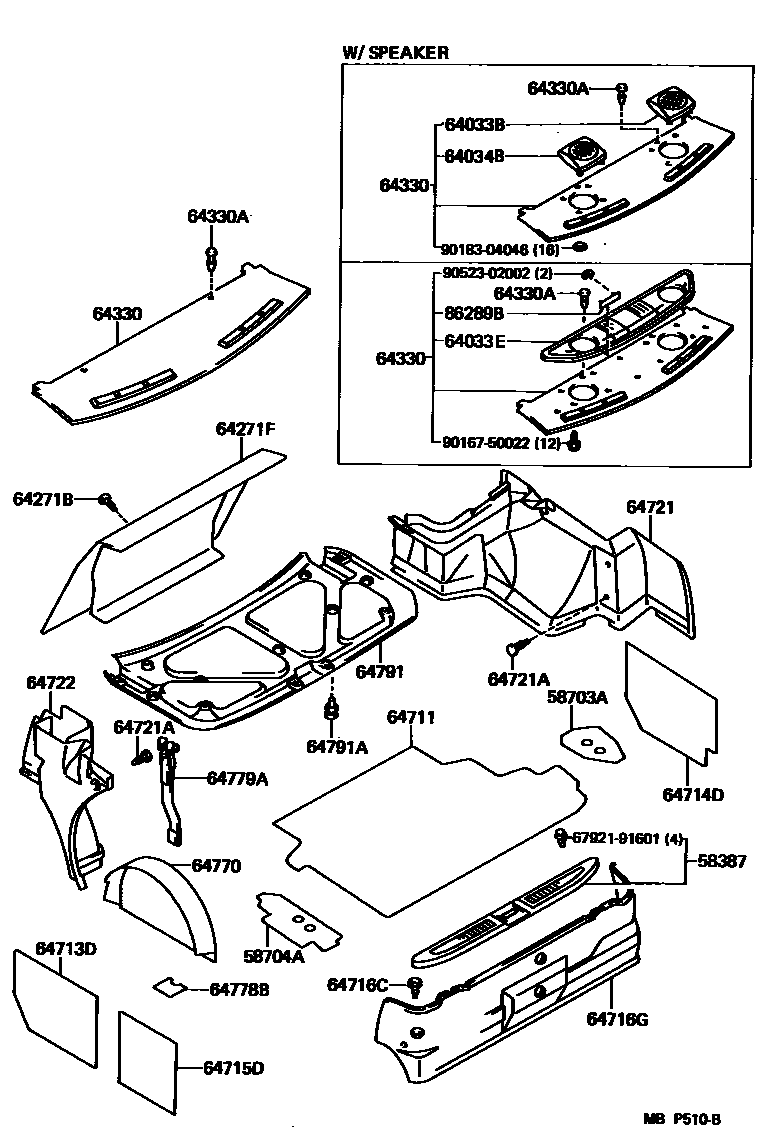

Toyota CHASER — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
64033EGRILLE SUB-ASSY, REAR SPEAKER
NEW MAROON,TRIM3#
DARK BLUE,TRIM8#
SABLE,TRIM4#
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-06070-13×2iGX81,JZX81,LX80,MX83,SX80..AVT,AVTG,GT,SXL,XG; LX80,SX80..KYO; LX80,SX80..XL199008-199210
GRAY,TRIM1#; GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#
64271FTRIM, ROOM PARTITION
GRAY,TRIM3#,4#,8#; GRAY,TRIM4#,8#; GRAY,TRIM8#
GRAY,TRIM3#,4#,8#
64330PANEL ASSY, PACKAGE TRAY TRIM
NEW MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
NEW MAROON,TRIM3#
DARK BLUE,TRIM8#
SABLE,TRIM4#
MEDIUM GRAY,TRIM1#
64711MAT, LUGGAGE COMPARTMENT FLOOR
GRAY,TRIM8#
GRAY,TRIM3#,4#,8#; GRAY,TRIM4#,8#
GRAY,TRIM1#,3#,4#
GRAY,TRIM8#
64713DCOVER, LUGGAGE COMPARTMENT TRIM, FRONT LH
GRAY,TRIM1#
GRAY,TRIM1#,3#,4#
GRAY,TRIM3#,4#,8#; GRAY,TRIM4#,8#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
GRAY,TRIM8#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
GRAY,TRIM8#
GRAY,TRIM8#
GRAY,TRIM3#,4#,8#
GRAY,TRIM3#,4#,8#; GRAY,TRIM4#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#
GRAY,TRIM3#,4#,8#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#
GRAY,TRIM3#,4#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
LIGHT GRAY,TRIM3#,4#,8#; LIGHT GRAY,TRIM4#,8#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#
GRAY,TRIM1#,3#,4#
64770COVER ASSY, SPARE WHEEL
GRAY,TRIM1#,3#,4#
GRAY,TRIM1#,3#,4#; GRAY,TRIM1#,4#
GRAY,TRIM8#
64778BPROTECTOR, SPARE WHEEL
64779ASTOPPER, SPARE WHEEL COVER
64791COVER, BACK DOOR TRIM
GRAY,TRIM3#,4#,8#
main64791-91603-03iGX81,JZX81,LX80,SX80..AVT,GT,SXL,XG; LX80,SX80,YX80..KYO; LX80,SX80..XL199008-199210
64791ACLIP(FOR BACK DOOR TRIM)
86289BPLATE, SPEAKER GRILE
6792191601RETAINER, FRONT DOOR SCUFF PLATE
main67921-91601
9016750022
main90167-50022
9018304046
main90183-04046
9052302002
main90523-02002
29 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CHASER
This section contains 29 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CHASER. Key components include: PLATE, REAR FLOOR FINISH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER.
