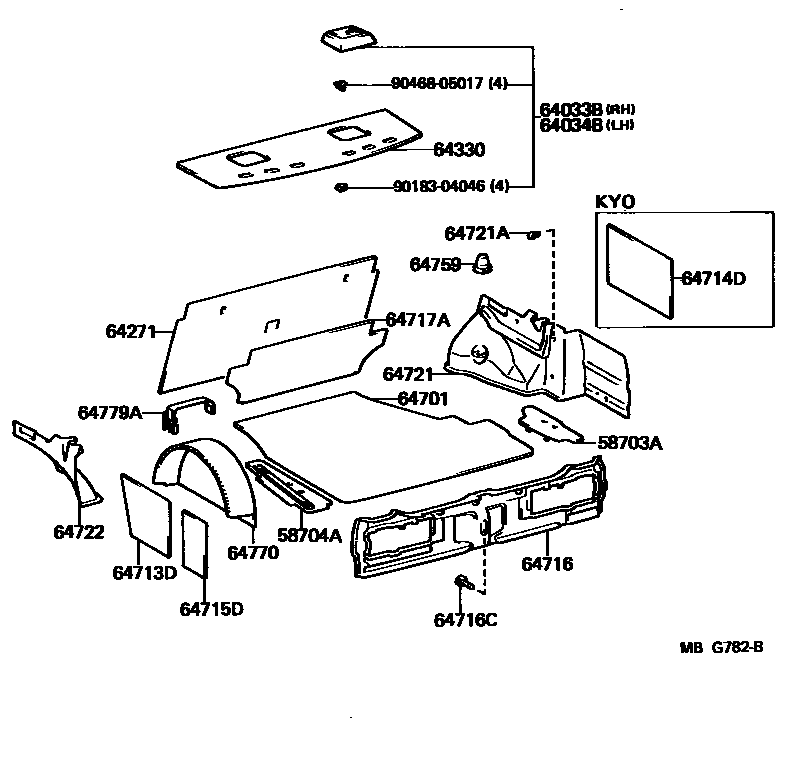

Toyota CHASER — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
MAROON,MEDIUM GRAY,TRIM3#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
GRAY,COOL GRAY,TRIM1#
PIONEER
PIONEER
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
MAROON,MEDIUM GRAY,TRIM3#
BLUE,DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BEIGE,BEIGE,TRIM4#
GRAY,COOL GRAY,TRIM1#
PIONEER
PIONEER
64271BOARD, ROOM PARTITION, NO.1
64330PANEL ASSY, PACKAGE TRAY TRIM
GT-S PACKAGE,MAROON,MAROON,TRIM3#; XL EXTRA,MAROON,MAROON,TRIM3#
GRAY,COOL GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#; XL EXTRA,MAROON,MAROON,TRIM3#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,COOL GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
BEIGE,DARK BEIGE,TRIM4#
W/RR WIPER,MAROON,MAROON,TRIM3#
W/RR WIPER,GRAY,COOL GRAY,TRIM1#
W/RR WIPER,BLUE,DARK BLUE,TRIM8#
W/RR WIPER,BEIGE,BEIGE,TRIM4#
W/RR WIPER,MAROON,MAROON,TRIM3#
W/RR WIPER,BEIGE,DARK BEIGE,TRIM4#
GT-S PACKAGE,W/RR WIPER,MAROON,MAROON,TRIM3#
GT-S PACKAGE,W/RR WIPER,GRAY,COOL GRAY,TRIM1#
GT-S PACKAGE,W/RR WIPER,BEIGE,BEIGE,TRIM4#
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
GT-S PACKAGE
64713DCOVER, LUGGAGE COMPARTMENT TRIM, FRONT LH
GT-S PACKAGE
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
GT-S PACKAGE
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
GRAY,GRAY,TRIM1#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
GRAY,GRAY,TRIM1#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
GT-S PACKAGE
64759COVER, SHOCK ABSORBER HEAD
GRAY,GRAY,TRIM1#
GRAY,GRAY,TRIM1#
GRAY,GRAY,TRIM1#
64770COVER ASSY, SPARE WHEEL
GT-S PACKAGE
64779ASTOPPER, SPARE WHEEL COVER
9018304046
main90183-04046
9046805017
main90468-05017
21 parts on this diagram · 1 diagram in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CHASER
This section contains 21 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CHASER. Key components include: COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH, BOARD, ROOM PARTITION, NO.1.
