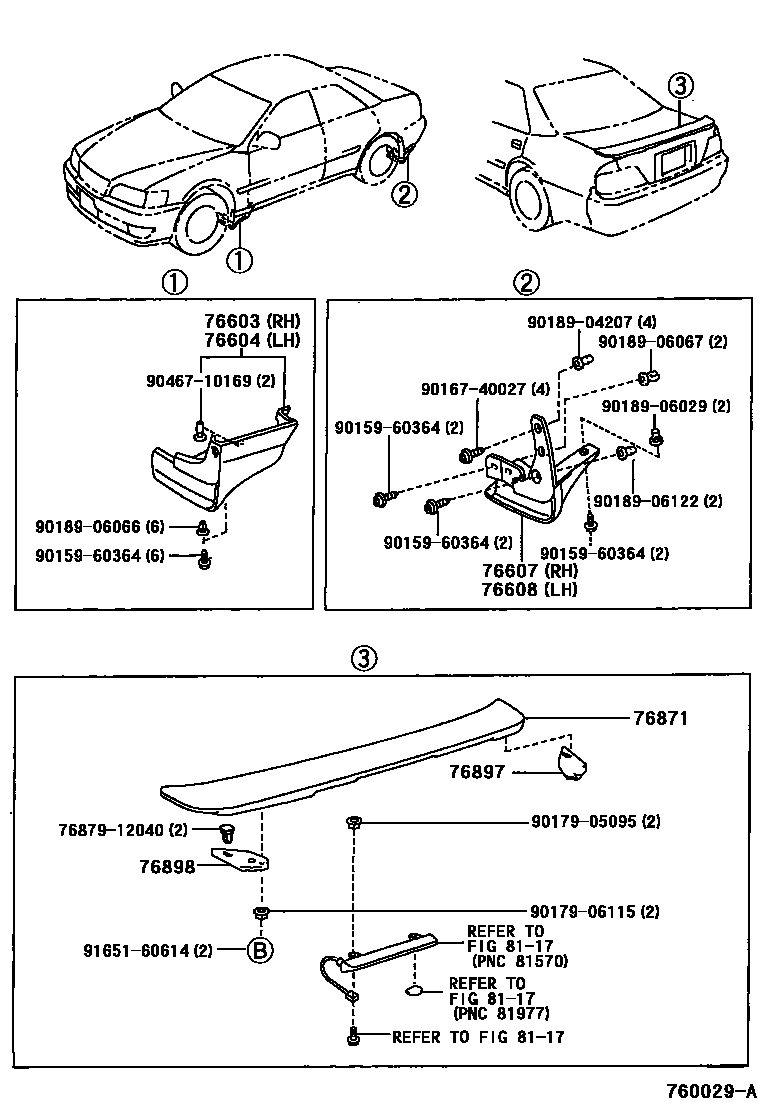

Toyota CHASER — MUDGUARD & SPOILER
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76871SPOILER, REAR
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
8117CENTER STOP LAMP
9015960364
main90159-60364
9016740027
main90167-40027
9017905095
main90179-05095
9017906115
main90179-06115
9018904207
main90189-04207
9018906029
main90189-06029
9018906066
main90189-06066
9018906067
main90189-06067
9018906122
main90189-06122
9046710169
main90467-10169
9165160614
main91651-60614
19 parts on this diagram · 1 diagram in section
MUDGUARD & SPOILER for Toyota CHASER
This section contains 19 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota CHASER. Key components include: MUDGUARD SUB-ASSY, FRONT FENDER, RH, MUDGUARD SUB-ASSY, FRONT FENDER, LH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH, SPOILER, REAR.
