Toyota CHASER — MOUNTING

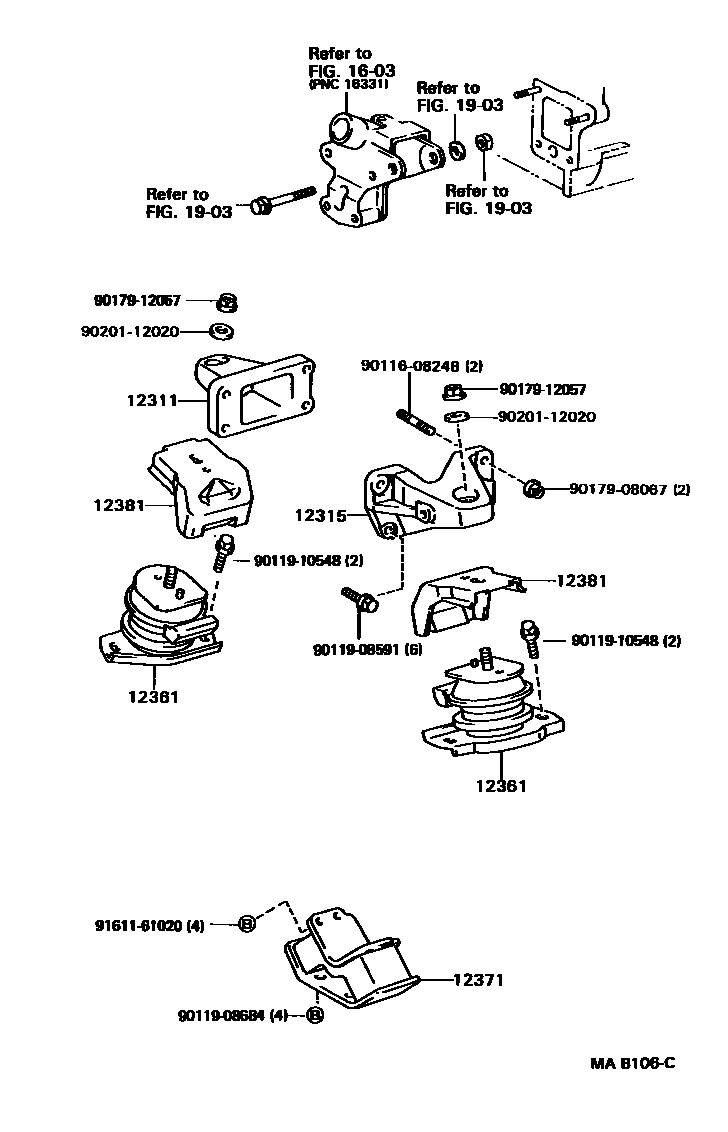

Parts diagram
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
main12311-42030i198908-199002
main12311-42060i199002-199210
main12311-46020i199008-199210
main12311-54130i198808-199008
main12311-54190i199008-199210
main12311-70090i198808-199210
main12311-71010i198808-199210
main12311-74070i198808-199210
main12311-88341i198808-199008
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
main12315-42030i198908-199002
main12315-42060i199002-199210
main12315-46020i199008-199210
main12315-70060i198808-199210
main12315-71010i198808-199210
main12315-74050i198808-199210
12361INSULATOR, ENGINE MOUNTING, FRONT
main12361-42040×2i198808-198810
main12361-42060×2i199002-199210
main12361-54152×2i198808-198903
main12361-54153×2i198903-198910
main12361-54180×2i198910-199210
main12361-70120×2i198808-198907
main12361-70130i198808-198908
main12361-70131i198908-199008
main12361-70150i198810-198906
main12361-70151×2i198906-199002
main12361-70160×2i198810-198906
main12361-70170×2i198907-198908
main12361-70180×2i198908-199210
main12361-71020×2i198808-199210
main12361-74090×2i198808-199210
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
main12371-34020i198808-199210
main12371-34030i198808-199210
main12371-42020i198808-199210
main12371-54040i198808-199210
12381STABILIZER, ENGINE MOUNTING
main12381-42020×2i199002-199008
main12381-42040×2i199002-199210
main12381-70010×2i198808-199210
main12381-70020i198808-199008
main12381-71030×2i198808-199210
main12381-73010×2i198808-199210
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
1903ALTERNATOR
→ Go to FIG 19-03
9011608248
main90116-08248
9011908591
main90119-08591
9011908684
main90119-08684
9011910548
main90119-10548
9017908067
main90179-08067
9017912057
main90179-12057
9020112020
main90201-12020
9161161020
main91611-61020

15 parts on this diagram · 10 diagrams in section

MOUNTING for Toyota CHASER

This section contains 58 genuine Toyota parts for the MOUNTING system of the Toyota CHASER. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR ASSY, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1.
