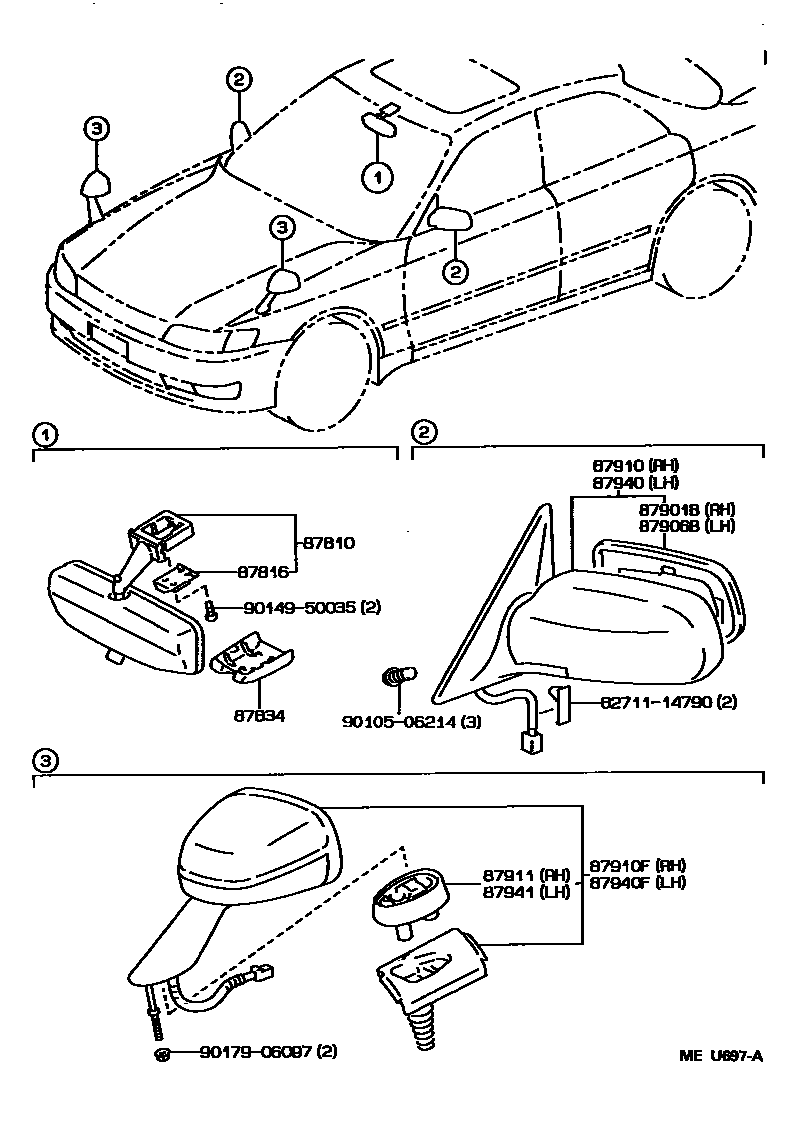

Toyota CHASER — MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-22210-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

BEIGE,TRIM4#

sub87810-22210

main87810-22210-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

JADE,TRIM6#

sub87810-22210

main87810-22210-J0iJZX90..TOUS,TOUV199210-199609

GRAYISH BLUE,TRIM8#

sub87810-22210

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iGX90,JZX9#,LX90,SX90199210-199609

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-22060-A0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,XL199210-199609

IVORY,TRIM4#

main87834-22060-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199609

LT.SPRUCE,TRIM6#

main87834-22060-J0iJZX90..TOUS,TOUV199210-199609

LT.BLUE,TRIM8#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-2A160iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199404-199609

main87931-2A160iSX90..XL199409-199609

main87931-2A170iJZX9#..AVTG199210-199409

main87931-2A190iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

ICHIKOH

main87931-2A190iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

main87931-2A190iGX90,JZX9#,LX90,SX90199210-199609

main87931-2A190iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199404-199409

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-2A160iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199404-199609

main87961-2A160iSX90..XL199409-199609

main87961-2A170iJZX9#..AVTG199210-199409

main87961-2A190iGX90,JZX9#,LX90,SX90199409-199609

ICHIKOH

main87961-2A190iGX90,JZX9#,LX90,SX90199210-199404

main87961-2A190iLX90,SX90..XL199404-199409

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-2A160-A0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199404-199609

sub87910-2A190

main87910-2A160-A1iJZX9#199404-199609

sub87910-2A190

main87910-2A160-B0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199404-199409

sub87910-2A190

main87910-2A160-B1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

sub87910-2A190

main87910-2A160-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199404-199609

sub87910-2A190

main87910-2A160-E1iSX90..XL199409-199609

sub87910-2A190

main87910-2A160-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199404-199409

sub87910-2A190

main87910-2A160-G1iGX90,JZX9#199404-199609

sub87910-2A190

main87910-2A160-H0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199404-199509

sub87910-2A190

main87910-2A170-A0iJZX9#..AVTG199210-199409

main87910-2A170-A1iJZX9#..AVTG199210-199409

main87910-2A170-B0iJZX9#..AVTG199210-199409

main87910-2A170-E0iJZX9#..AVTG199210-199409

main87910-2A170-G0iJZX9#..AVTG199210-199409

main87910-2A170-G1iJZX9#..AVTG199210-199409

main87910-2A170-H0iJZX9#..AVTG199310-199409

main87910-2A180iLX90,SX90..XL199210-199609

main87910-2A190-A0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

SUPER WHITE 2,040,ICHIKOH

sub87910-2A190

main87910-2A190-A0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

sub87910-2A190

main87910-2A190-A1iJZX9#199210-199409

sub87910-2A190

main87910-2A190-A1iGX90..ATM199304-199309

sub87910-2A190

main87910-2A190-A1iJZX90;GX90,JZX91,93..ATM199409-199609

WARM GRAY PM,046,ICHIKOH

sub87910-2A190

main87910-2A190-A2iJZX90..AVT199310-199312

sub87910-2A190

main87910-2A190-A3iGX90..ATM199604-199609

sub87910-2A190

main87910-2A190-B0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

sub87910-2A190

main87910-2A190-B1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

SILVER ME,199,ICHIKOH

sub87910-2A190

main87910-2A190-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199210-199409

sub87910-2A190

main87910-2A190-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199409-199609

FLAXEN MM,4M7,ICHIKOH

sub87910-2A190

main87910-2A190-E1iSX90..XL199409-199609

DK.BROWN MC.,4N2,ICHIKOH

sub87910-2A190

main87910-2A190-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

sub87910-2A190

main87910-2A190-G1iGX90..ATM;LX90..RAF199304-199309

sub87910-2A190

main87910-2A190-G1iGX90,JZX9#199210-199409

sub87910-2A190

main87910-2A190-G1iJZX9#199409-199609

DK.GREEN MIO,6N2,ICHIKOH

sub87910-2A190

main87910-2A190-G1iLX90..RAF199310-199408

sub87910-2A190

main87910-2A190-G2iGX90..ATM199504-199603

sub87910-2A190

main87910-2A190-G2iGX90..ATM199604-199609

sub87910-2A190

main87910-2A190-H0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199509

DK.TURQUOISE MC.,742,ICHIKOH

sub87910-2A190

main87910-2A190-H0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199310-199409

sub87910-2A190

87910FMIRROR ASSY, FENDER, RH

main87910-2A200iGX90,JZX9#,LX90,SX90199210-199609

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-22220iGX90,JZX9#,LX90,SX90199210-199609

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-2A160-A0iSX90..XL199404-199609

sub87940-2A160

sub87940-2A190

main87940-2A160-A1iJZX90;GX90,JZX91,93..ATM199404-199609

sub87940-2A160

sub87940-2A190

main87940-2A160-B0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199404-199409

sub87940-2A160

sub87940-2A190

main87940-2A160-B1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

sub87940-2A160

sub87940-2A190

main87940-2A160-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199404-199609

sub87940-2A160

sub87940-2A190

main87940-2A160-E1iSX90..XL199409-199609

sub87940-2A160

sub87940-2A190

main87940-2A160-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199404-199409

sub87940-2A160

sub87940-2A190

main87940-2A160-G1iJZX9#199404-199609

sub87940-2A160

sub87940-2A190

main87940-2A160-H0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199404-199509

sub87940-2A160

sub87940-2A190

main87940-2A170-A0iJZX9#..AVTG199210-199409

main87940-2A170-A1iJZX9#..AVTG199210-199409

main87940-2A170-B0iJZX9#..AVTG199210-199409

main87940-2A170-E0iJZX9#..AVTG199210-199409

main87940-2A170-G0iJZX9#..AVTG199210-199409

main87940-2A170-G1iJZX9#..AVTG199210-199409

main87940-2A170-H0iJZX9#..AVTG199310-199409

main87940-2A180iLX90,SX90..XL199210-199609

main87940-2A190-A0iSX90..XL199409-199609

SUPER WHITE 2,040,ICHIKOH

sub87940-2A190

main87940-2A190-A0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

sub87940-2A190

main87940-2A190-A1iJZX9#199409-199609

WARM GRAY PM,046,ICHIKOH

sub87940-2A190

main87940-2A190-A1iGX90,JZX9#199210-199409

sub87940-2A190

main87940-2A190-A1iGX90..ATM199304-199309

sub87940-2A190

main87940-2A190-A2iJZX90..AVT199310-199312

sub87940-2A190

main87940-2A190-A3iGX90..ATM199604-199609

sub87940-2A190

main87940-2A190-B0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

sub87940-2A190

main87940-2A190-B1iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

SILVER ME,199,ICHIKOH

sub87940-2A190

main87940-2A190-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199409-199609

FLAXEN MM,4M7,ICHIKOH

sub87940-2A190

main87940-2A190-E0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF199210-199409

sub87940-2A190

main87940-2A190-E1iSX90..XL199409-199609

DK.BROWN MC.,4N2,ICHIKOH

sub87940-2A190

main87940-2A190-G0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199210-199409

sub87940-2A190

main87940-2A190-G1iGX90..ATM;LX90..RAF199304-199309

sub87940-2A190

main87940-2A190-G1iGX90,JZX91,93..ATM;JZX90,LX90..AVT,AVTG,RAF,TOUS,TOUV199409-199609

DK.GREEN MIO,6N2,ICHIKOH

sub87940-2A190

main87940-2A190-G1iLX90..RAF199310-199408

sub87940-2A190

main87940-2A190-G1iJZX9#199210-199409

sub87940-2A190

main87940-2A190-G2iGX90..ATM199504-199603

sub87940-2A190

main87940-2A190-G2iGX90..ATM199604-199609

sub87940-2A190

main87940-2A190-H0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199310-199409

sub87940-2A190

main87940-2A190-H0iGX90,JZX9#,LX90,SX90..AVT,AVTG,RAF,TOUS,TOUV199409-199509

DK.TURQUOISE MC.,742,ICHIKOH

sub87940-2A190

87940FMIRROR ASSY, FENDER, LH

main87940-2A200iGX90,JZX9#,LX90,SX90199210-199609

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-22230iGX90,JZX9#,LX90,SX90199210-199609

8271114790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14790

9010506214

main90105-06214

9014950035

main90149-50035

9017906097

main90179-06097

15 parts on this diagram · 2 diagrams in section
