Toyota CHASER — MIRROR

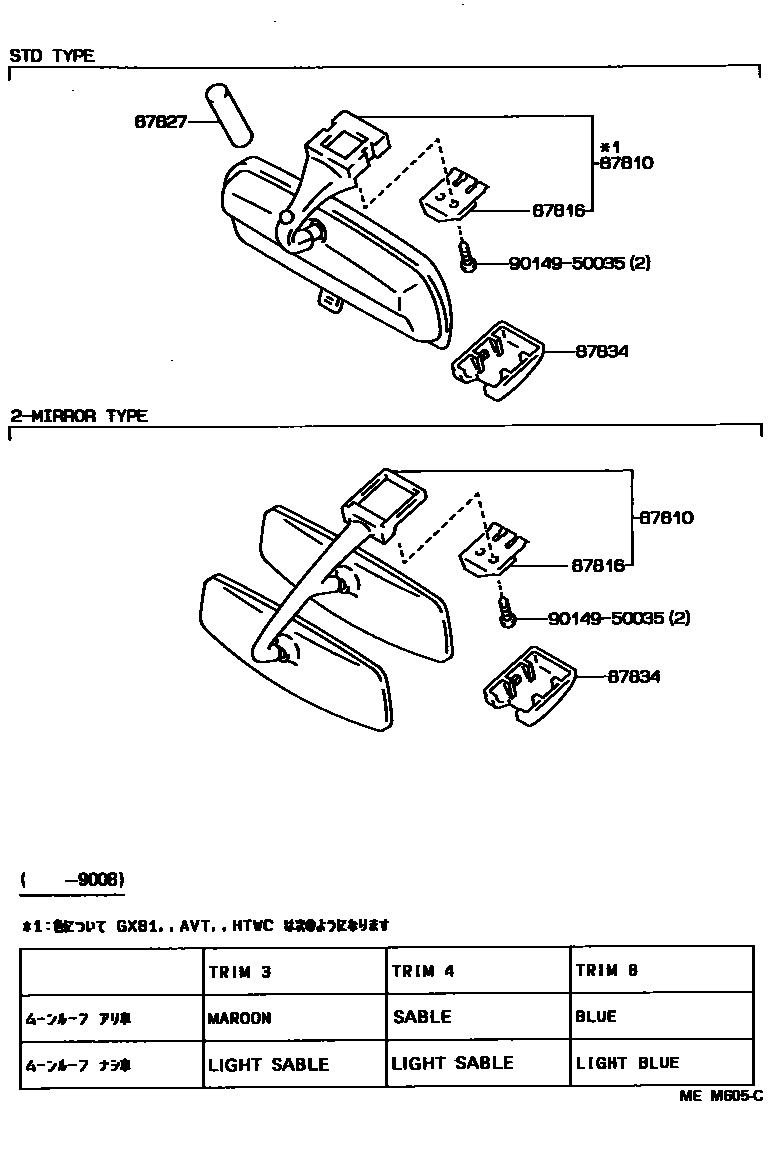

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-22200-02i198808-199008
MAROON,TRIM3#
main87810-22200-04i198808-199008
BLUE,TRIM8#
main87810-22200-06i198808-199008
SABLE,TRIM4#
main87810-22200-12i199008-199210
NEW MAROON,TRIM3#
main87810-22200-13i199008-199210
MEDIUM GRAY,TRIM1#
main87810-22200-14i198808-199008
LIGHT BLUE,TRIM8#
main87810-22200-16i198808-199008
LIGHT SABLE,TRIM3#,4#; LIGHT SABLE,TRIM4#
main87810-91502i198908-199008
main87810-91502-03i199008-199210
MEDIUM GRAY,TRIM1#
main87810-91502-24i198808-198908
LIGHT BLUE,TRIM8#
87816SPRING, INNER REAR VIEW MIRROR
main74372-30030i198808-199210
87827ABSORBER, INNER REAR VIEW MIRROR
main87828-22050i198808-199210
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-14021-34i198808-199008
BLUE,TRIM8#
main87834-14021-43i199008-199210
MEDIUM GRAY,TRIM1#
main87834-22050-02i198808-199008
MAROON,TRIM3#
main87834-22050-04i198808-199008
BLUE,TRIM8#
main87834-22050-06i198808-199008
SABLE,TRIM3#,4#; SABLE,TRIM4#
main87834-22050-12i199008-199210
NEW MAROON,TRIM3#
main87834-22050-13i199008-199210
MEDIUM GRAY,TRIM1#
main87834-22050-14i198808-199008
BLUE,TRIM8#
main87834-22050-16i198908-199008
SABLE,TRIM4#
9014950035
main90149-50035

5 parts on this diagram · 2 diagrams in section

MIRROR for Toyota CHASER

This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota CHASER. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
