Toyota CHASER — MIRROR
87803SWITCH SUB-ASSY, INNER MIRROR
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
87810MIRROR ASSY, INNER REAR VIEW
BLACK,BLACK,TRIM2#
MANUAL TYPE,DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
MANUAL TYPE,DARK BROWN,BROWN,TRIM4#
DARK BROWN,BROWN,TRIM4#
MANUAL TYPE,BLUE,BLUE,TRIM8#
AUTOMATIC TYPE,DEEP MAROON,RED/MAROON,TRIM3#
AUTOMATIC TYPE,BLUE,BLUE,TRIM8#
AUTOMATIC TYPE,DARK BROWN,BROWN,TRIM4#
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
AUTOMATIC TYPE
MANUAL TYPE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
BLUE,BLUE,TRIM8#
MANUAL TYPE,IVORY,IVORY,TRIM3#,4#
IVORY,IVORY,TRIM2#,4#
MANUAL TYPE,BLUE,BLUE,TRIM8#
9015950016
main90159-50016

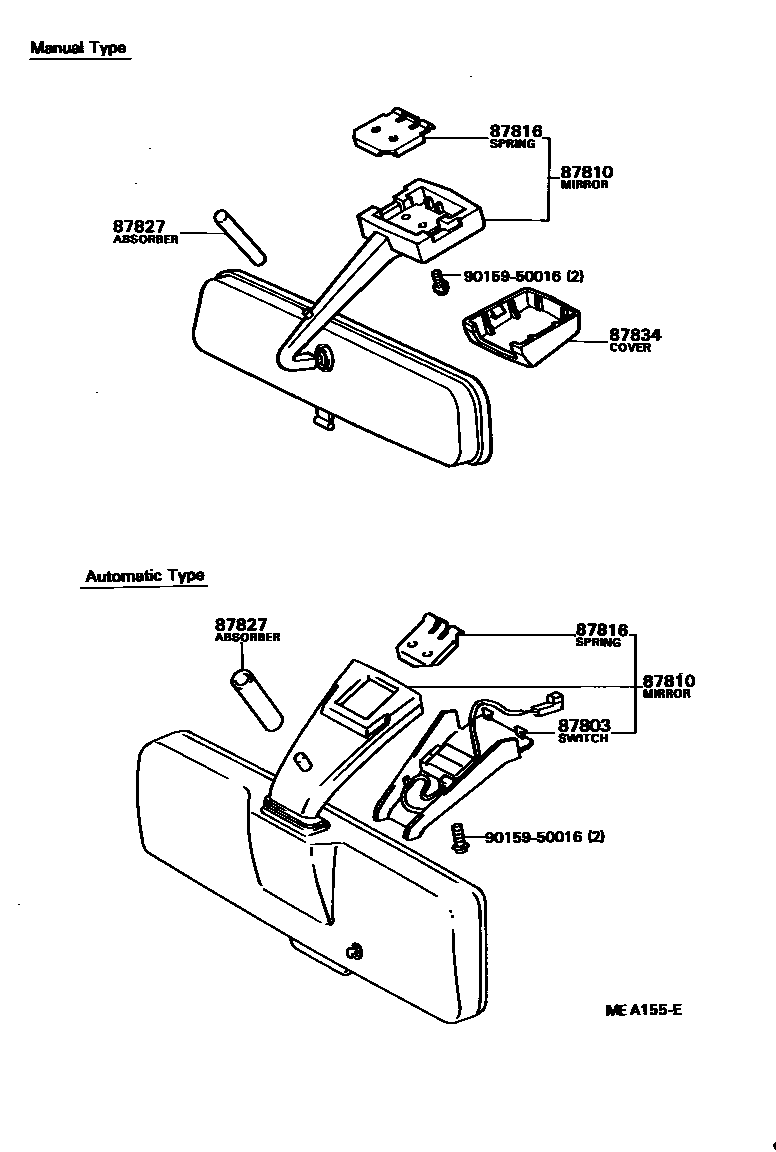

6 parts on this diagram · 2 diagrams in section
MIRROR for Toyota CHASER
This section contains 17 genuine Toyota parts for the MIRROR system of the Toyota CHASER. Key components include: SWITCH SUB-ASSY, INNER MIRROR, MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER.
