Toyota CHASER — METER

0001 1������-� , ����������� 0002 1������-� , ����������� 0003 1������-� , ����������� 0004 1�������-� 0005 1�������-� 0006 1�������-� 0007 1����� & ����(��������,�������0008 1����� & ����(��������,�������0009 1����� & ����(���������) 0010 1����� & ����(���������) 0011 1���� & ���-�����

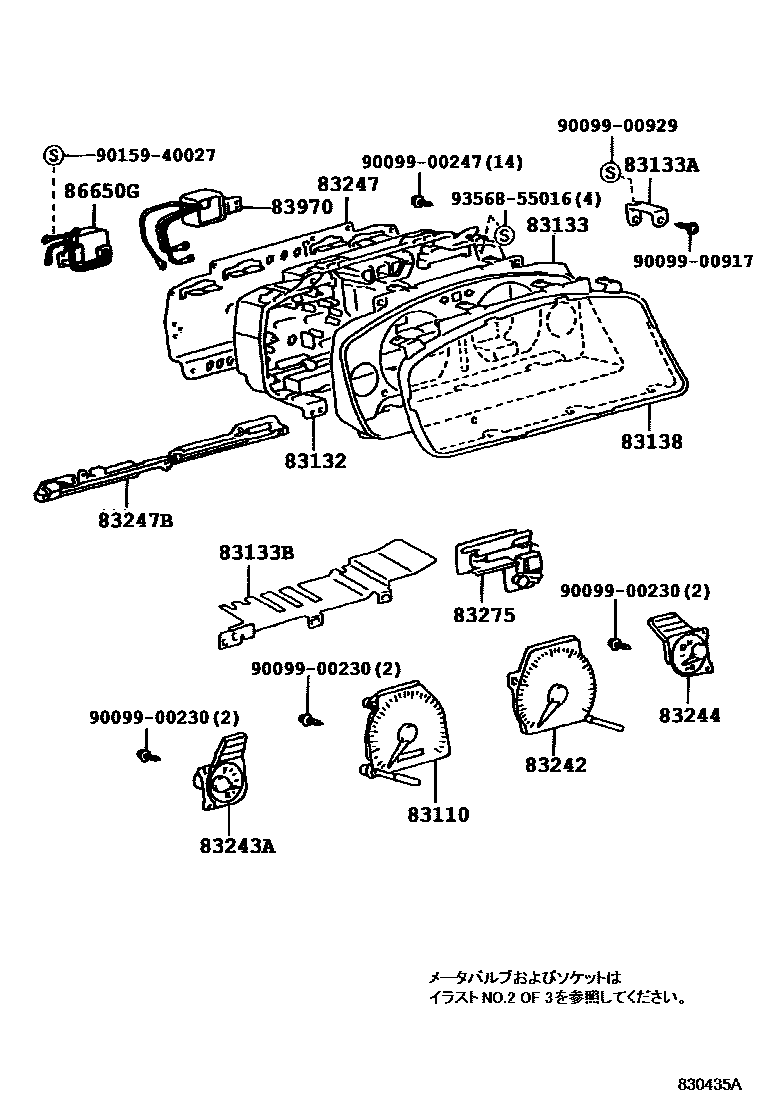

83110SPEEDOMETER ASSY

main83220-22010iGX105,SX100199704

main83220-22020iGX10#,JZX100,105..AVT,TOU,TOUS,TOUV199609

main83220-22030iLX100199609-199908

83132CASE, COMBINATION METER

main83841-22010iGX10#,JZX10#..4FC..(AVT,AVTG)199609

main83841-22040iSX100199704

main83841-22050iGX100..5F199609

main83841-22060iGX10#,JZX100,105..4FC..AVT199609

main83841-22070iGX100,JZX100..4FC..(TOU,TOUS)199609

main83841-22080iLX100199609-199908

main83841-22120iJZX100..5F199609

main83841-22130iJZX100..4FC..TOUV199609

main83841-22140iJZX105199801-199808

main83841-22220iJZX100..AVT199808

main83841-22240iJZX100..TOUS199808

main83842-22010iGX10#,JZX10#..4FC..(AVT,AVTG)199609

83133PLATE, COMBINATION METER, NO.1

main83811-22040iJZX105199801-199808

main83811-22050iGX100,JZX100..5F199609

main83811-22060iGX10#,JZX100,105,LX100..4FC..(AVT,XL)199609

main83811-22070iGX100,JZX100..ATM..(TOU,TOUS,TOUV)199609

83133APLATE, COMBINATION METER, NO.2

main83811-22080iGX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL199609

83133BPLATE, COMBINATION METER, NO.3

main83811-22090iGX100,JZX10#,LX100199609-199808

83138GLASS, SPEEDOMETER

main83852-22010iGX10#,JZX10#..4FC..(AVT,AVTG)199609

main83852-22040iJZX105199801-199808

main83852-22050iGX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL199609

83242TACHOMETER ASSY, ENGINE

main83881-22040iSX100199704

main83881-22050iGX100..AVT199702-199808

main83881-22070iGX100..TOU199702-199808

main83881-22080iLX100199609-199908

main83881-22090iJZX100,105..AVT,TOUS199609-199702

main83881-22110iJZX100..TOUS199702

main83881-22120iJZX100..TOUV199609

main83881-22140iJZX105199801-199808

main83881-22160iGX10#..AVT199808

main83881-22170iGX100..TOU199808

main83881-22300iGX105199808

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-22040iJZX105199801-199808

main83882-22050iGX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL199609

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-22040iGX105,SX100199704

main83883-22050iGX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL199609

83247PLATE, METER CIRCUIT

main83861-22010iGX100,JZX101..4FC..(AVT,AVTG)199609-199708

main83861-22011iGX100,JZX101..4FC..(AVT,AVTG)199708-199808

main83861-22020iJZX100,105..AVT,AVTG199609-199708

main83861-22021iJZX100,105..AVT,AVTG199708-199808

main83861-22040iJZX105199801-199808

main83861-22070iGX100,JZX100..4FC..(TOU,TOUS,TOUV)199609-199808

main83861-22080iJZX100..5F;GX100,JZX100,105,LX100..AVT,XL199609-199808

main83861-22150iGX105,SX100199808

main83861-22160iGX10#,JZX100,105..AVT;GX100,JZX100..5F..(TOU,TOUV)199808

main83861-22200iGX100,JZX100..4FC..(TOU,TOUV)199808

main83861-22210iLX100199808-199908

main83861-22240iJZX100..TOUS199808

main83861-22270iGX10#,JZX10#..4FC..(AVT,AVTG)199808

83247BPLATE, METER CIRCUIT, NO.2

main83864-22050iGX100,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL199609-199808

main83864-22170iGX100,JZX100..TOU,TOUS,TOUV199808

83275PLATE,COMPUTER METER CIRCUIT NO.1

main83275-22050iGX10#,JZX100,105,LX100..AVT,TOU,TOUS,TOUV,XL199609

83970BUZZER ASSY, REVERSE WARNING

main83970-20010iJZX105199801-199808

86650GBUZZER ASSY

main86650-12030iGX10#,JZX100,105,LX100,SX100..AVT,RAF,TOU,TOUS,TOUV,XL199609

9009900230

main90099-00230

9009900247

main90099-00247

9009900917

main90099-00917

9009900929

main90099-00929

9015940027

main90159-40027

9356855016

main93568-55016

20 parts on this diagram · 11 diagrams in section
