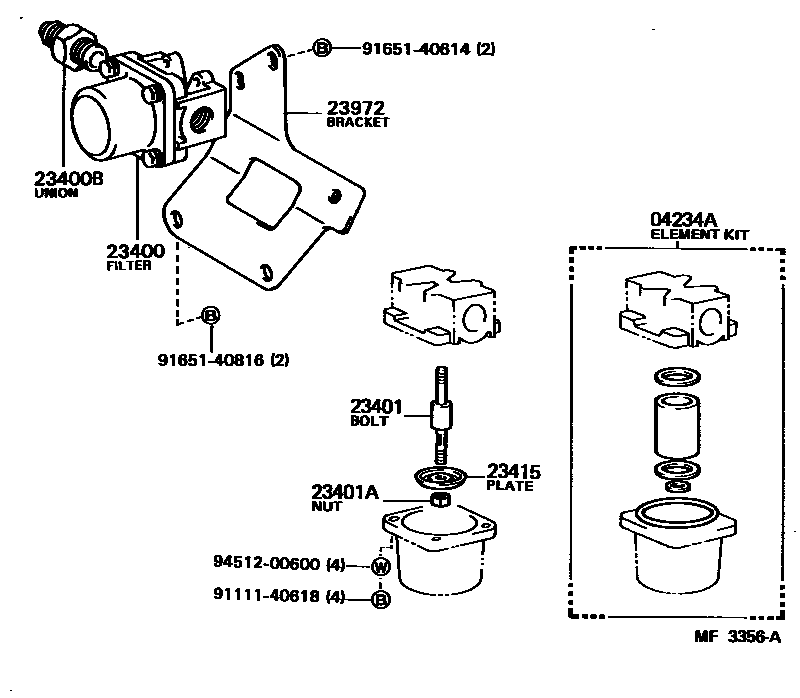

Toyota CHASER — LPG FILTER

04234AELEMENT KIT, LPG

main04234-44012i2YPU,3YPU..YX7#198408-198808

23400FILTER ASSY, LPG

main23400-40024i2YPU,3YPU..YX7#198408-198808

23400BUNION, LPG FILTER INLET

main90404-14064i2YPU,3YPU..YX7#198408-198808

23401BOLT SUB-ASSY, STUD(FOR LPG FILTER)

main23401-40020i2YPU,3YPU..YX7#198408-198808

23401ANUT(FOR LPG FILTER STUD BOLT SET)

main94115-40500i2YPU,3YPU..YX7#198408-198808

23415PLATE, ELEMENT

main23415-40010i2YPU,3YPU..YX7#198408-198808

23972BRACKET, FILTER & SOLENOID VALVE

main23972-72020i2YPU,3YPU..YX7#198408-198808

9111140618

main91111-40618

9165140614

main91651-40614

9165140816

main91651-40816

9451200600

main94512-00600

11 parts on this diagram · 1 diagram in section
