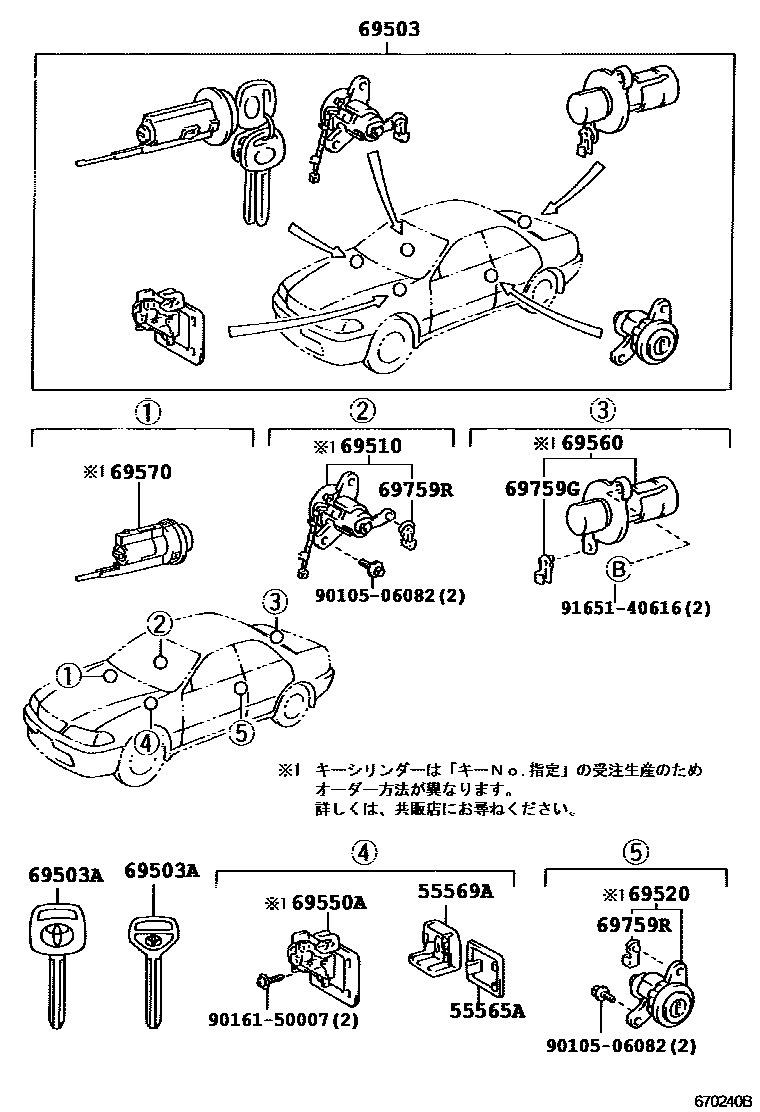

Toyota CHASER — LOCK CYLINDER SET

55565AHANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22020-B3i199609-199808

DK.BLUE GRAY,TRIM1#

main55565-22020-C0i199808

BLACK,TRIM2#

main55565-22020-E5i199808

ORCHID,TRIM4#

main55565-22020-G1i199609

SAGE,TRIM6#

55569ACOVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22030-B3i199609-199808

DK.BLUE GRAY,TRIM1#

main55569-22030-C0i199808

BLACK,TRIM2#

main55569-22030-E5i199609-199808

ORCHID,TRIM4#

main55569-22030-G1i199609

SAGE,TRIM6#

69503CYLINDER SET, LOCK

main69005-2A220i199609-199808

main69005-2A221i199808

69503AKEY, BLANK

main90999-00185×2i199609

main90999-00188i199609

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-22270i199609-199808

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-22230i199609-199808

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-22090i199609-199808

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-22380i199609-199808

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-22110i199609-199808

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080i199609

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-24100i199609

main69759-24110i199609

9010506082

main90105-06082

9016150007

main90161-50007

9165140616

main91651-40616

14 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota CHASER

This section contains 15 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CHASER. Key components include: HANDLE, GLOVE COMPARTMENT DOOR LOCK, COVER, GLOVE COMPARTMENT DOOR LOCK, CYLINDER SET, LOCK, KEY, BLANK, CYLINDER ASSY, FRONT DOOR LOCK, RH.
